COMPONENT
SERVICE-METERS AND GAUGES

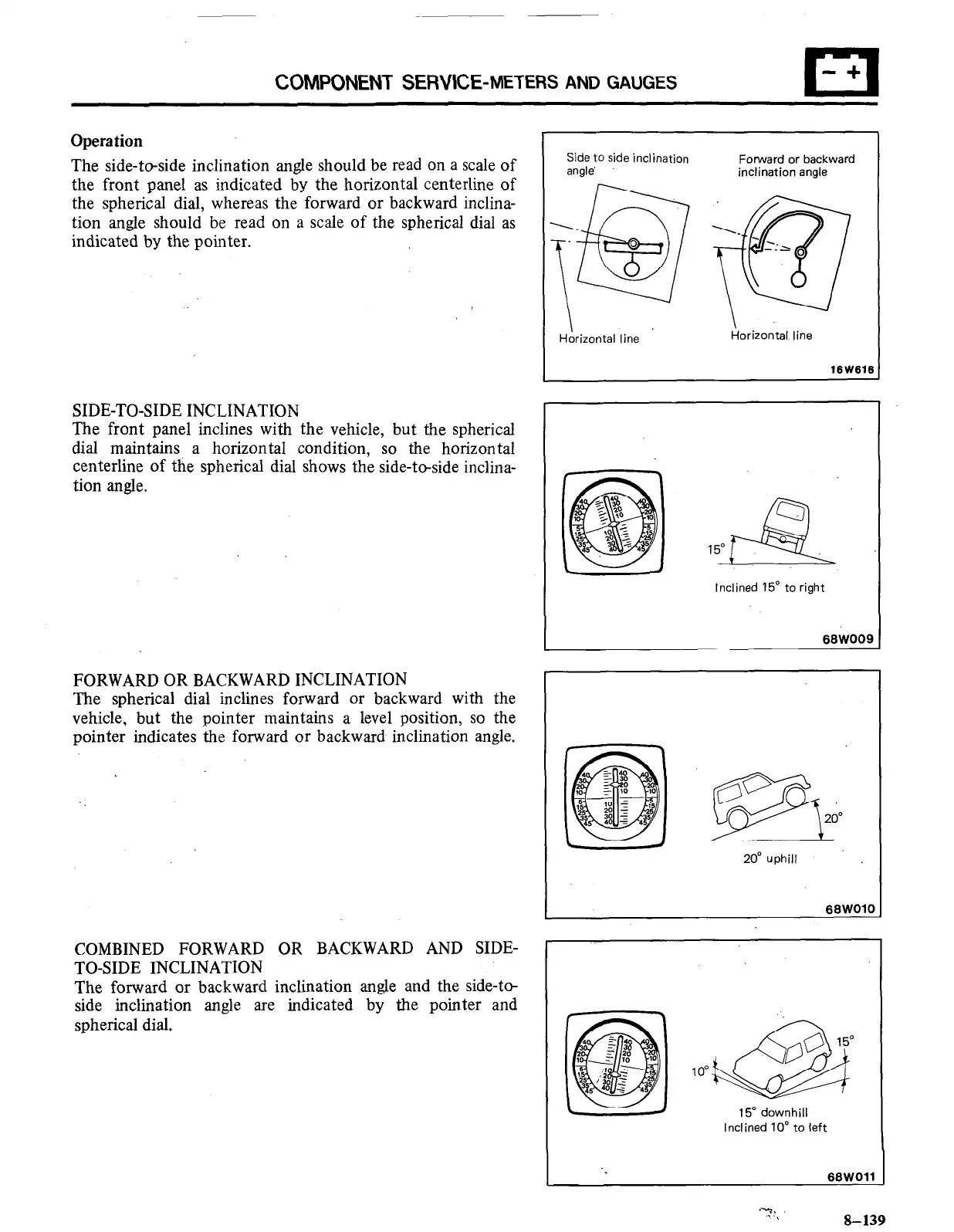

Operation
The side-toside inclination angle should be read on a scale of
the front panel as indicated by the horizontal centerline of
the spherical dial, whereas the forward or backward inclina-
tion angle should be read on a scale of the spherical dial as
indicated by the pointer.
SIDE-TO-SIDE INCLINATION
The front panel inclines with the vehicle, but the spherical
dial maintains a horizontal condition, so the horizontal
centerline of the spherical dial shows the side-to-side inclina-
tion angle.
FORWARD OR BACKWARD INCLINATION
The spherical dial inclines forward or backward with the
vehicle, but the pointer maintains a level position, so the
pointer indicates the forward or backward inclination angle.
COMBINED FORWARD OR BACKWARD AND SIDE-
TO-SIDE INCLINATION
The forward or backward inclination angle and the side-to-
side inclination angle are indicated by the pointer and
spherical dial.
Side to side inclination
Forward or backward
angle’
inclination angle
f&J ifi?JJ
Horizontal line
Horizontal line
I
16W616
Inclined 15” to right
68WOOE
20” uphill
15” downhill
Inclined IO” to left
