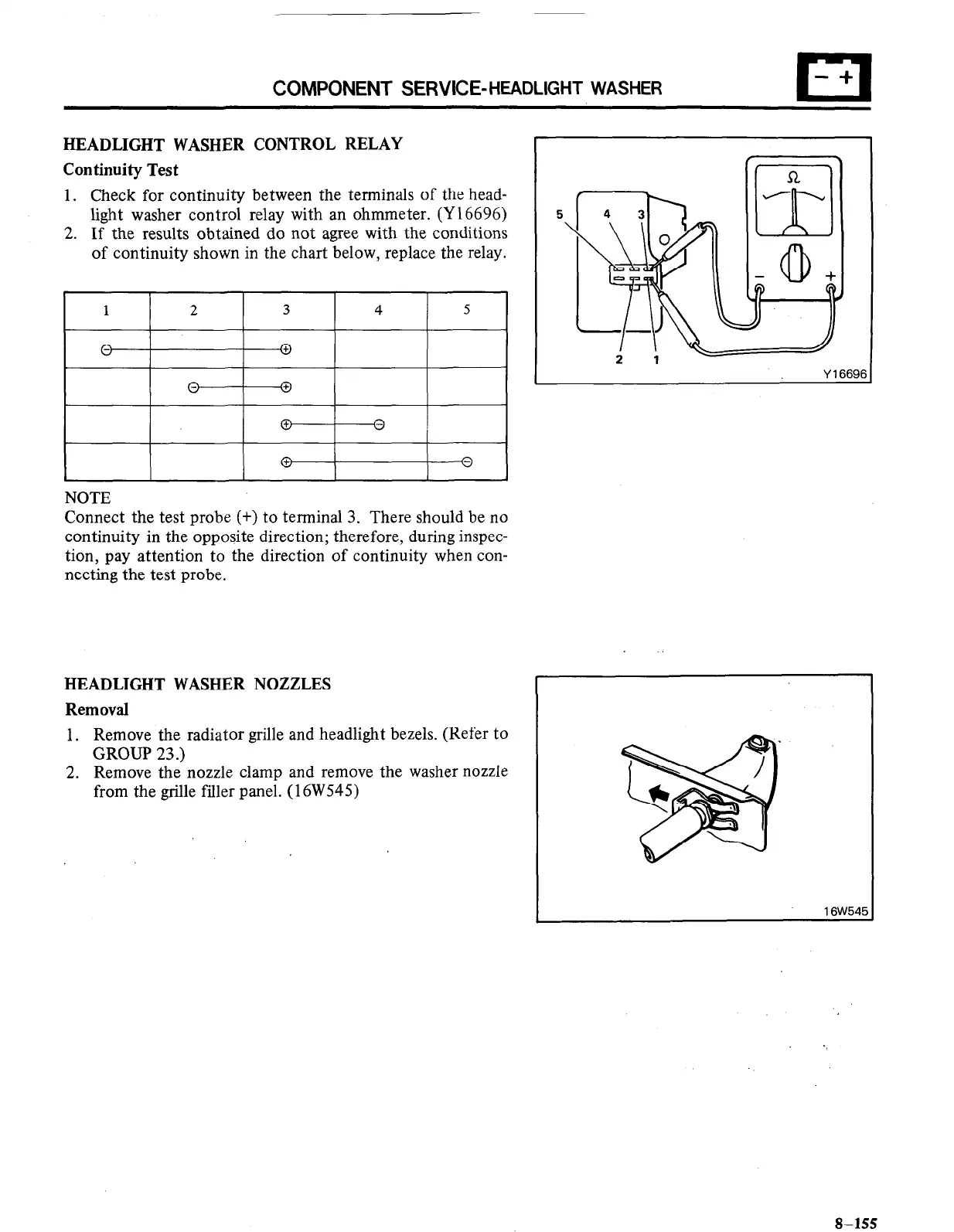

COMPONENT SERVICE-HEADLIGHT WASHER
HEADLIGHT WASHER CONTROL RELAY
Continuity Test
1. Check for continuity between the terminals of the head-
light washer control relay with an ohmmeter. (Y 16696)
2. If the results obtained do not agree with the conditions
of continuity shown in the chart-below, replace the relay.
NOTE
Connect the test probe (+) to terminal 3. There should be no
continuity in the opposite direction; therefore, during inspec-
tion, pay attention to the direction of continuity when con-
necting the test probe.
HEADLIGHT WASHER NOZZLES
Removal
1. Remove the radiator grille and headlight bezels. (Refer to
GROUP 23.)
2. Remove the nozzle clamp and remove the washer nozzle
from the grille filler panel. (16W545)
16W54E
8-155
