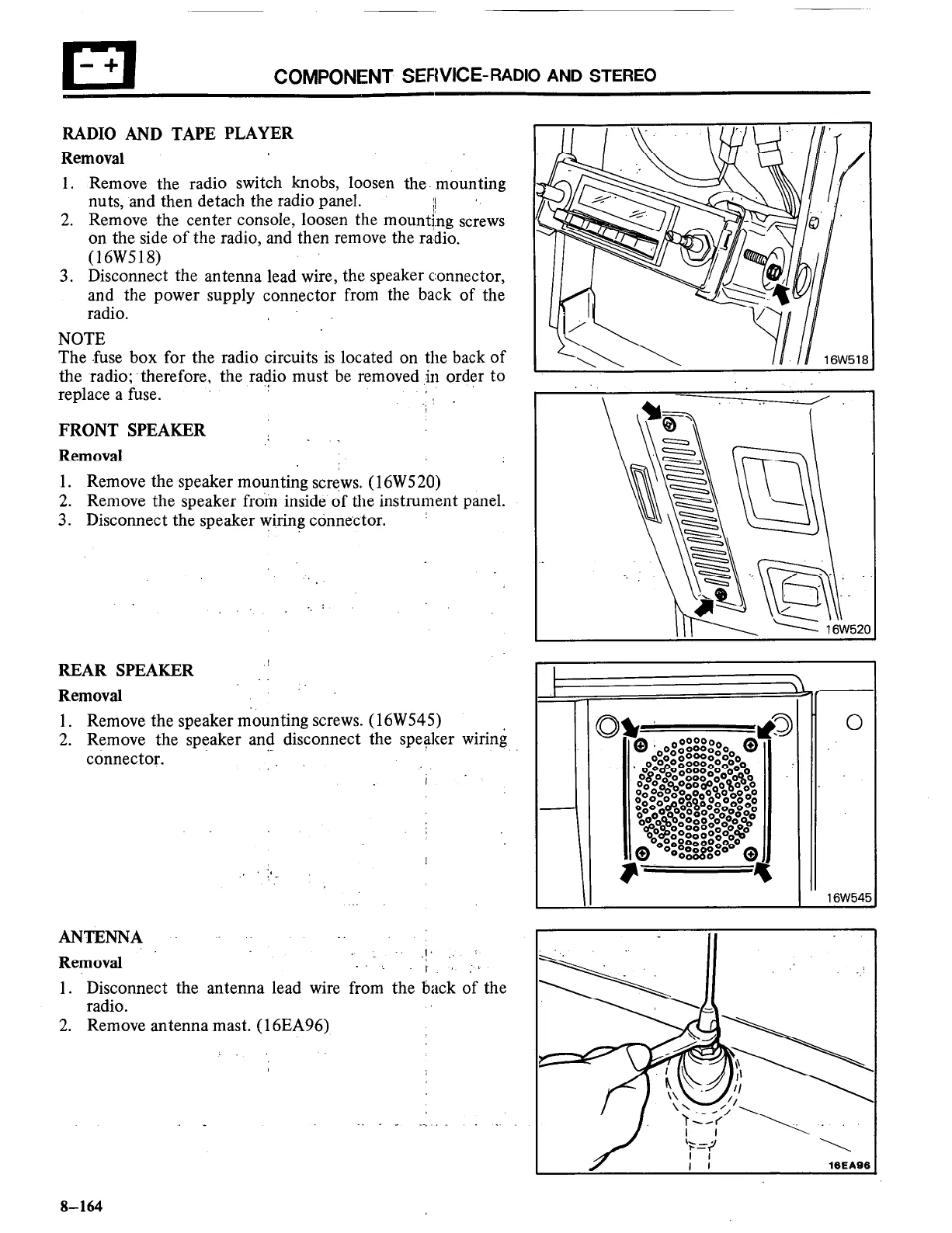

COMPONENT SERVICE-RADIO AND STEREO
RADIO AND TAPE PLAYER
Removal
1. Remove the radio switch knobs, loosen the. mounting
nuts, and then detach the radio panel.
‘I
2. Remove the center console, loosen the mountmg screws
on the side of the radio, and then remove the radio.
(16W518)
3.
Disconnect the antenna lead wire, the speaker connector,
and the power supply connector from the back of the
radio.
NOTE
The .fuse box for the radio circuits is located on the back of
the radio; -therefore, the radio must be removed ,in order to
replace a fuse. .’
.
1
FRONT SPEAKER ] _ _
Removal
1.
Remove the speaker mounting screws. (16W520)
2. Remove the speaker from inside of the instrument panel.
3. Disconnect the speaker wiring connector. ’
REAR SPEAKER ..;
Removal
1. Remove the speaker mounting screws. (16W545)
2. Remove the speaker and disconnect the speaker wiring
connector.
,--
.’
I .
:‘1’-
ANTENNA
Removal
-. ,!. _. i
. . .
t.’ ;’
1. Disconnect the antenna lead wire from the back of the
radio.
2. Remove antenna mast. (16EA96)
8-164
r
I
I 16W54E
16EAS6
