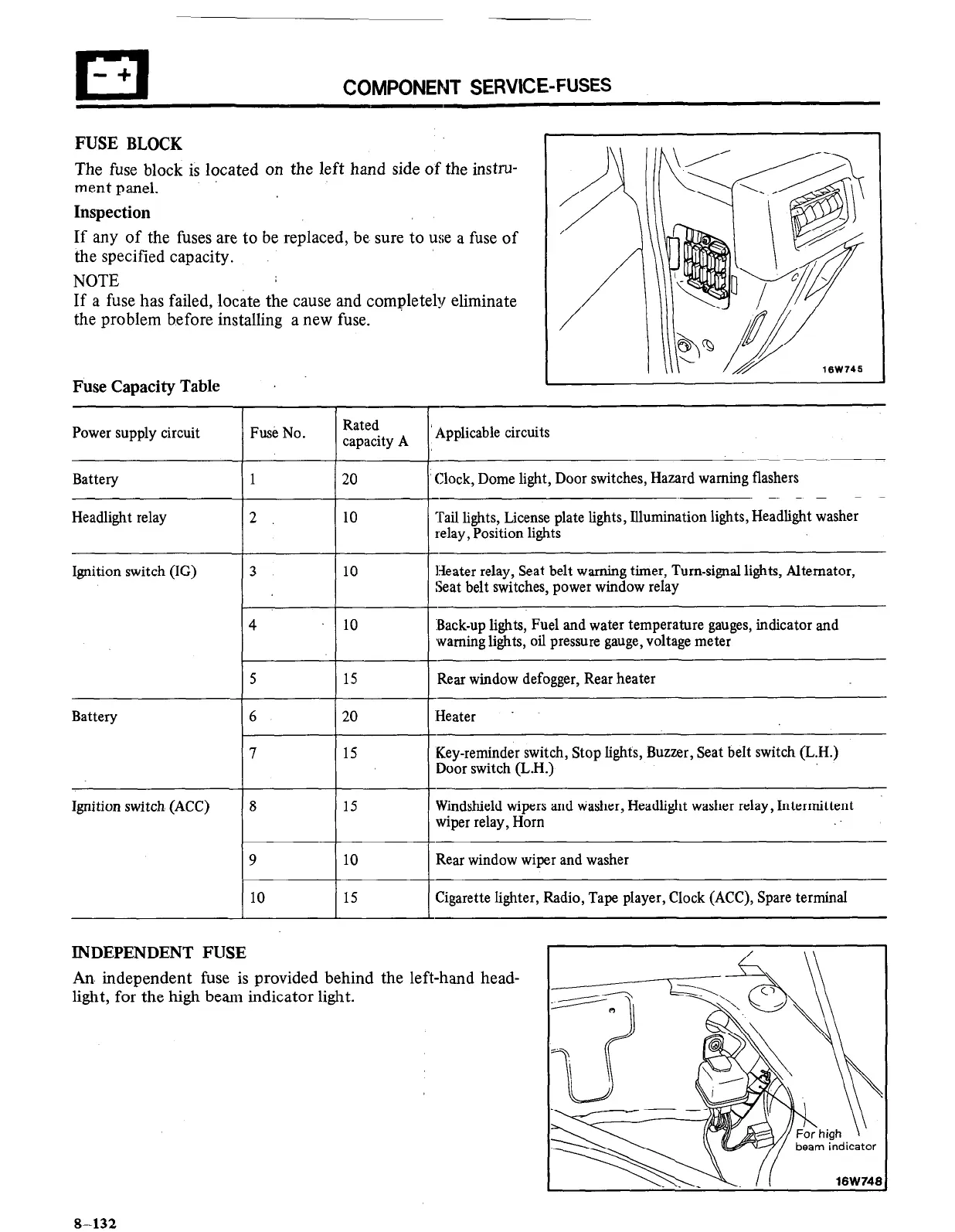

COMPONENT SERVICE-FUSES
FUSE BLOCK
The fuse block is located on the left hand side of the instru-
ment panel.
Inspection
If any of the fuses are to be replaced, be. sure to use a fuse of
the specified capacity.
NOTE
If a fuse has failed, locate the cause and completely eliminate
the problem before installing a new fuse.
Fuse Capacity Table
Power supply circuit
Battery
Headlight relay
Ignition switch (IG)
Battery
Ignition switch (ACC)
--r
-1pplicable circuits
1
2
3
Tail lights, License plate lights, Illumination lights, Headlight washer
relay, Position lights
Heater relay, Seat belt warning timer, Turn-signal lights, Alternator,
Seat belt switches, power window relay
lights, Fuel and water temperature gauges, indicator and
,waming lights, oil pressure gauge, voltage meter
Rear window defogger, Rear heater
switch, Stop lights, Buzzer, Seat belt switch (L.H.)
Door switch (L.H.)
Windshield wipers and washer, Headlight washer relay, Intermittent
Rear window wiper and washer
Cigarette lighter, Radio, Tape player, Clock (ACC), Spare terminal
INDEPENDENT FUSE
An. independent fuse is provided behind the left-hand head-
light, for the high beam indicator light.
beam indicator
16W746
8-132
