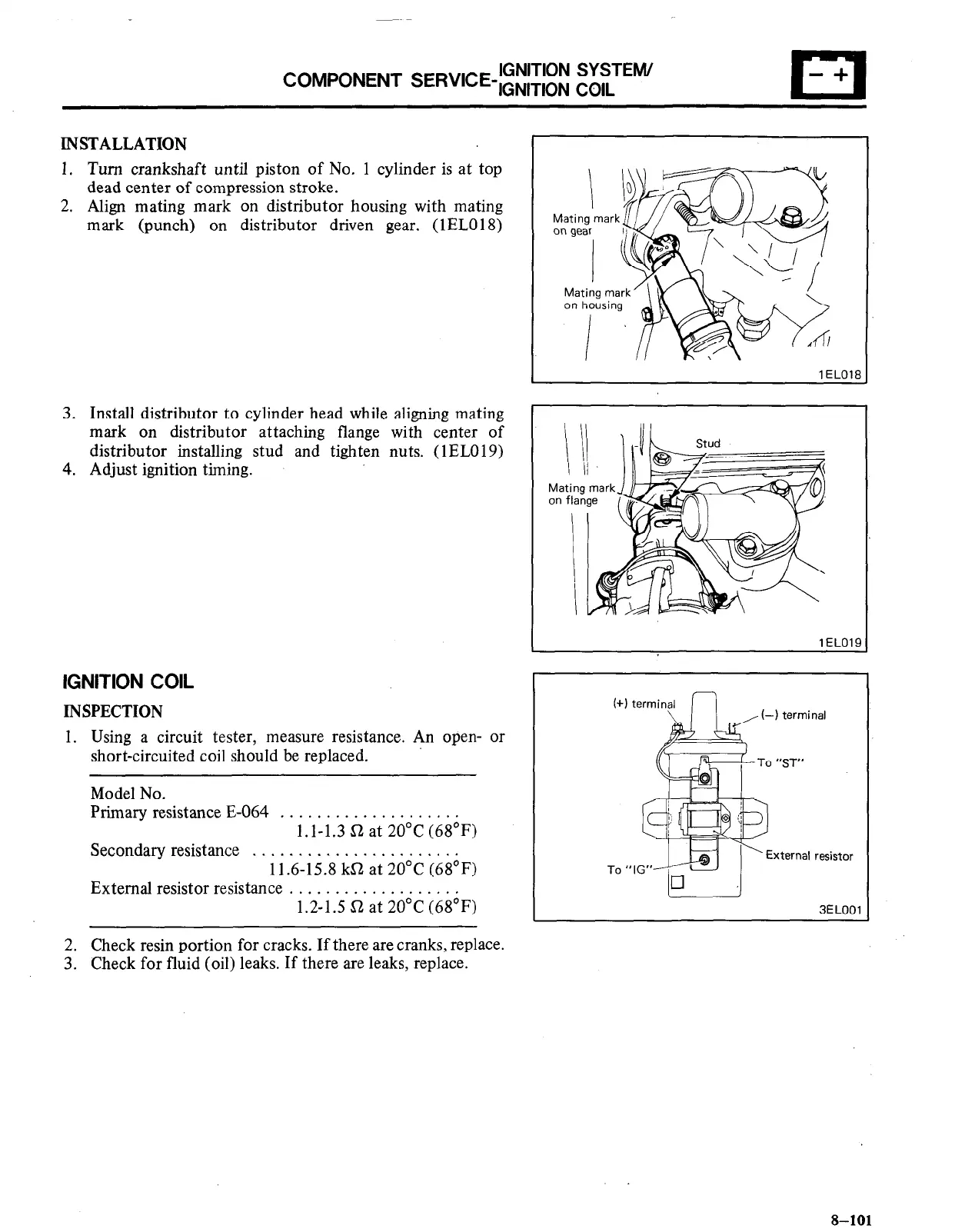

Mitsubishi Pajero - IGNITION COIL INSPECTION

INSTALLATION
1. Turn crankshaft until piston of No. 1 cylinder is at top
dead center of compression stroke.
2. Align mating mark on distributor housing with mating
mark (punch) on distributor driven gear. (lEL0 18)
3. Install distributor to cylinder head while aligning mating
mark on distributor attaching flange with center of
distributor installing stud and tighten nuts. (lELO19)
4. Adjust ignition timing.
IGNITION COIL
INSPECTION
1. Using a circuit tester, measure resistance. An open- or
short-circuited coil should be replaced.
Model No.
Primary resistance E-064 . . . . . . . . . . . . . . . . . . . .
1.1-1.3 a at 20°C (68’F)
Secondary resistance
. . . . . . . . . . . . . . . . . . . . . . .
11.6-15.8 kn at 20°C (68’F)
External resistor resistance . . . . . . . . . . . . . . . . . . .
1.2-1.5 G! at 20°C (68’F)
(+I terminal
d
f-1 terminal
resistor
3E LOO’
2. Check resin portion for cracks. If there are cranks, replace.
3. Check for fluid (oil) leaks. If there are leaks, replace.
