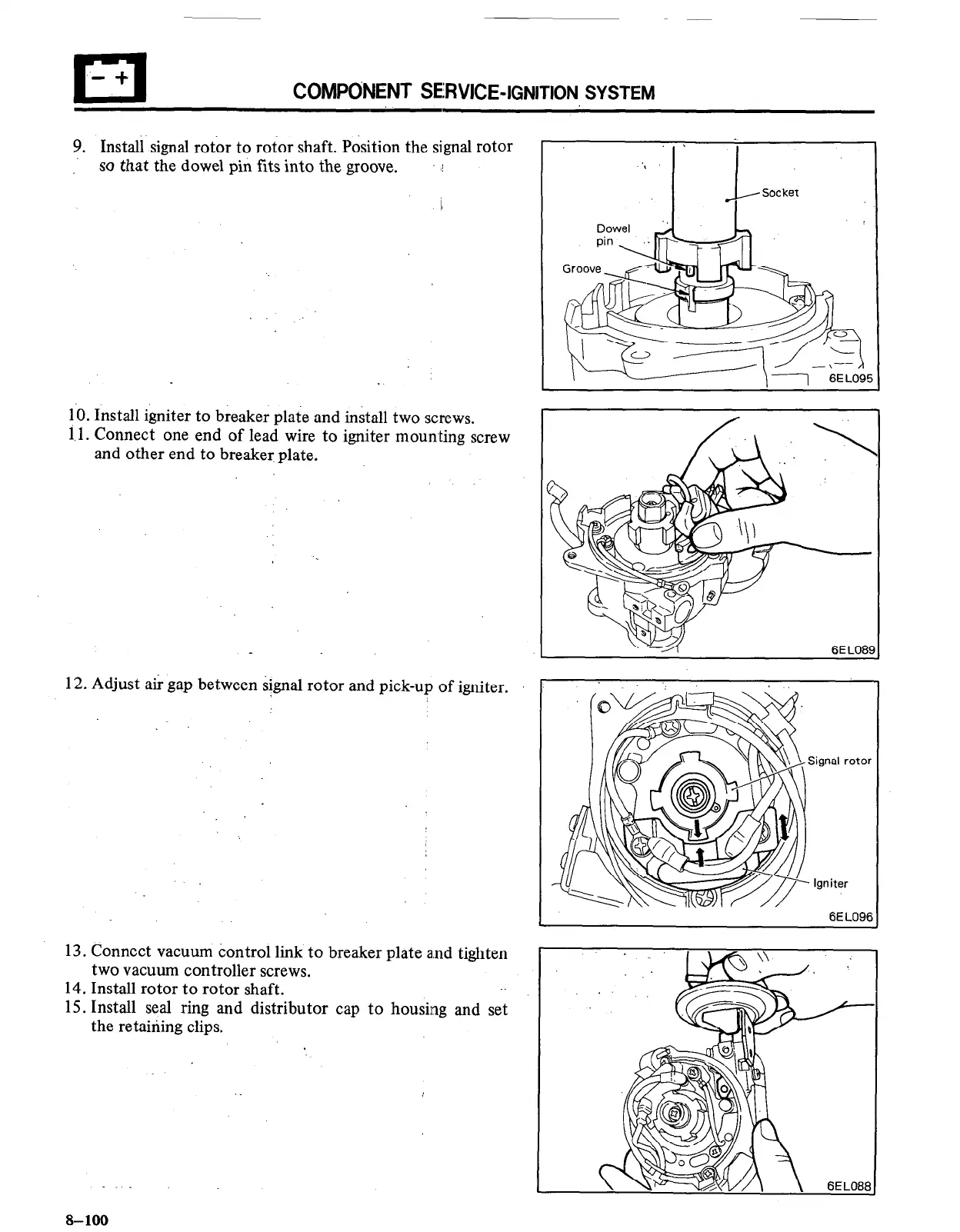

COMPONENT SERVICE-IGNITION SYSTEM
9. Install. signal rotor to rotor shaft. Position the signal rotor
so that the dowel pin fits into the groove.
(
10. Install igniter to breaker plate and install two screws.
1.1. Connect one end of lead wire to igniter mounting screw
and other end to breaker plate.
12. Adjust air gap between signal rotor and pick-up of igniter.
1 6EL09E
13. Connect vacuum control link to breaker plate and tighten
two vacuum controller screws.
14. Install rotor to rotor shaft.
,.
15. Install seal ring and distributor cap to housing and set
the retaining clips.
8-100
