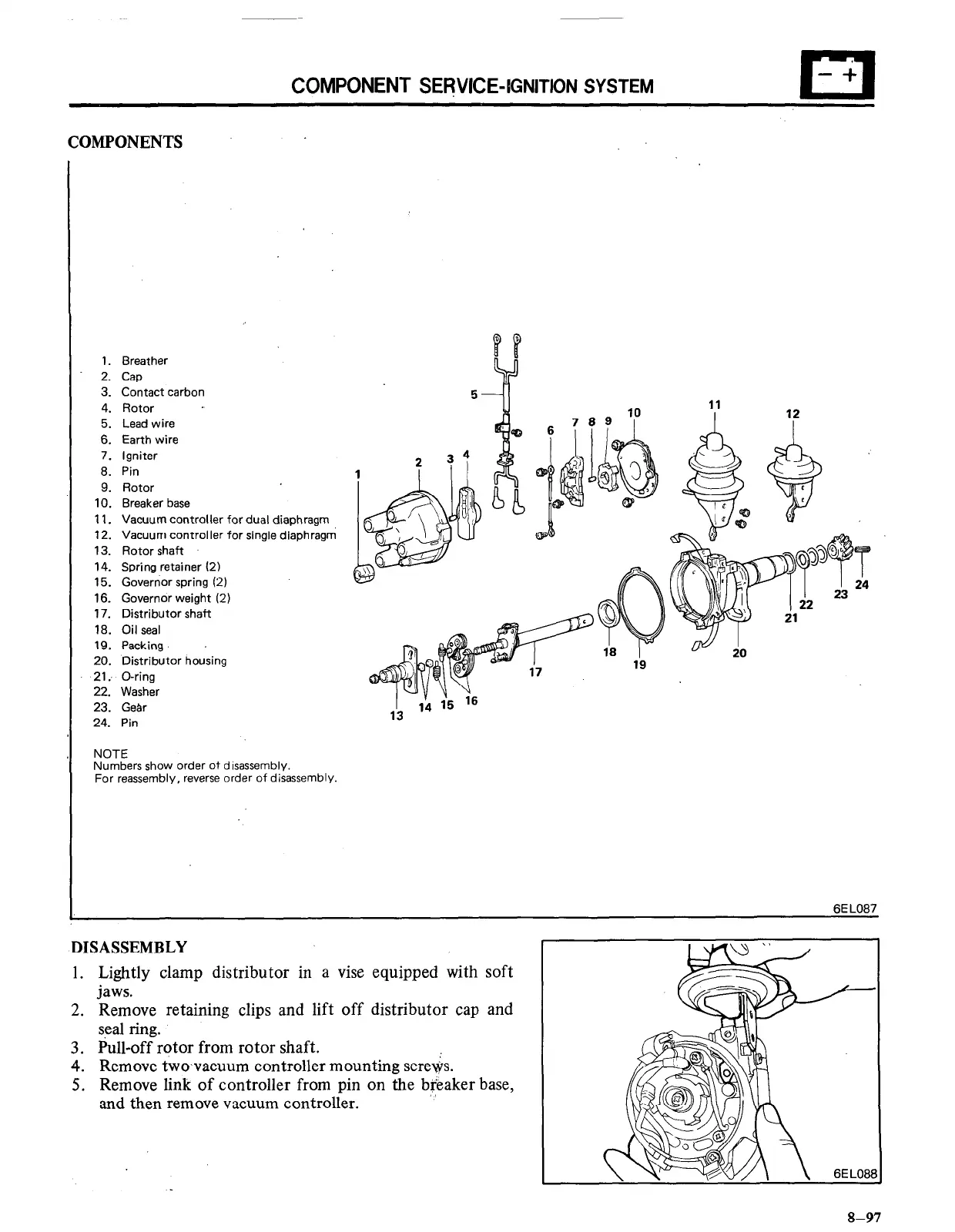

COMPONENT SEl?VlCE-IGNITION
SYSTEM
COMPONENTS
1. Breather
2. Cap
3. Contact carbon
4. Rotor
5.
Lead wire
6. Earth wire
7. Igniter
8. Pin
9. Rotor
10. Breaker base
11.
Vacuum controller for dual diaphragm
12. Vacuum controller for single diaphragm
13. Rotor shaft
14. Spring retainer (2)
15. Governor spring (2)
16. Governor weight (2)
17. Distributor shaft
18. Oil seal
19. Packing I
20.
Distributor housing
21 : O-ring
22. Washer
23. Gear
24. Pin
T
24
NOTE
Numbers show order of disassembly.
For reassembly, reverse order of disassembly.
6E LO87
DISASSEMBLY
r
1. Lightly clamp distributor in a vise equipped with soft
jaws.
2. Remove retaining clips and lift off distributor cap and
seal ring.
3. Pull-off rotor from rotor shaft.
4.
Remove two,vacuum controller mounting screqs.
5.
Remove link of controller from pin on the bf&aker base,
and then remove vacuum controller.
8-97
