Mitsubishi Pajero - Fuel Gauge Unit; Torque Specifications

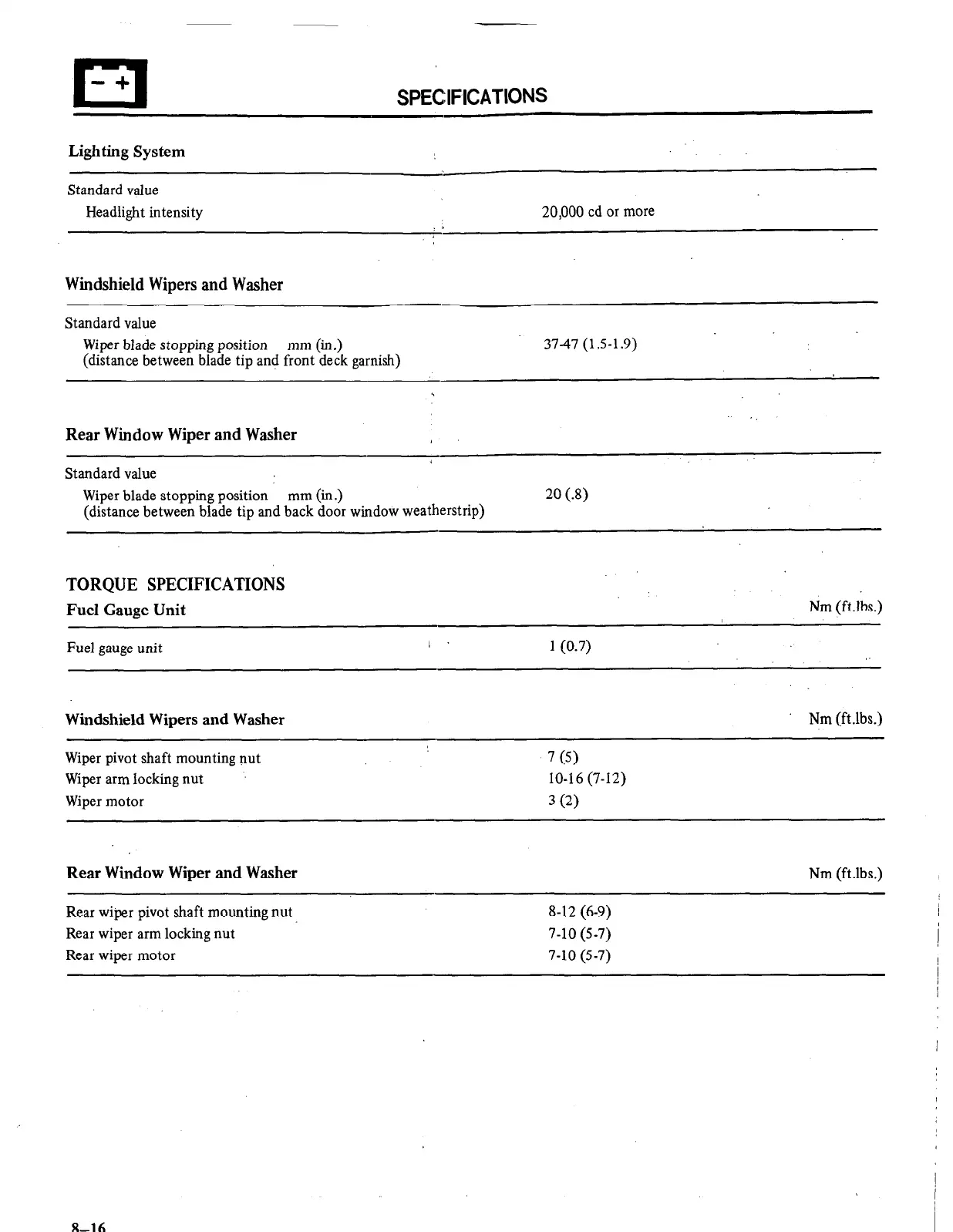

SPECIFICATIONS
Lighting System
Standard value
Headlight intensity 20,000 cd or more
Windshield Wipers and Washer
Standard value
Wiper blade stopping position mm (in.)
(distance between blade tip and front deck garnish)
37-47 (151.9)
Rear Window Wiper and Washer
Standard value
1
Wiper blade stopping position mm (in .)
(distance between blade tip and back door window weatherstrip)
20 (.8)
TORQUE SPECIFICATIONS
Fuel Gauge Unit
Nm (ft.lbs.)
Fuel gauge unit
1
1 (0.7)
Windshield Wipers and Washer
Nm (ft.lbs.)
Wiper pivot shaft mounting nut
Wiper arm locking nut
Wiper motor
7 (5)
IO-16 (7-12)
3 (2)
Rear Window Wiper and Washer Nm (ft.lbs.)
Rear wiper pivot shaft mounting nut
Rear wiper arm locking nut
Rear wiper motor
8-12 (6-9)
7-10 (5-7)
7-10 (S-7)
8-16
