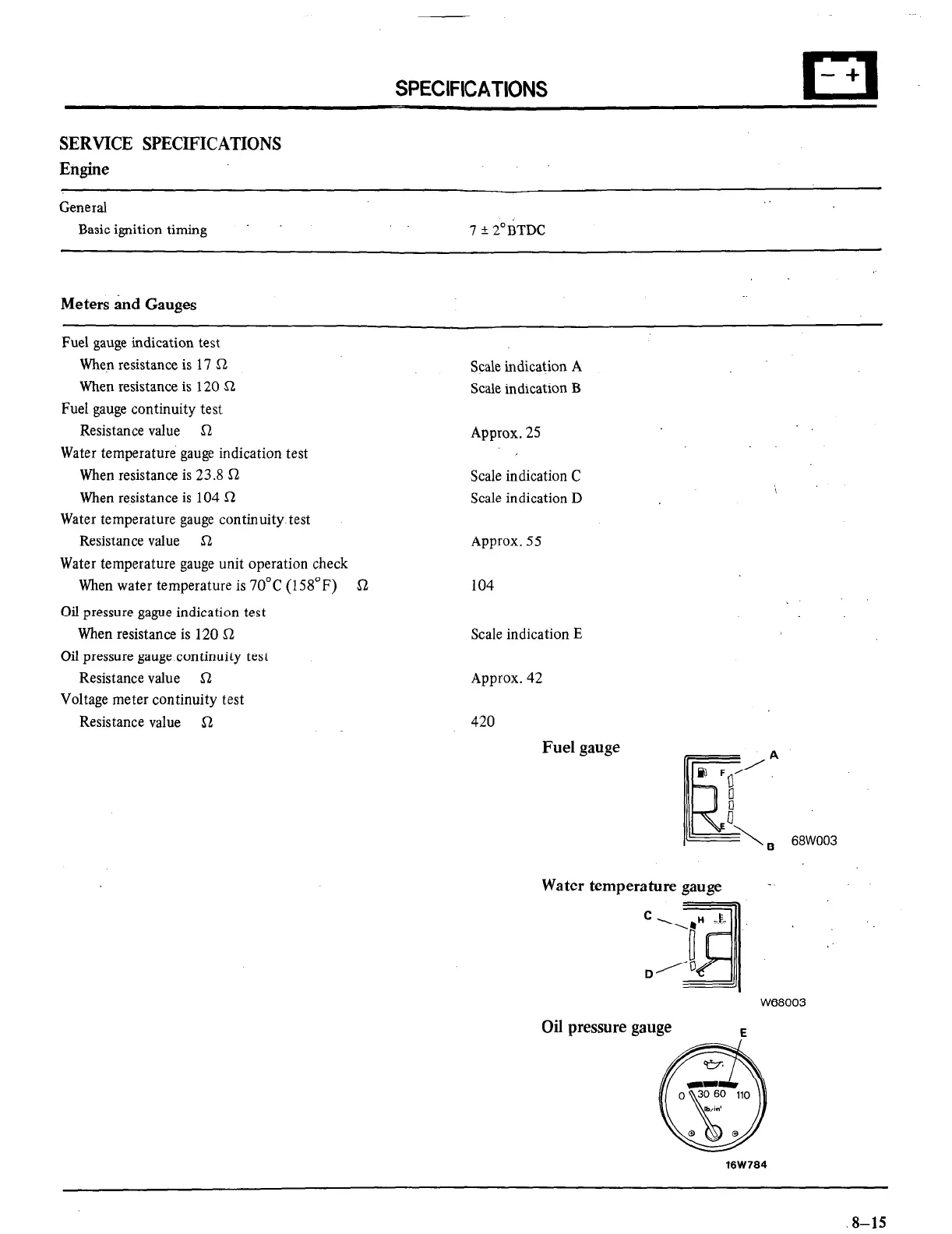

SPECIFICATIONS
cl
-+
SERVICE SPECIFICATIONS
Engine
General
Basic ignition timing
7 f 2”BTDC
Meters and Gauges
Fuel gauge indication test
When resistance is 17 s2
Scale indication A
When resistance is 120 Q
Scale indication B
Fuel gauge continuity test
Resistance value R
Approx. 25
Water temperature gauge indication test
When resistance is 23.8 a
Scale indication C
When resistance is 104 Q Scale indication D
\
Water temperature gauge continuity.test
Resistance value 52 Approx. 55
Water temperature gauge unit operation check
When water temperature is 70°C (158’F) SI 104
Oil pressure gague indication test
When resistance is 120 s2 Scale indication E
Oil pressure gauge continuity test
Resistance value fi Approx. 42
Voltage meter continuity test
Resistance value 52
420
Fuel gauge
.A
68WOO3
Water temperature gauge
W68003
Oil pressure gauge
161764
I&15
