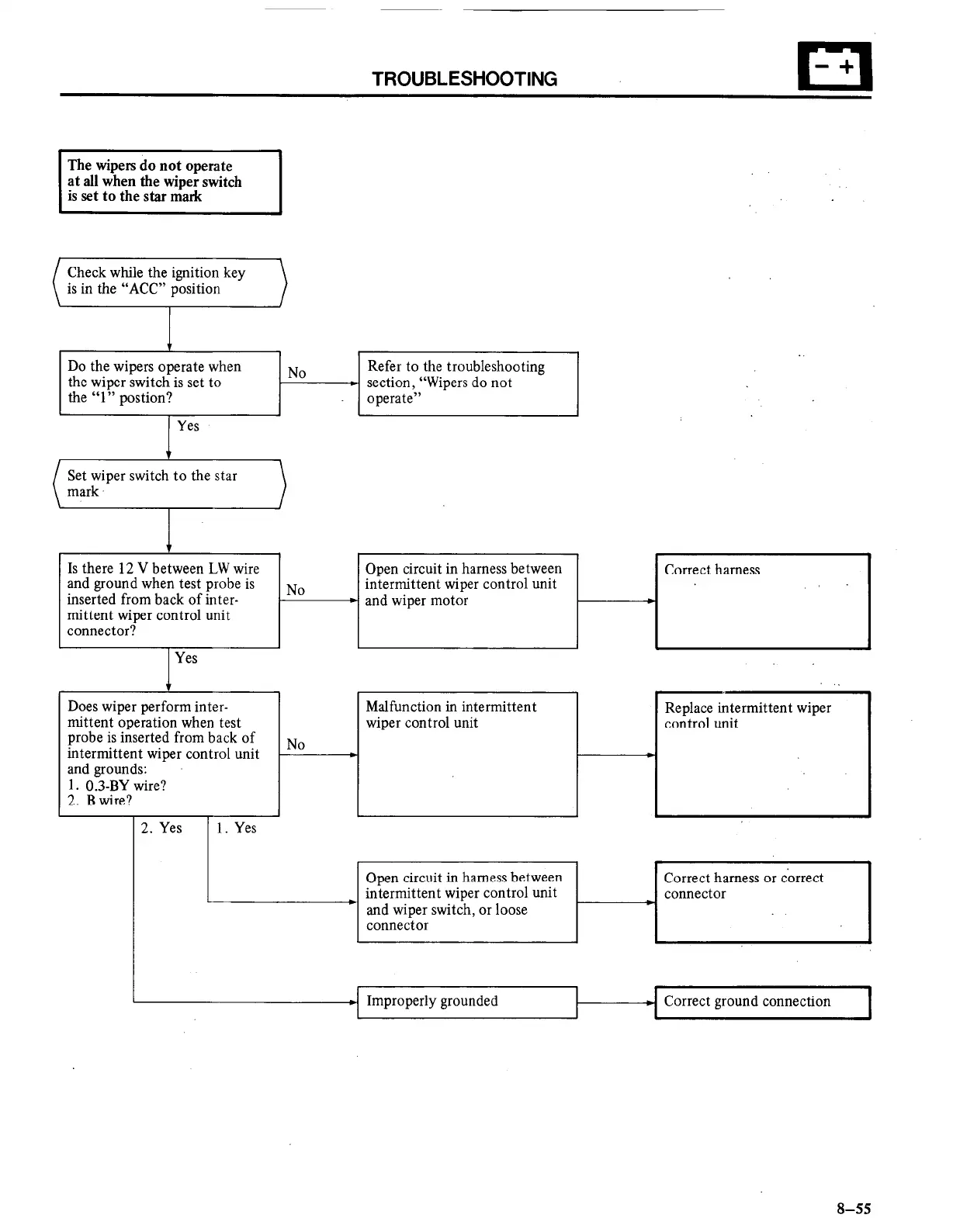

TROUBLESHOOTING
Check while the ignition key
is in the “ACC” position
Do the wipers operate when
the wiper switch is set to
the “1” postion?
Yes
No
Refer to the troubleshooting
c section, “Wipers do not
operate”
Set wiper switch to the star
mark.
Is there 12 V between LW wire
and ground when test probe is
inserted from back of inter-
mittent wiper control unit
connector?
No
.
J’“”
Does wiper perform inter-
mittent operation when test
probe is inserted from back of
intermittent wiper control unit
No
.
and grounds: -
1. 0.3-BY wire?
2. B wire?
I
I
2. Yes 1. Yes
Open circuit in harness between Correct harness
intermittent wiper control unit
and wiper motor
c
I
I
Malfunction in intermittent
wiper control unit
-I
-
I
Replace intermittent wiper
control unit
1
I
Open circuit in harness between
intermittent wiper control unit
and wiper switch, or loose
connector
t
Correct harness or correct
1
1’“‘““““’
Improperly grounded Correct ground connection
I
8-55
