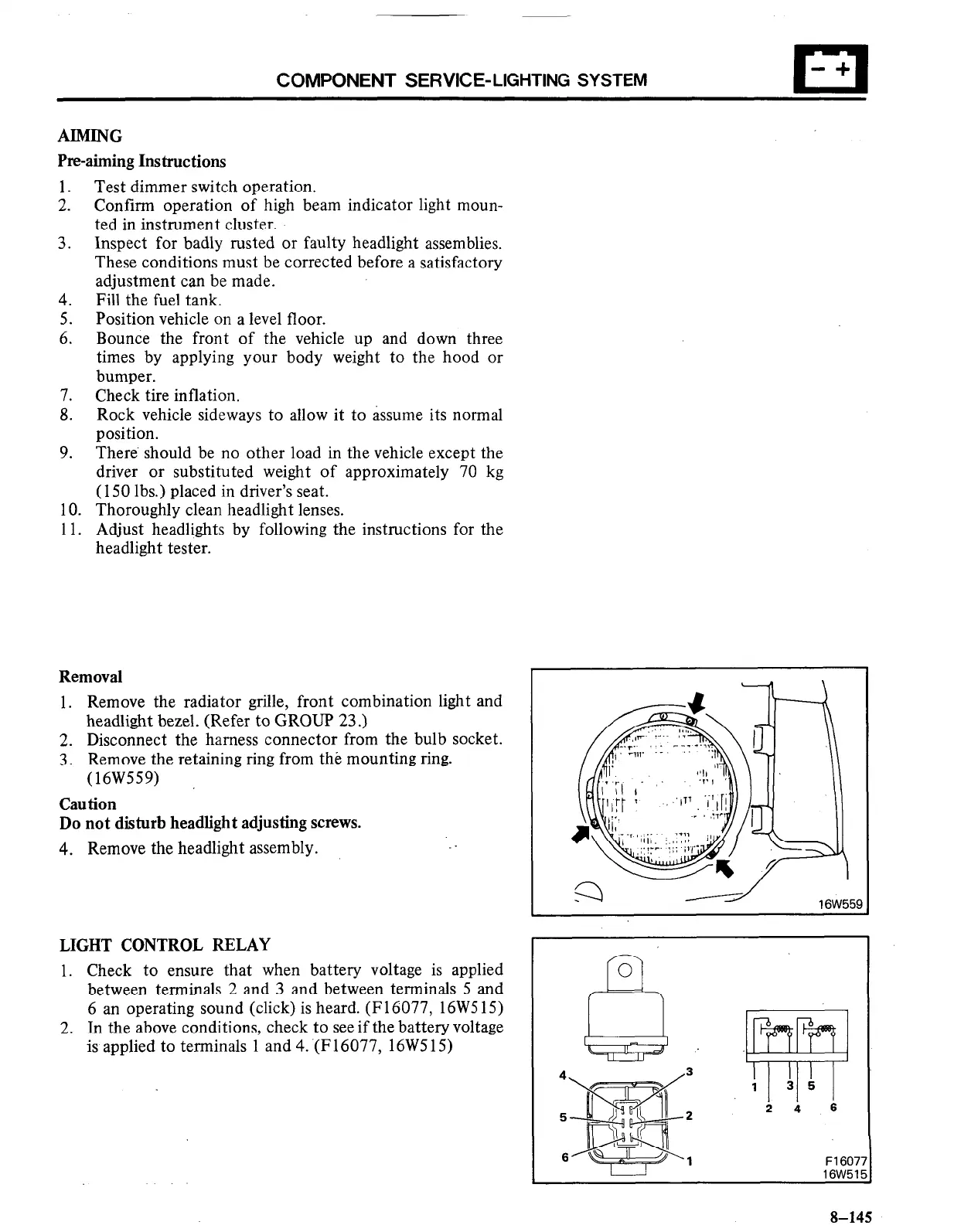

COMPONENT SERVICE-LIGHTING SYSTEM
AIMING
Pre-aiming Instructions
1.
2.
3.
4.
5.
6.
Test dimmer switch operation.
Confirm operation of high beam indicator light moun-
ted in instrument cluster.
Inspect for badly rusted or faulty headlight assemblies.
These conditions must be corrected before a satisfactory
adjustment can be made.
Fill the fuel tank.
7.
8.
9.
10.
11.
Position vehicle on a level floor.
Bounce the front of the vehicle up and down three
times by applying your body weight to the hood or
bumper.
Check tire inflation.
Rock vehicle sideways to allow it to assume its normal
position.
There. should be no other load in the vehicle except the
driver or substituted weight of approximately 70 kg
(150 lbs.) placed in driver’s seat.
Thoroughly clean headlight lenses.
Adjust headlights by following the instructions for the
headlight tester.
Removal
1. Remove the radiator grille, front combination light and
headlight bezel. (Refer to GROUP 23.)
2. Disconnect the harness connector from the bulb socket.
3. Remove the retaining ring from the mounting ring.
(16W559)
Caution
Do not disturb headlight adjusting screws.
4. Remove the headlight assembly.
LIGHT CONTROL RELAY
1. Check to ensure that when battery voltage is applied
between terminals 2 and 3 and between terminals 5 and
6 an operating sound (click) is heard. (F16077, 16W515)
2. In the above conditions, check to see if the battery voltage
is applied to terminals 1 and 4. (F16077, 16W5 15)
16W555
4
3
5
2
6
1
24 6
F1607; 7
1 G\A/Fi 1 c
5
S-145
