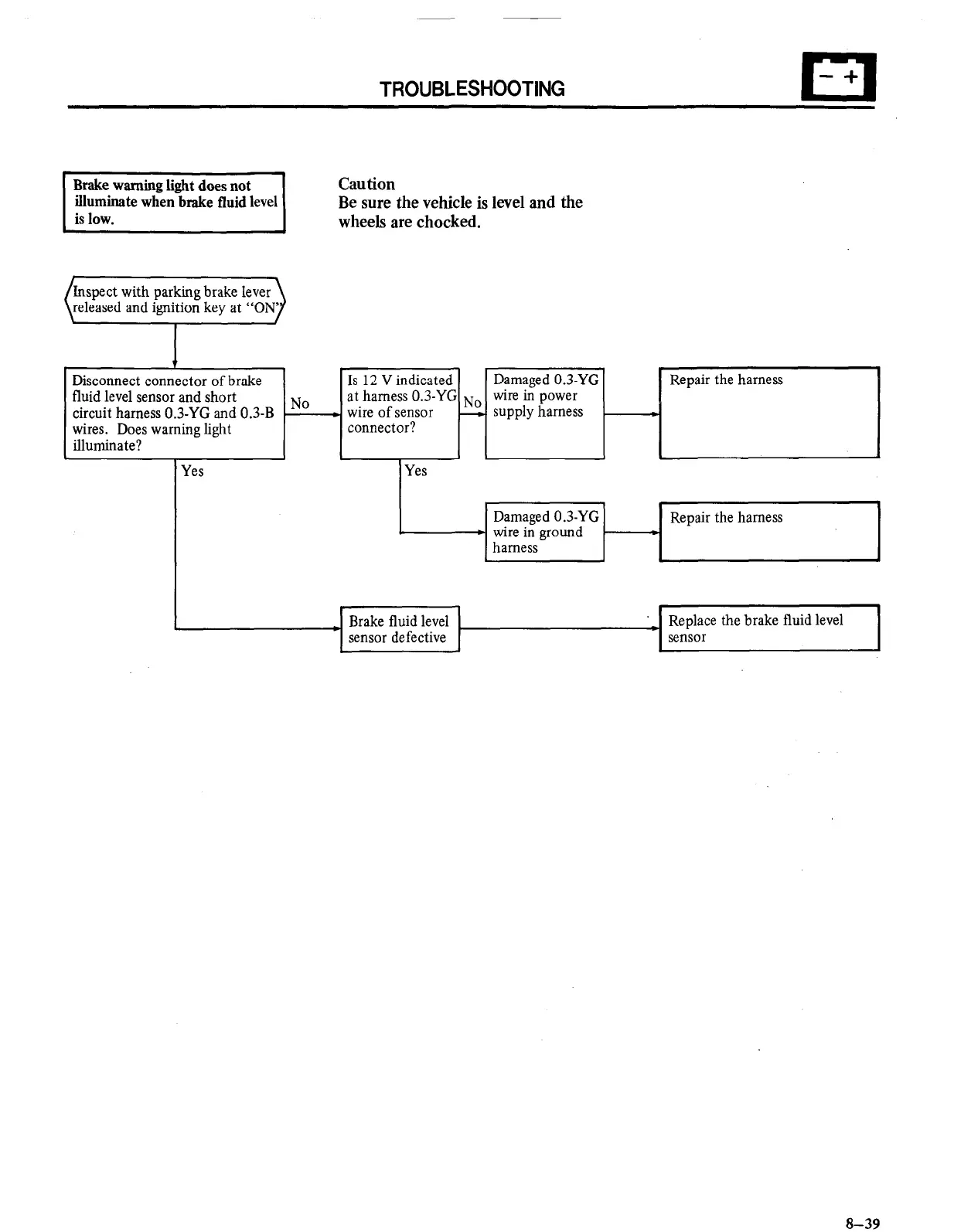

TROUBLESHOOTING
Brake warning light does not
illuminate when brake fluid level
Caution
Be sure the vehicle is level and the
is low.
I
wheels are chocked.
Inspect with parking brake lever
(T)
Disconnect connector of brake
fluid level sensor and short
circuit harness 0.3-YG and 0.3-B
wires. Does warning light
illuminate?
I-.
Yes
Is 12 V indicated
at harness 0.3-Y(
wire of sensor
connector?
I
Yes
Damaged 0.3-YG
* wire in ground
harness
Repair the harness
w
c Brake fluid level
Replace the brake fluid level
sensor defective
sensor
A
8-39
To Next Page
