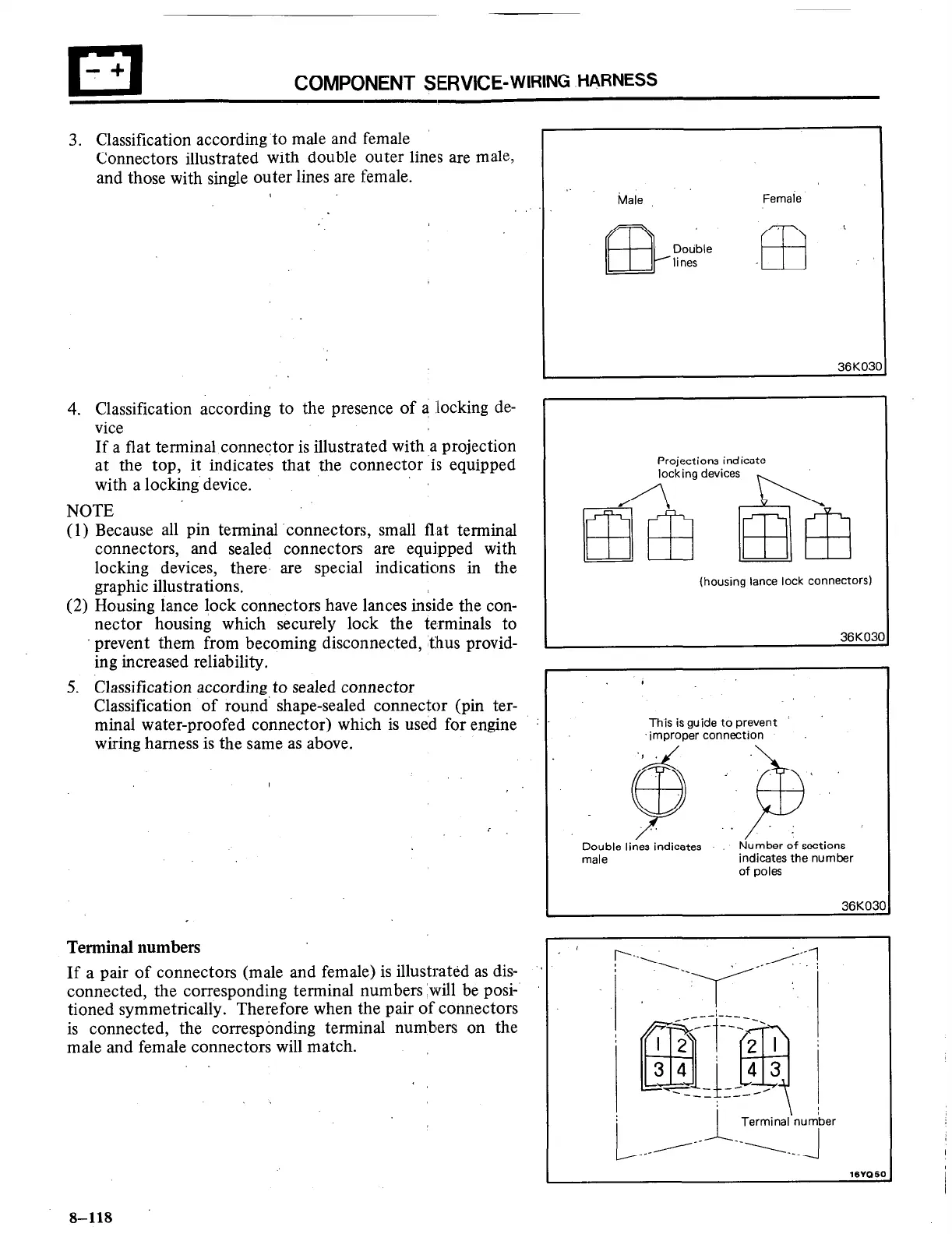

COMPONENT
SERVICE-WIRING HARNESS
3. Classification according.to male and female
Connectors illustrated with double outer lines are male,
and those with single outer lines are female.
4. Classification according to the presence of a locking de-
vice
If a flat terminal connector is illustrated with ,a projection
at the top, it indicates that the connector is equipped
with a locking’device.
NOTE
(1) Because all pin terminal .connectors, small flat terminal
connectors, and sealed connectors are equipped with
locking devices, there, are special indications in the
graphic illustrations.
(2) Housing lance lock connectors have lances inside the con-
nector housing which securely lock the terminals to
prevent them from becoming disconnected, ‘thus provid-
ing increased reliability.
5. Classification according to sealed connector
Classification of round shape-sealed connector (pin ter-
minal water-proofed connector) which is used for engine
wiring harness is the same as above.
Terminal numbers
If a pair of connectors (male and female) is illustrated as dis-
connected, the corresponding terminal numbers ‘vlrill be posi-
tioned symmetrically. Therefore when the pair of connectors
is connected, the corresponding terminal numbers on the
male and female connectors will match.
,.
Male
Female
I
36KO3l
Projections indicate
locking devices h
Projections indicate
locking devices
ELl?G!b E!iicfQ
(housing lance lock connectors) (housing lance lock connectors)
I
.?tiKO?A
This is guide to prevent
improper connection
Double lines indicates Number of sections
male
indicates the number
of poles
I
36K03C
8-118
To Next Page
