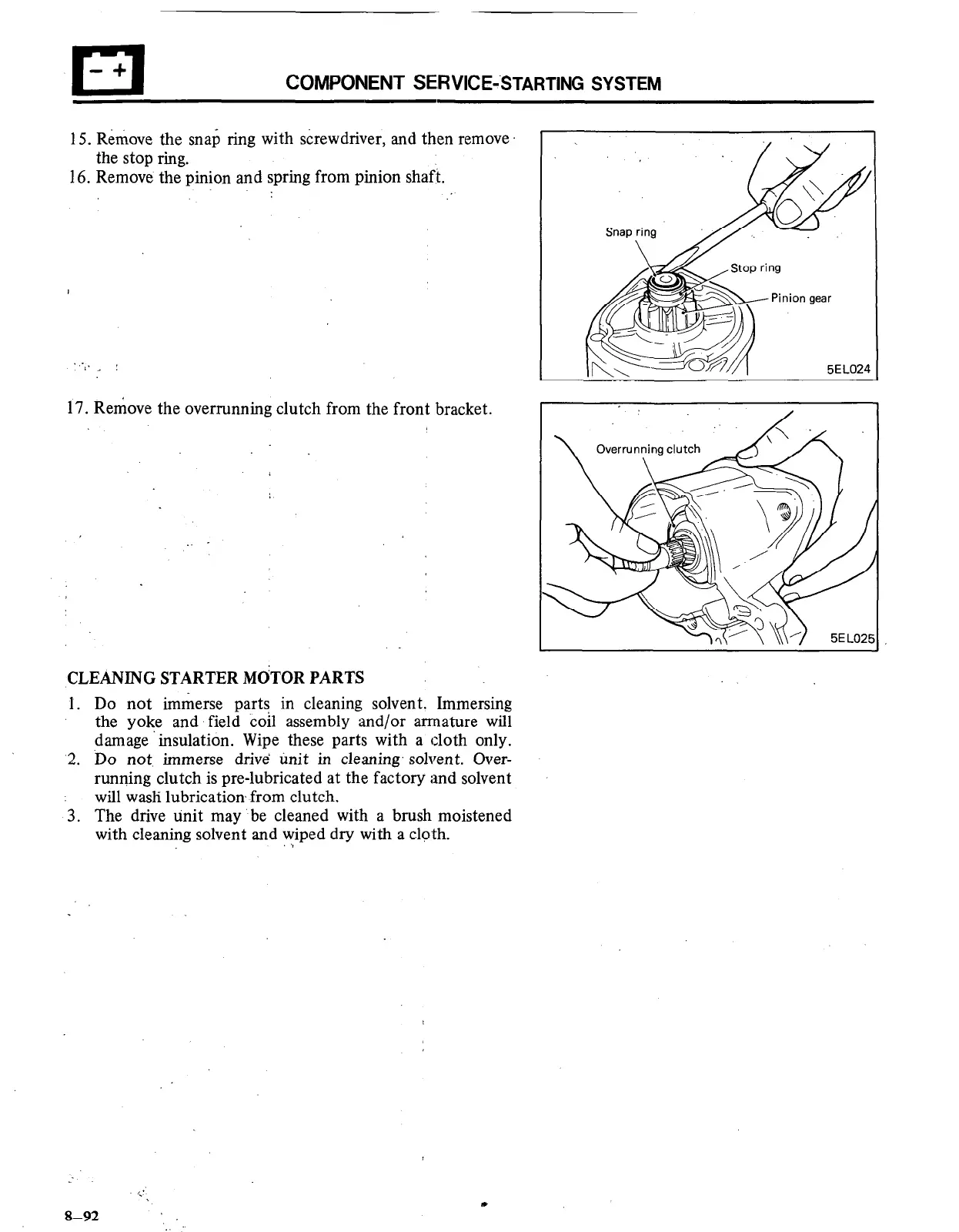

COMPONENT SE,RVICE-‘STARTING SYSTEM
15. Rt%ove the snap ring with screwdriver, and then remove.
the stop ring.
16. Remove the pinion and spring from pinion shaft.
17. Reiove the overrunning clutch from the front bracket.
-
CLEANING STARTER MO:TOR PARTS
1. Do not immerse parts in cleaning solvent. Immersing
the yoke and field coil assembly and/or armature will
damage .insulation. Wipe these parts with a cloth only.
2. Do not immerse drive’ tinit in cleaning. solvent. Over-
running clutch is pre-lubricated at the factory and solvent
will wash lubrication from clutch.
3. The drive tinit may be cleaned with a brush moistened
with cleaning solvent and wiped dry with a cl@h.
0
I
5EL024
Z.’
8-92
,. .
