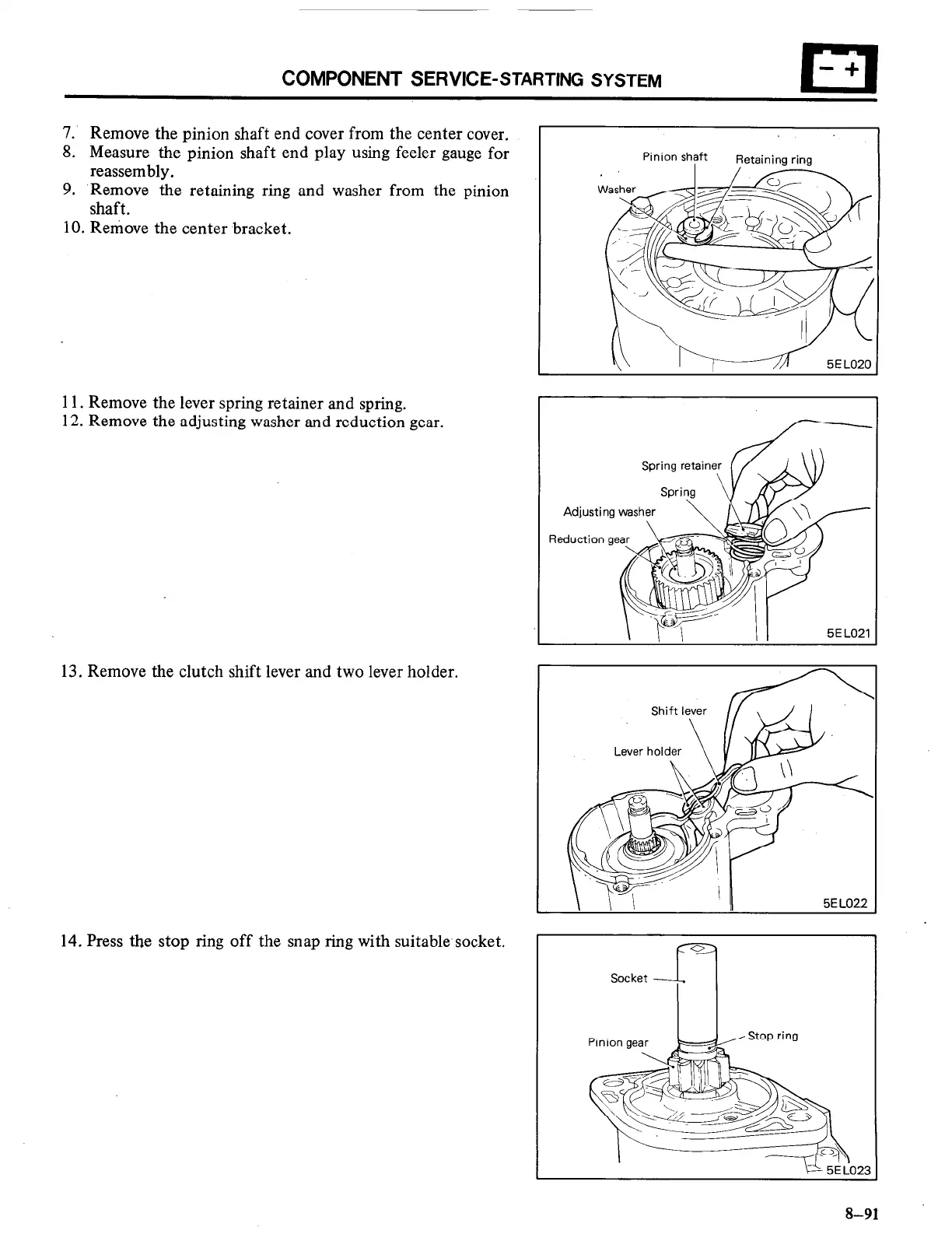

COMPONENT SERVICE-STARTING
SYSTEM
7. Remove the pinion shaft end cover from the center cover.
8. Measure the pinion shaft end play using feeler gauge for
reassembly.
9. Remove the retaining ring and washer from the pinion
shaft.
10. Remove the center bracket.
11. Remove the lever spring retainer and spring.
12. Remove the adjusting washer and reduction gear.
13. Remove the clutch shift lever and two lever holder.
14. Press the stop ring off the snap ring with suitable socket.
Lever holder
5E LO22
