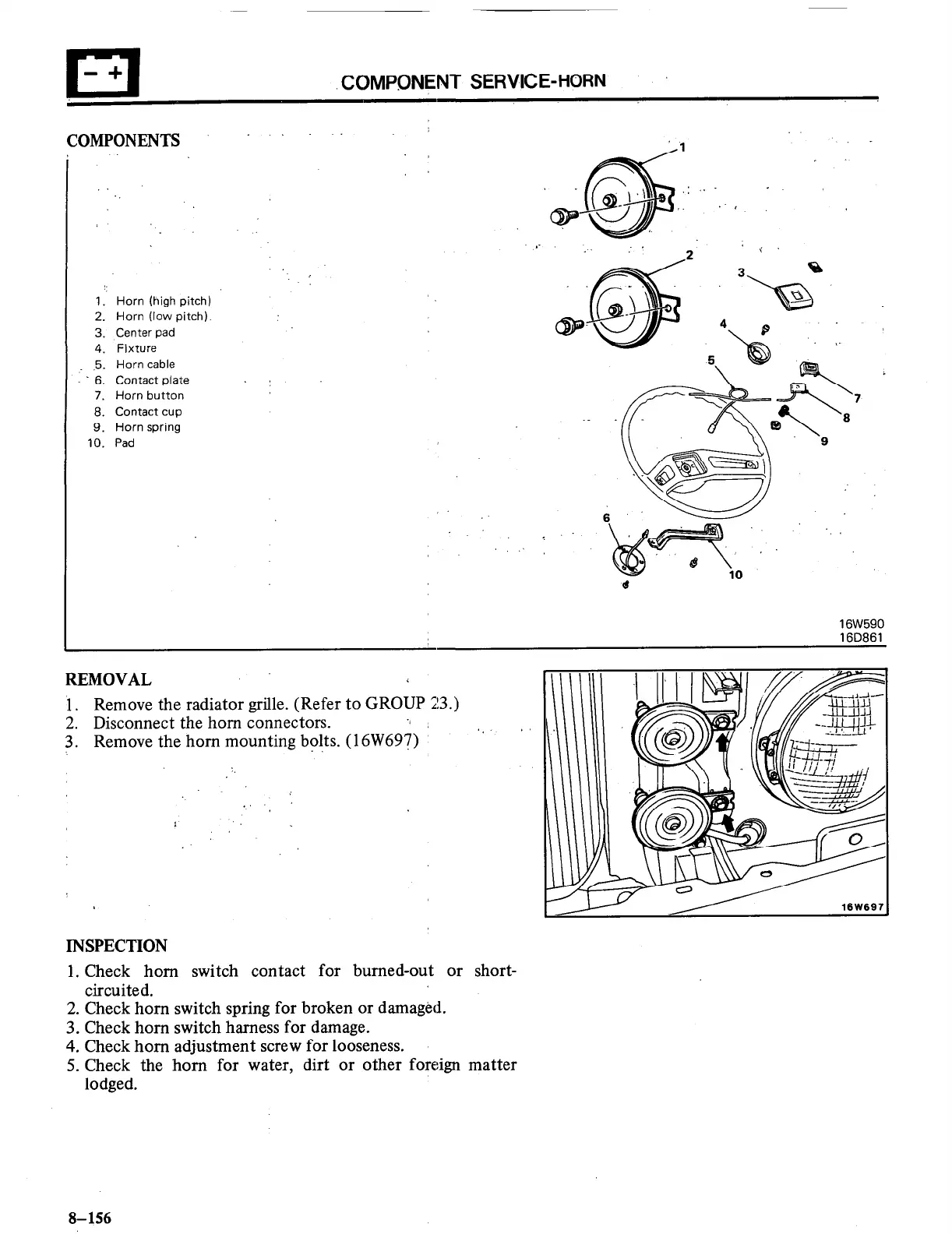

COMPONENT SERVICE-HORN
COMPONENTS ’
1. Horn (high pitch)
2.
Horn (low pitch)
3.
Center pad
4.
Fixture
,5.
Horn cable
. 6. Contact plate
7.
Horn button
8. Contact cup
9.
Horn spring
10.
Pad
.’
8
,
16W590
16D861
REMOVAL
‘1. Remove the radiator grille. (Refer to GROUP 2’3.)
2. Disconnect the horn connectors.
3. Remove the horn mounting bobs. (16W697)
”
INSPECTION
1. Check horn switch contact for burned-out or short-
circuited.
2. Check horn switch spring for broken or damaged.
3. Check horn switch hamess for damage.
4. Check horn adjustment screw for looseness.
5. Check the horn for water, dirt or other foreign matter
lodged.
