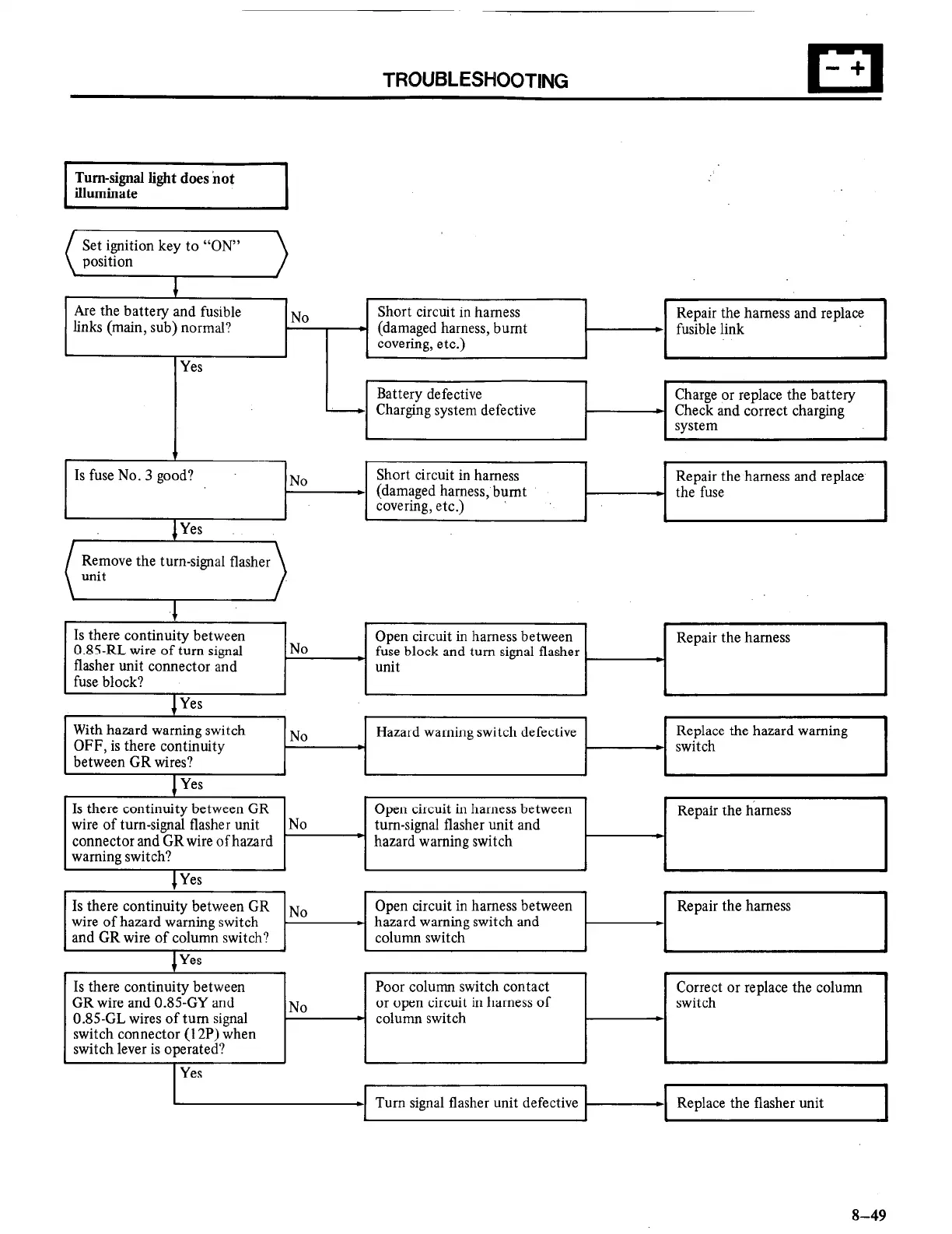

TROUBLESHOOTING
I
Turn-signal light does hot
illuminate
I
Set ignition key to “ON”
position
+
Are the battery and fusible
links (main, sub) normal?
Yes
No
Short circuit in harness
c (damaged harness, burnt
covering, etc.)
Battery defective
p Charging system defective
Charge or replace the battery
* Check and correct charging
system
7
Is fuse No. 3 good?
No
Short circuit in harness
t (damaged harness, burnt
covering, etc.)
Yes
,pj
Remove the turn-signal flasher
unit
Is there continuity between
0.85RL wire of turn signal
flasher unit connector and
fuse block?
/Yes
No
Open circuit in harness between
fuse block and turn signal flasher
unit
Repair the harness
c
With hazard warning switch
OFF, is there continuity
between GR wires?
Yes
No
Hazard warning switch defective
c .
Is there continuity between GR Open circuit in harness between
wire of turn-signal flasher unit No turn-signal flasher unit and
connector and GR wire of hazard ) hazard warning switch
.
warning switch?
1 Yes
4
Is there continuity between GR No Open circuit in harness between
wire of hazard warning switch
, c hazard warning switch and
L
and GR wire of column switch? column switch
Yes
Is there continuity between
GR wire and 0.85GY and
0.85GL wires of turn signal
switch connector (12P) when
switch lever is operated?
Yes
No
Poor column switch contact
or open circuit in harness of
* column switch
.
h Turn signal flasher unit defective
.
Replace the hazard warning
switch
I
Repair the harness
Repair the harness
Correct or replace the column
switch
, Replace the flasher unit
I
8-49
