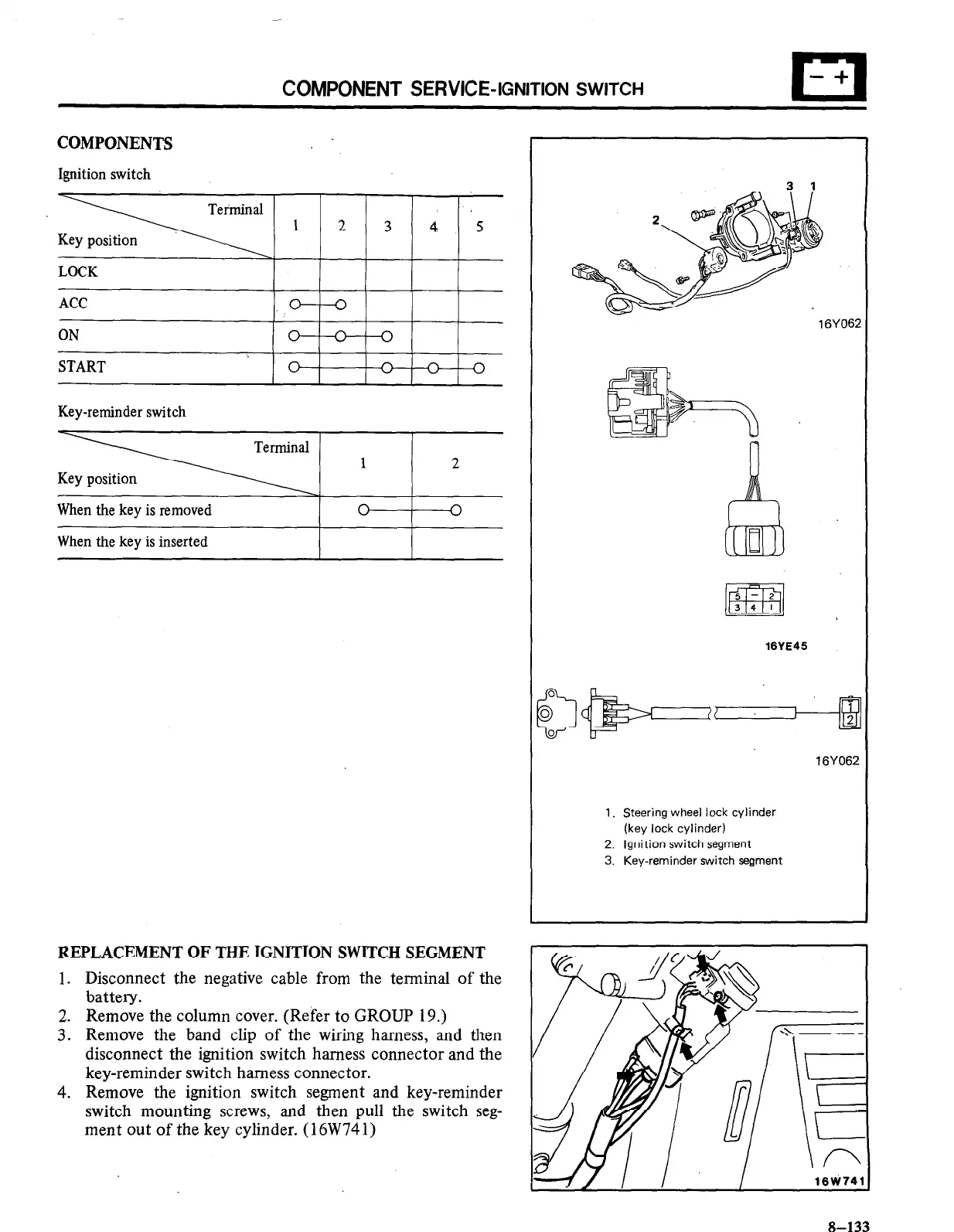

COMPONENT SERVICE-IGNITION SWITCH
COMPONENTS
Ignition switch
LOCK
ON
0
A
0
START 0
A A
0
Key-reminder switch
Terminal
When the key is removed
When the key is inserted
REPLACEMENT OF THE IGNITION SWITCH SEGMENT
1. Disconnect the negative cable from the terminal of the
battery.
2. Remove the column cover. (Refer to GROUP 19.)
3. Remove the band clip of the wiring harness, and then
disconnect the ignition switch harness connector and the
key-reminder switch harness connector.
4. Remove the ignition switch segment and key-reminder
switch mounting screws, and then pull the switch seg-
ment out of the key cylinder. (16W74 1)
16YO62
16YE45
16YO62
1. Steering wheel lock cylinder
(key lock cylinder)
2. Ignition switch segment
3. Key-reminder switch segment
