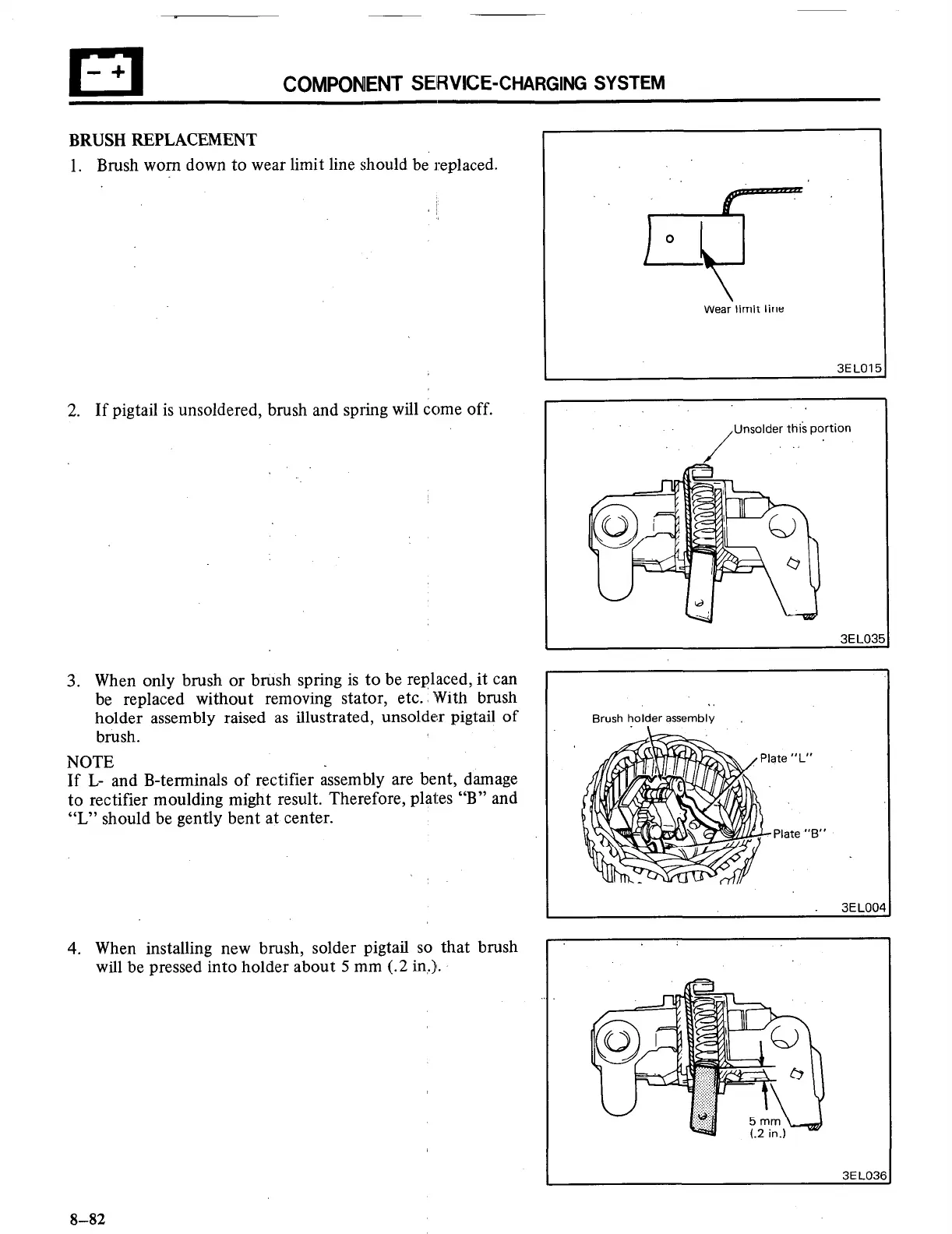

COMPOMENT SEIRVICE-CHARGING SYSTEM
BRUSH REPLACEMENT
1. Brush worn down to wear limit line should be replaced.
2. If pigtail is unsoldered, brush and spring will come off.
3. When only brush or brush spring is to be replaced, it can
be replaced without removing stator, etc. I With brush
holder assembly raised as illustrated, unsolder pigtail of
brush.
NOTE
If L- and B-terminals of rectifier assembly are bent, damage
to rectifier moulding might result. Therefore, plates “B” and
“L” should be gently bent at center.
4. When installing new brush, solder pigtail so that brush
will be pressed into holder about 5 mm (.2 in,)l..
Unsolder this portion
/ ..,’
,,
Brush holder assembly
I
3E LO3f
8-82
