TROWLESHOOTING
I
I

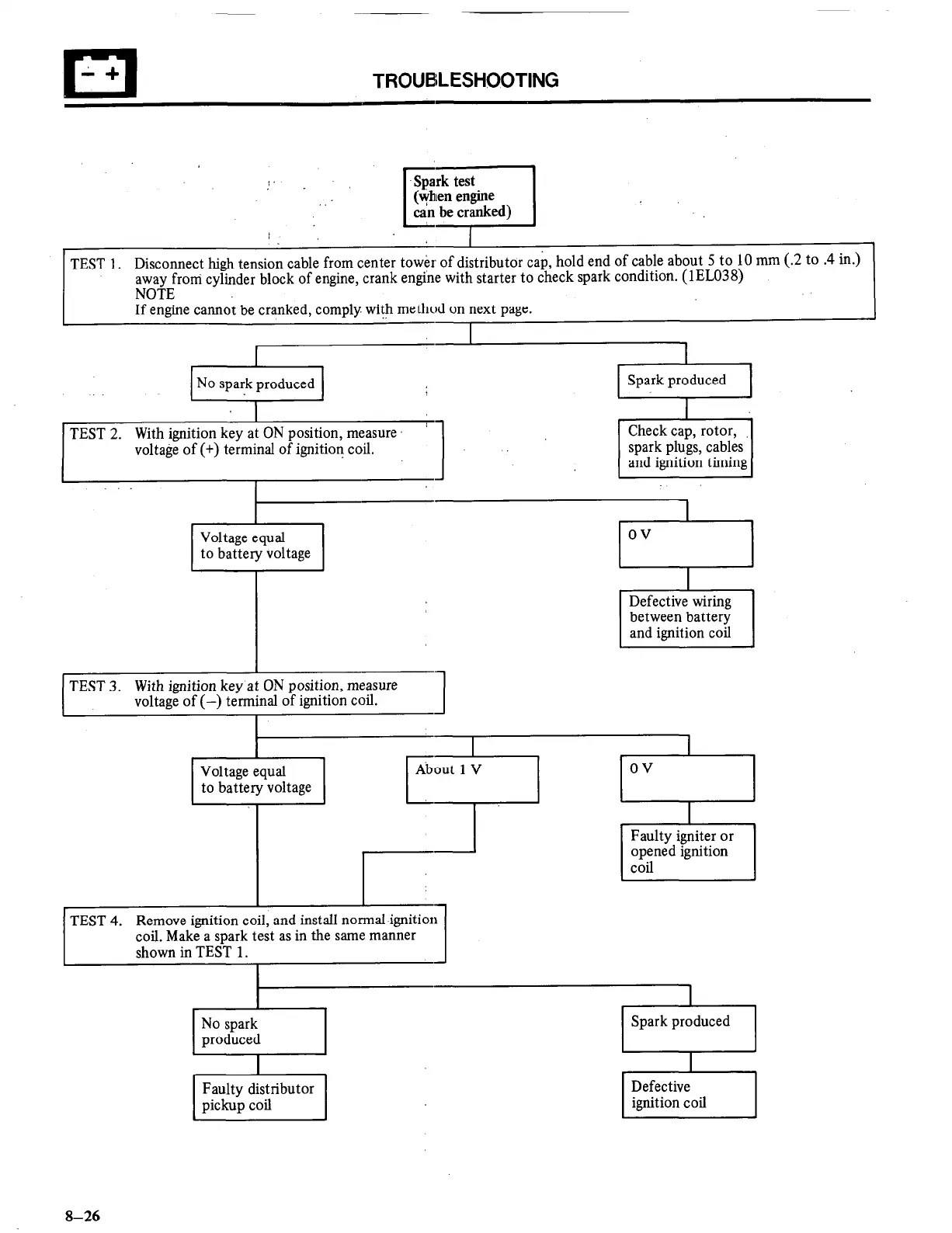

No spark produced
Spark produced
TEST 2. With ignition key at ON position, measure ’
Check cap, rotor,
voltage of(+) terminal of ignition coil.
spark plugs, cables
and ignition timing
Voltage equal
to battery voltage
Defective wiring
between battery
and ignition coil
TEST 3. With ignition key at ON position, measure
voltage of (-) terminal of ignition coil.
1
Voltage equal
to battery voltage
Faulty igniter or
opened ignition
coil
TEST 4.
Remove ignition coil, and install normal ignition
coil. Make a spark test as in the same manner
shown in TEST 1.
1
No spark
produced
I
Faulty distributor
pickup coil
Spark produced
I
Defective
ignition coil
8-26
To Next Page
