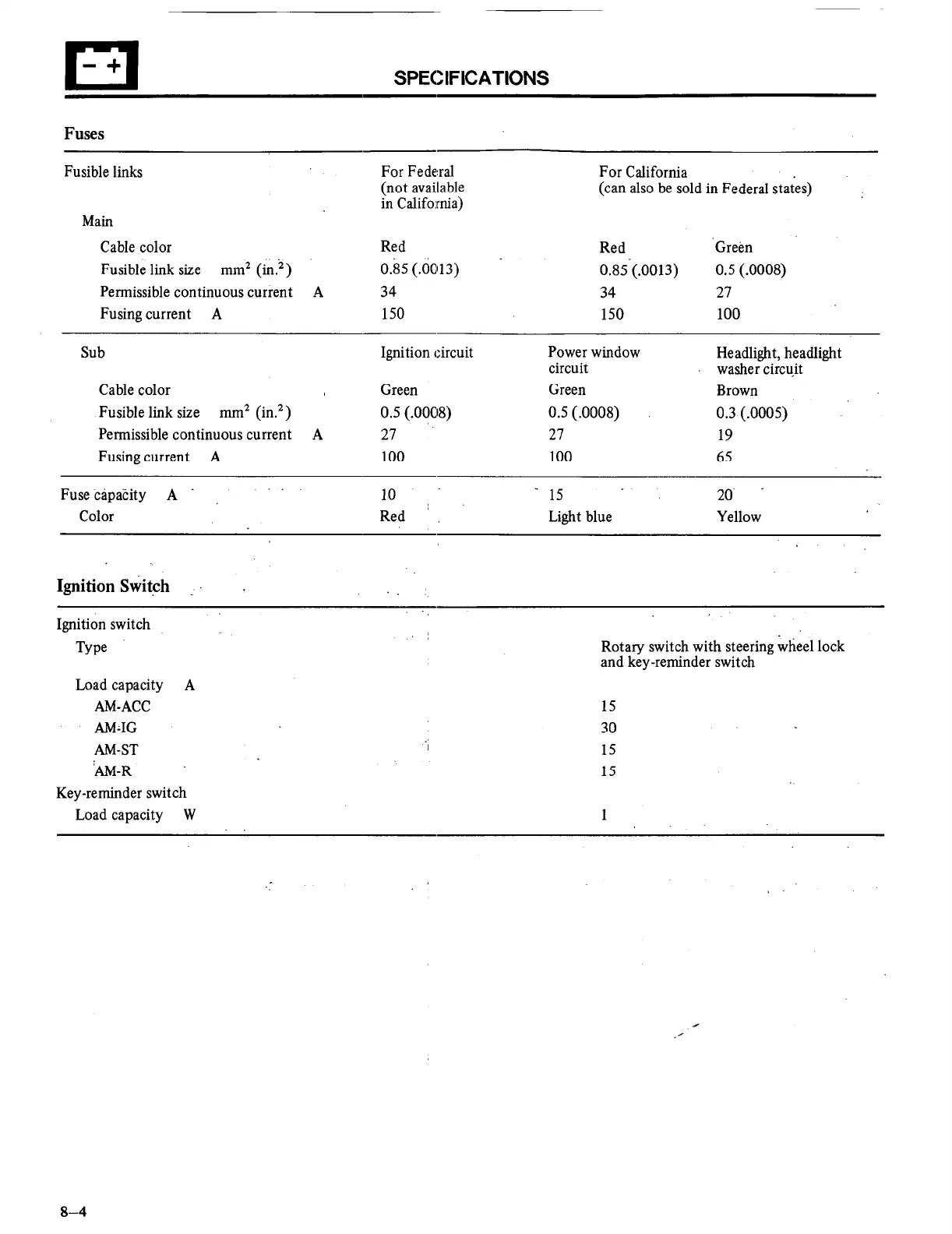

SPECIFICATIONS
Fuses
Fusible links
Main
For Federal
(not available
in Califo:rnia)
For California
(can also be sold in Federal states)
Cable color Red
Red
.Green
Fusible link size mm’ (ini)
0.85 (.d013)
0.85.(.0013) 0.5 (.OOOS)
Permissible continuous current A 34 34 27
Fusing current A 150 150 100
Sub Ignition circuit Power window
Headlight, headlight
circuit
washer circuit
Cable color Green Green
Brown
Fusible link size mm2 (in.“)
0.5 (.0008) 0.5 (.OOOS) 0.3 (.0005)
Permissible continuous current A 27 27
19
Fusing current A 100 100
65
Fuse capacity A
Color
10
Red ’
,’
-15 .
20 -
Light blue Yellow
Ignition Switch .
Ignition switch
Type
Load capacity A
AM-ACC
AMGIG
AM-ST
‘M-R
Key-reminder switch
Load capacity W
.I
!
.i
Rotary switch with steering wheel lock
and key-reminder switch
15
30
15
15
1
,
8-4
