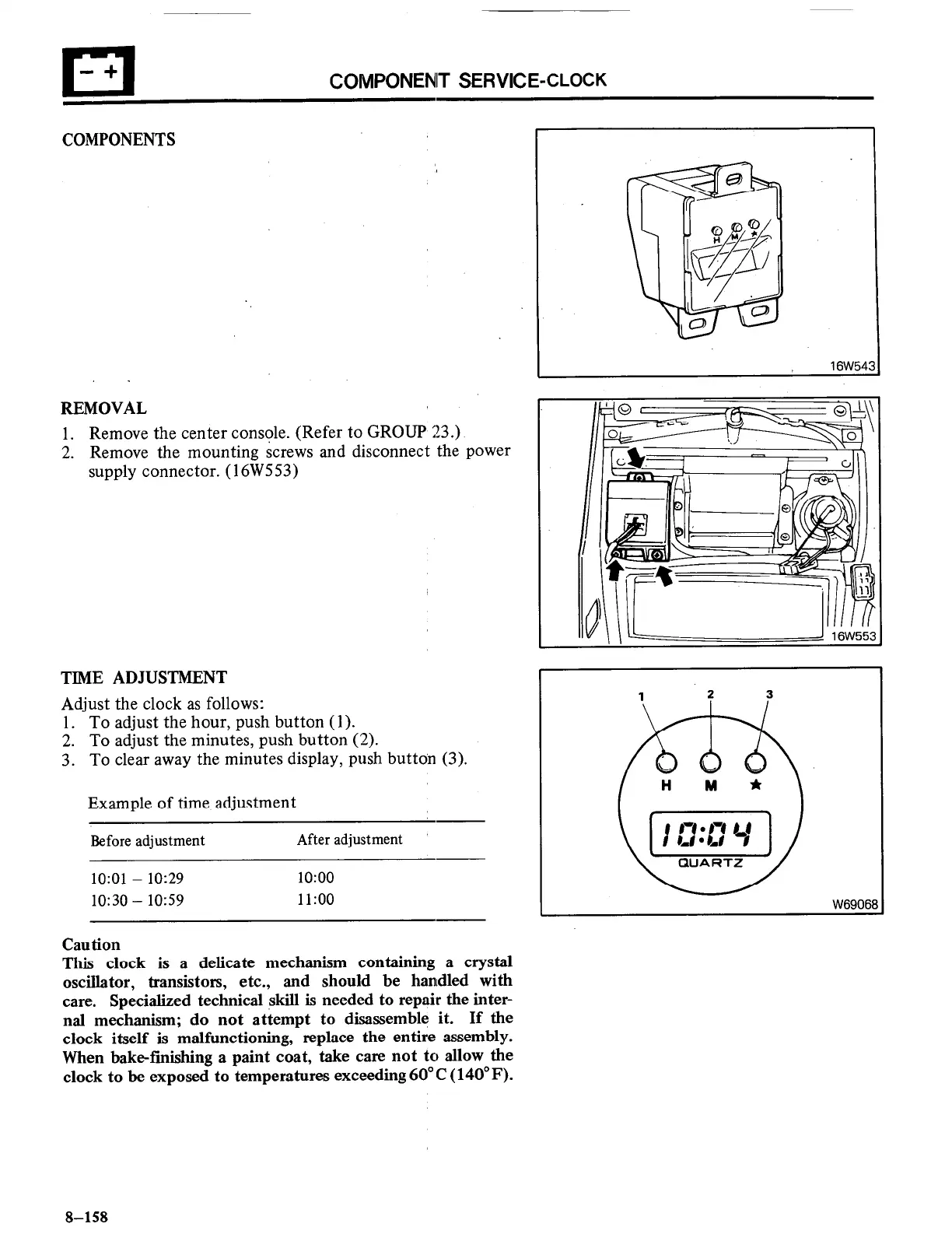

COMPONENIT
SERVICE-CLOCK
COMPONENTS
REMOVAL
1. Remove the center console. (Refer to GROUP 23.)
2. Remove the mounting screws and disconnect the power
supply connector. (16W553)
TIME ADJUSTMENT
Adjust the clock as follows:
1. To adjust the hour, push button (1).
2. To adjust the minutes, push button (2).
3. To clear away the minutes display, push button (3).
Example of time adjustment
Before adjustment
After adjustment
1O:Ol - lo:29 lo:oo
10:30 - 10:59 ll:oo
Caution
This clock is a delicate mechanism containing a crystal
oscillator, transistors, etc.,
and should be handled with
care. Specialized technical skill is needed to repair the inter-
nal mechanism; do not attempt to disassemble it. If the
clock itself is malfunctioning, replace the entire assembly.
When bake-finishing a paint coat, take care not to allow the
clock to be exposed to temperatures exceeding 60” C ( 140” F).
I
16VV543
8-158
