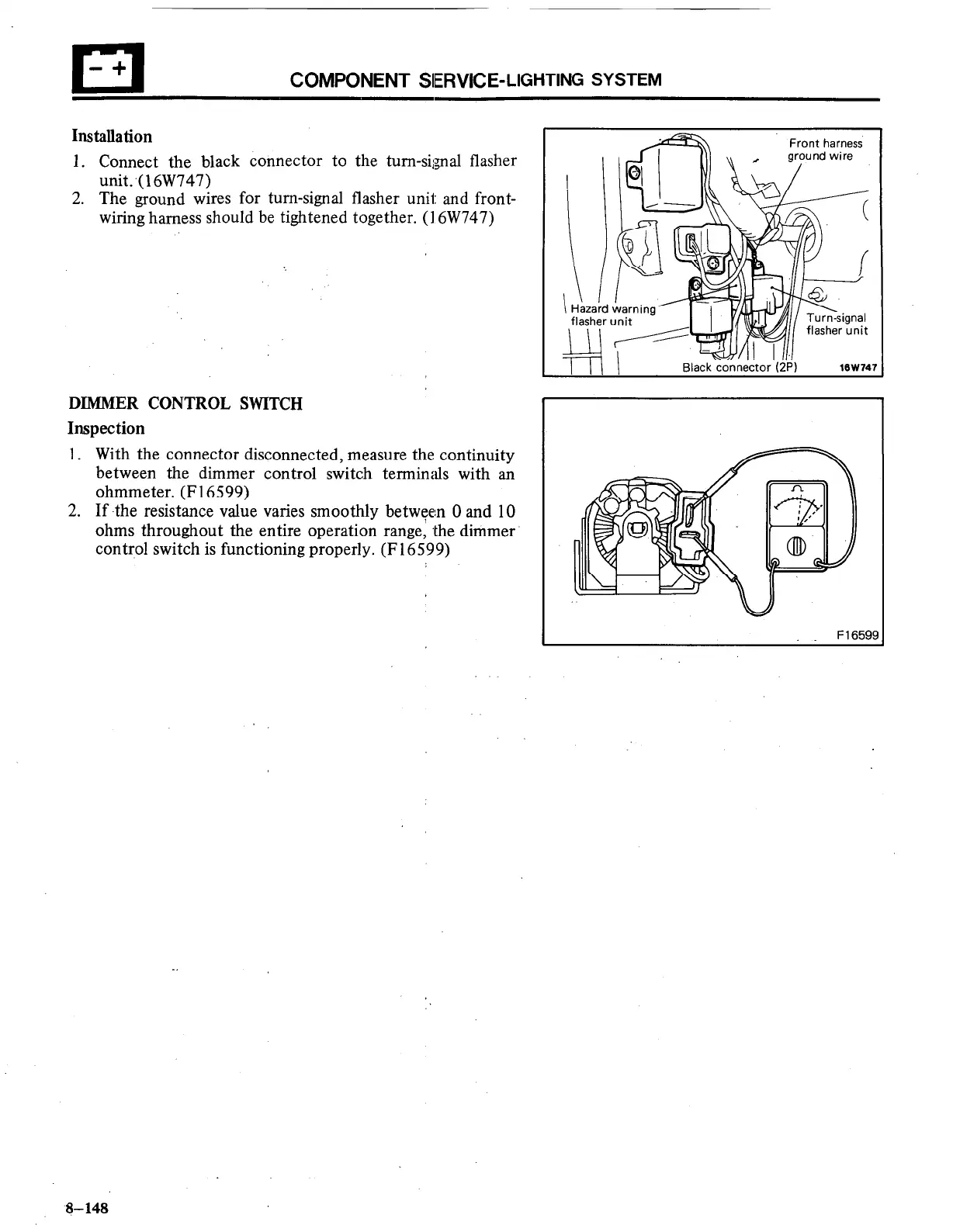

COMPONENT
SIERVICE-LIGHTING
SYSTEM
Installation
1. Connect the black connector to the turn-signal flasher
unit:( 16W747)
2. The ground wires for turn-signal flasher unit and front-
wiring harness should be tightened together. (I 6W747)
DIMMER CONTROL SWITCH
Inspection
1. With the connector disconnected, measure the continuity
between the dimmer control switch terminals with an
ohmmeter. (F16599)
2. If the resistance value varies smoothly between 0 and 10
ohms throughout the entire operation range, .the dimmer
control switch is functioning properly. (F 16599)
Front harness
.
ground wire
/
Turn-signal
flasher unit
nnector (2P)
I
F16599
8-148
