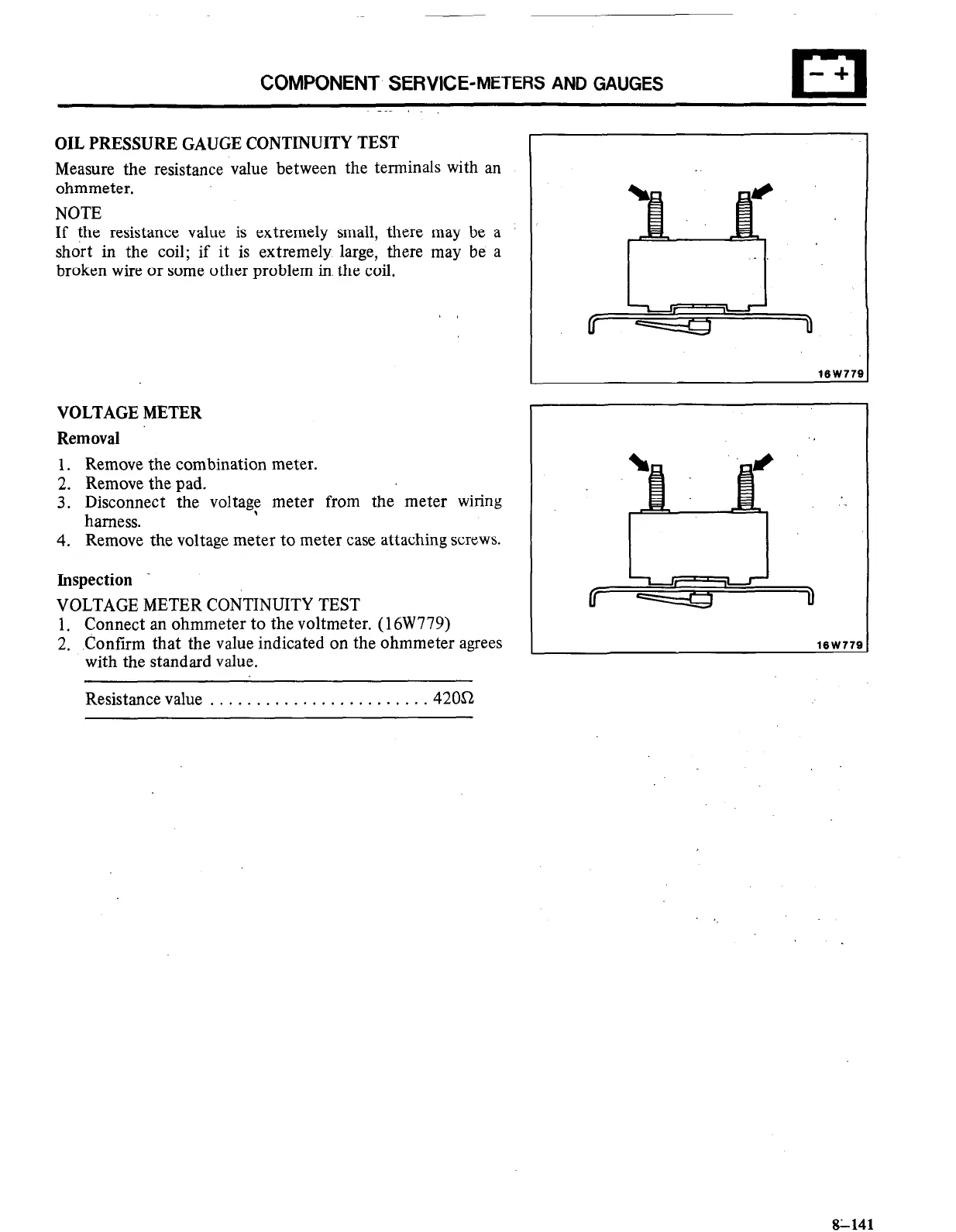

COMPONENT SERVICE-METERS
AND GAUGES
OIL PRESSURE GAUGE CONTINUITY TEST
Measure the resistance value between the terminals with an
ohmmeter.
NOTE
If the resistance value is extremely small, there may be a
short in the coil; if it is extremely large, there may be a
broken wire or some other problem in the coil.
VOLTAGE METER
Removal
1. Remove the combination meter.
2. Remove the pad.
3. Disconnect the voltage meter from the meter wiring
harness.
4. Remove the voltage meter to meter case attaching screws.
Inspection -
VOLTAGE METER CONTINUITY TEST
1. Connect an ohmmeter to the voltmeter. (16W779)
2. Contirm that the value indicated on the ohmmeter agrees
with the standard value.
Resistance value . . . . . . . . . . . . . . . . . . . . . . . .42Oa
I
lBW779
8-141
