COMPONENT
SERVICE-METERS AND GAUGES
cl
-+
System Inspktion
1.
2.
3.
4.
5.
6.

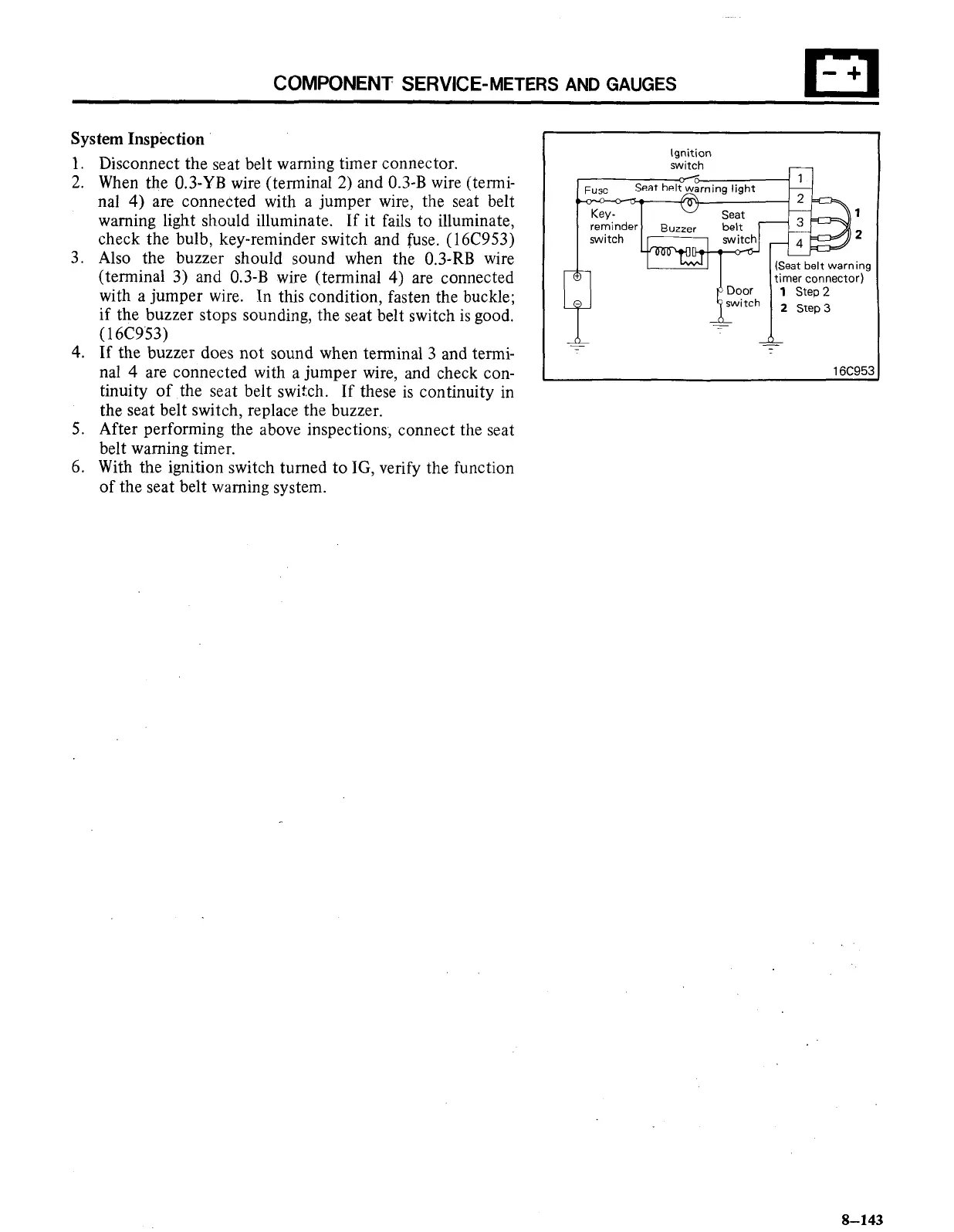

Disconnect the seat belt warning timer connector.
When the 0.3-YB wire (terminal 2) and 0.3-B wire (termi-
nal 4) are connected with a jumper wire, the seat belt
warning light should illuminate. If it fails to illuminate,
check the bulb, key-reminder switch and fuse. (16C953)
Also the buzzer should sound when the 0.3-RB wire
(terminal 3) and 0.3-B wire (terminal 4) are connected
with a jumper wire. In this condition, fasten the buckle;
if the buzzer stops sounding, the seat belt switch is good.
(16C953)
If the buzzer does not sound when terminal 3 and termi-
nal 4 are connected with a jumper wire, and check con-
tinuity of the seat belt switch. If these is continuity in
the seat belt switch, replace the buzzer.
After performing the above inspections, connect the seat
belt warning timer.
With the ignition switch turned to IG, verify the function
of the seat belt warning system.
