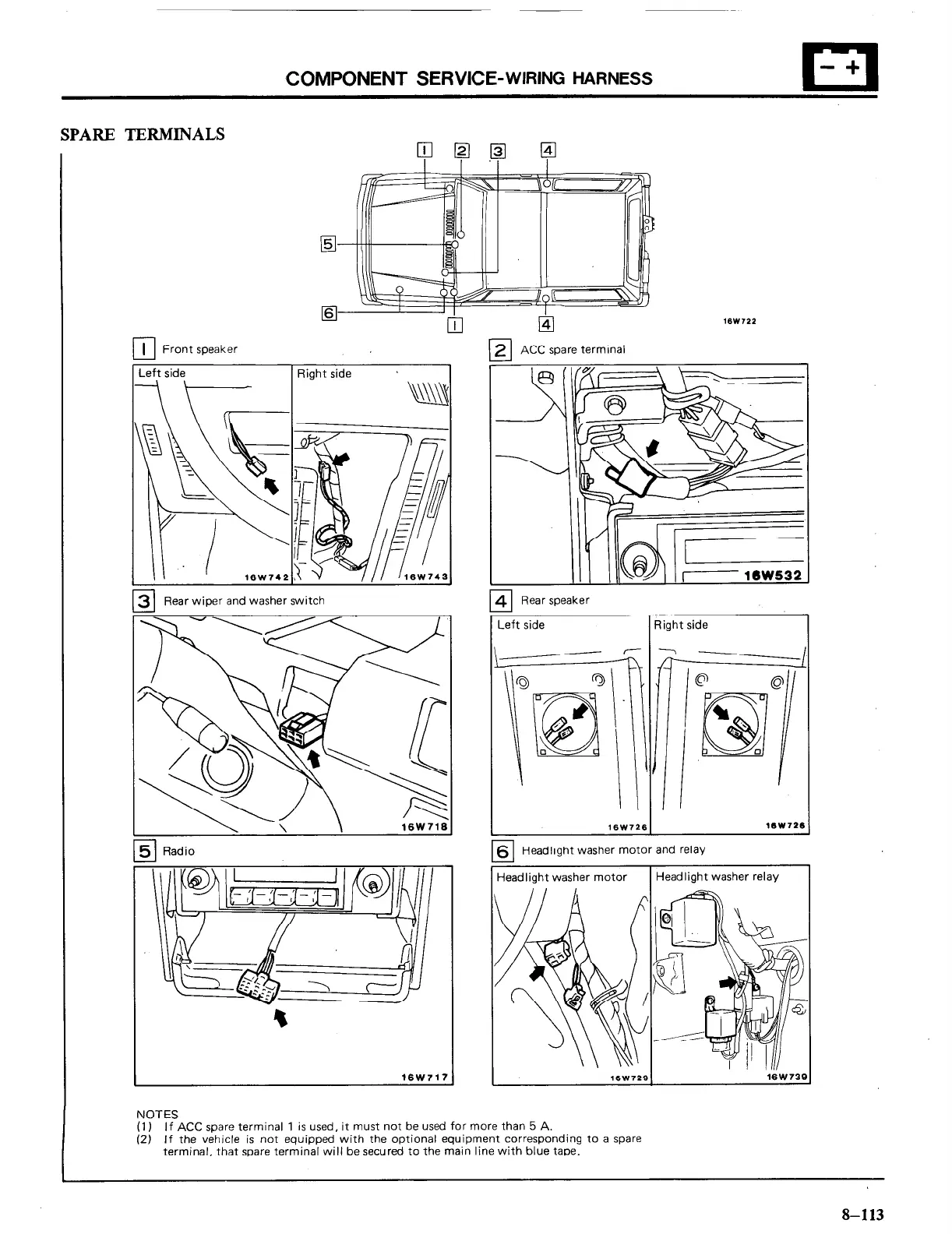

COMPONENT SERVICE-WIRING HARNESS
SPARE TERMINALS
Y
7
1 Front speaker
i-l
Rear wiper and washer switch
d Radio
161111717 16W728
El
r-
4 ACC spare terminal
El
Rear speaker
-eft side Right side
16W726
16W72#
%I
Headlight washer motor and relay
ieadlight washer motor
Headlight washer relay
16W738
NOTES
(1) If ACC spare terminal 1 is used, it must not be used for more than 5 A.
(2) If the vehicle is not equipped with the optional equipment corresponding to a spare
terminal, that spare terminal will be secured to the main line with blue tape.
