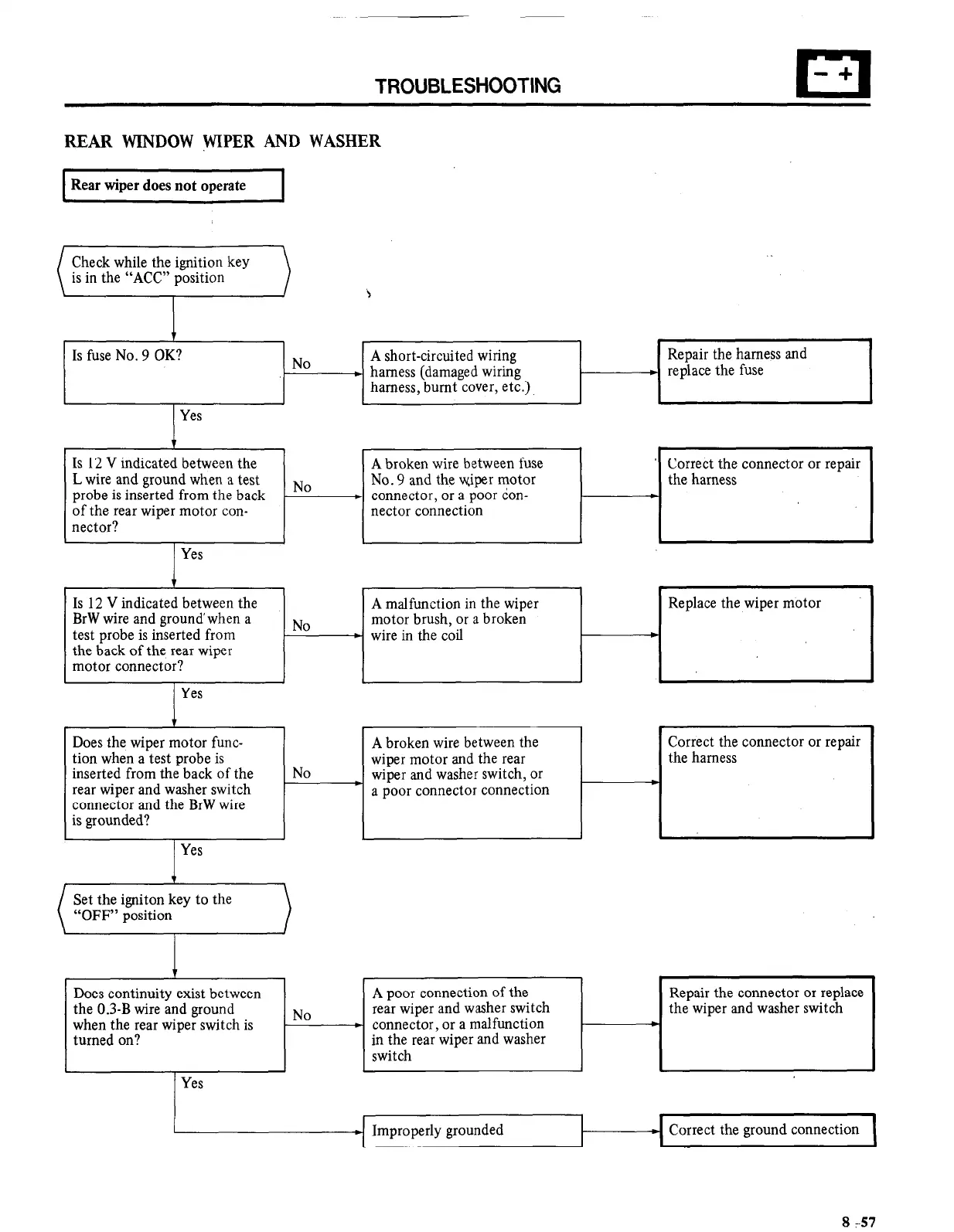

TROUBLESHOOTING
cl
-+
REAR WINDOW MPER AND WASHER
Rear wiper does not operate
I
Check while the ignition key
is in the “ACC” position
Is fuse No. 9 OK?
I Yes
No
A short-circuited wiring
+ harness (damaged wiring
harness, burnt cover, etc.)
Repair the harness and
e replace the fuse
Is 12 V indicated between the
L wire and ground when a test
probe is inserted from the back
of the rear wiper motor con-
nector?
No
.
Yes
Is 12 V indicated between the
BrW wire and ground when a
test probe is inserted from
No
.
the back of the rear wiper
motor connector?
A broken wire between fuse
No. 9 and the wiper motor
connector, or a poor Con-
nectar connection
’ Correct the connector or repair
the harness
*
Yes
Does the wiper motor func-
tion when a test probe is
inserted from the back of the
rear wiper and washer switch
connector and the BrW wire
is grounded?
Yes
Set the igniton key to the
A malfunction in the wiper
motor brush, or a broken
wire in the coil
Replace the wiper motor
t
No 1-1 ,
Does continuity exist between
the 0.3-B wire and ground
when the rear wiper switch is
No
.
turned on?
Yes
Correct the connector or repair
the harness
Repair the connector or replace
the wiper and washer switch
Correct the ground connection
847
