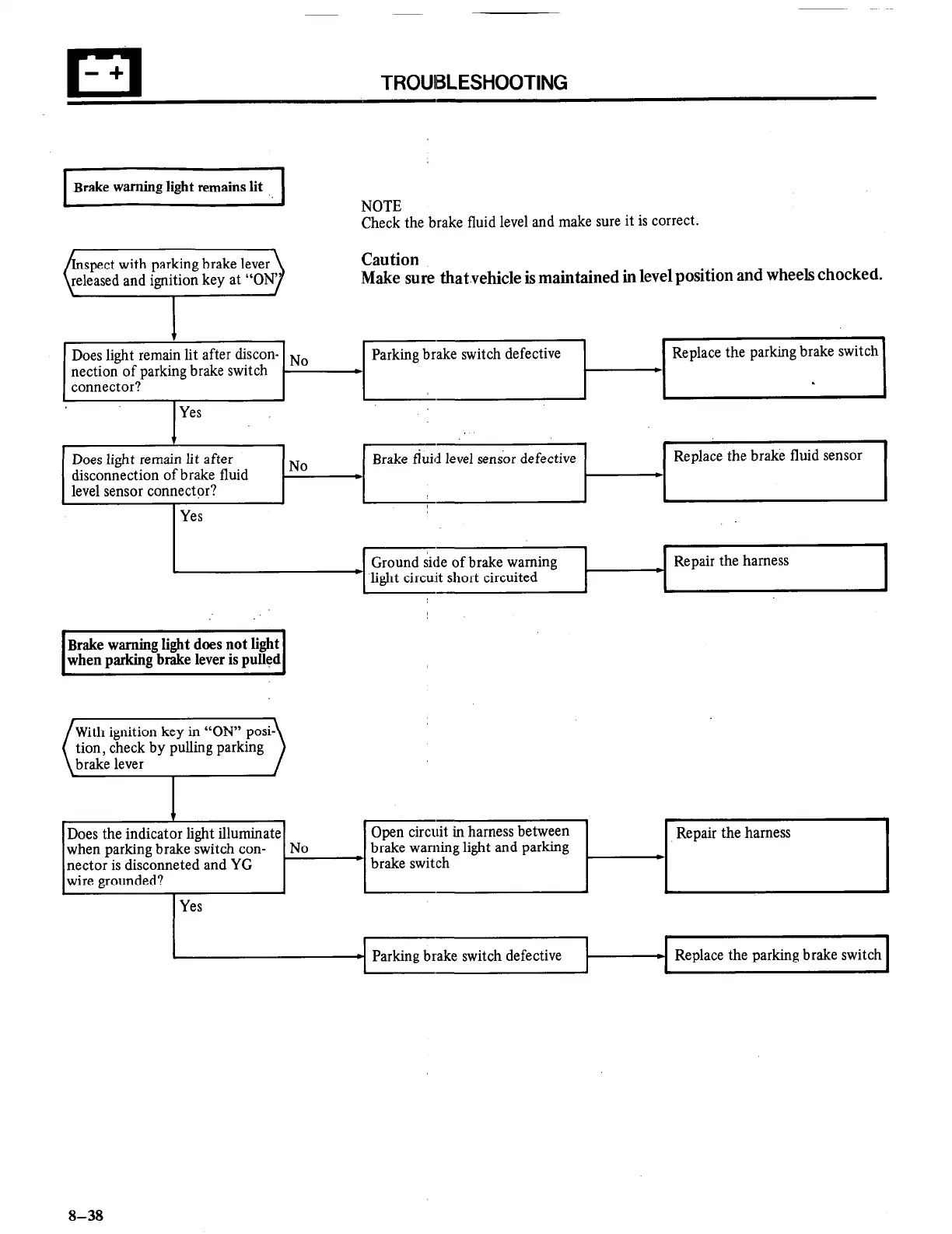

TROUIBLESHOOTING
Brake warning light remains lit
NOTE
Check the brake fluid level and make sure it is correct.
Caution
:Make sure that.vehicle is maintained in level position and wheels chocked.
Does light remain lit after discon- Parking brake switch defective
Replace the parking brake switch
I
Yes
Does light remain lit after
disconnection of brake fluid
level sensor connector?
Yes
Brake fiuid level sensor defective
Replace the brake fluid sensor
Ground side of brake warning
- light circu:it short circuited
L
Repair the harness
I
Brake warning light does not light
when parking brake lever is pulled
I
th ignition key in “ON” posi
tion, check by pulling parking
I
Does the indicator light illuminate
when parking brake switch con-
No
nectar is disconneted and YG
wire grounded?
Yes
Replace the parking brake switch
8-38
