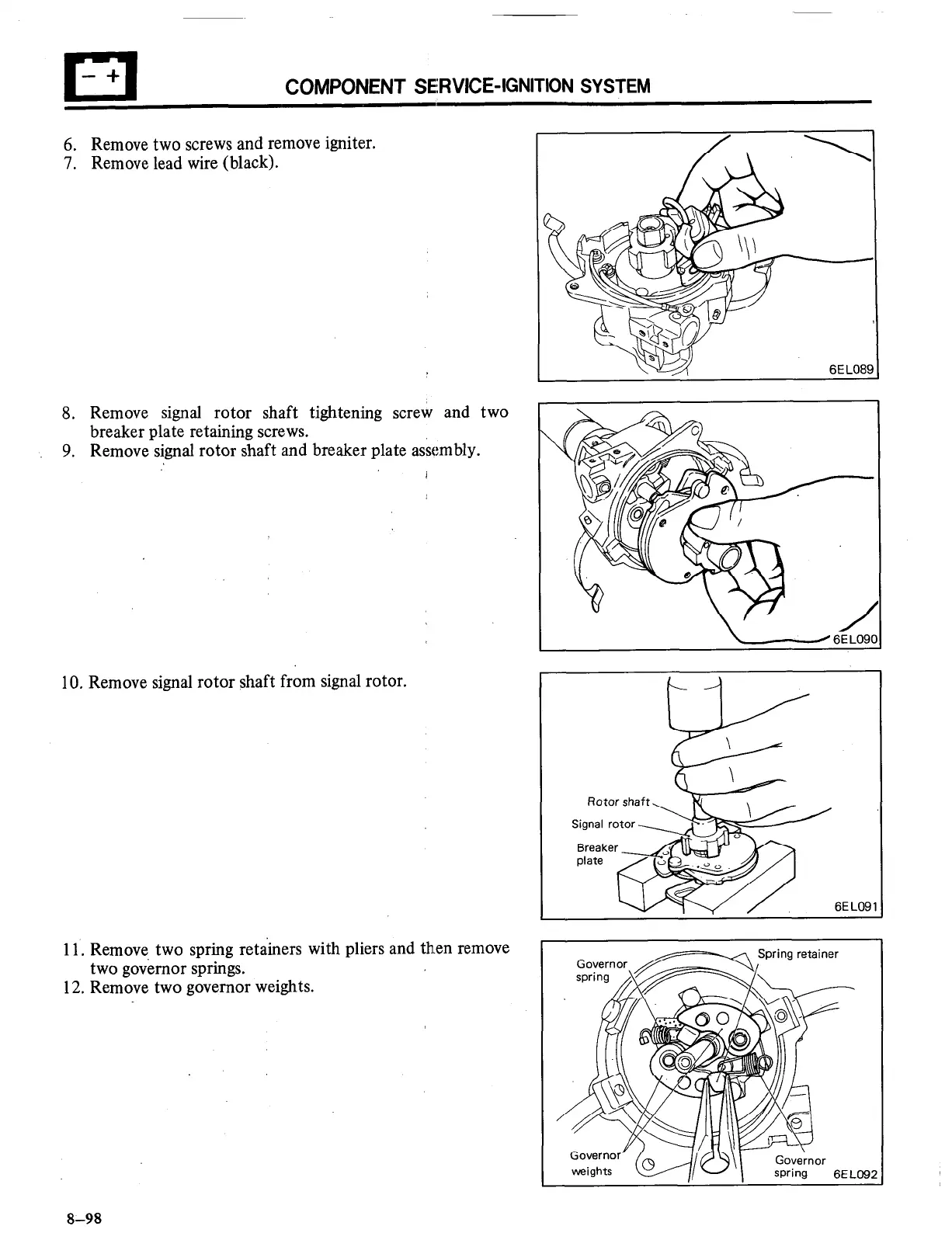

COMPONENT
SERVICE-IGNITION
SYSTEM
6.
Remove
two
screws
and
remove
igniter.
7.
Remove
lead
wire
(black).
8.
Remove
signal
rotor
shaft
tightening
screw
and
two
breaker
plate
retaining
screws.
9.
Remove
signal
rotor
shaft
and
breaker
plate
assembly.
10.
Remove
signal
rotor
shaft
from
signal
rotor.
11.
Remove,
two
spring
ret&ers
with
pliers
and
th.en
remove
two
governor
springs.
12.
Remove
two
governor
weights.
Spring
retainer
I
Governor
I
spring
6ELO92
I
8-98
97
99
