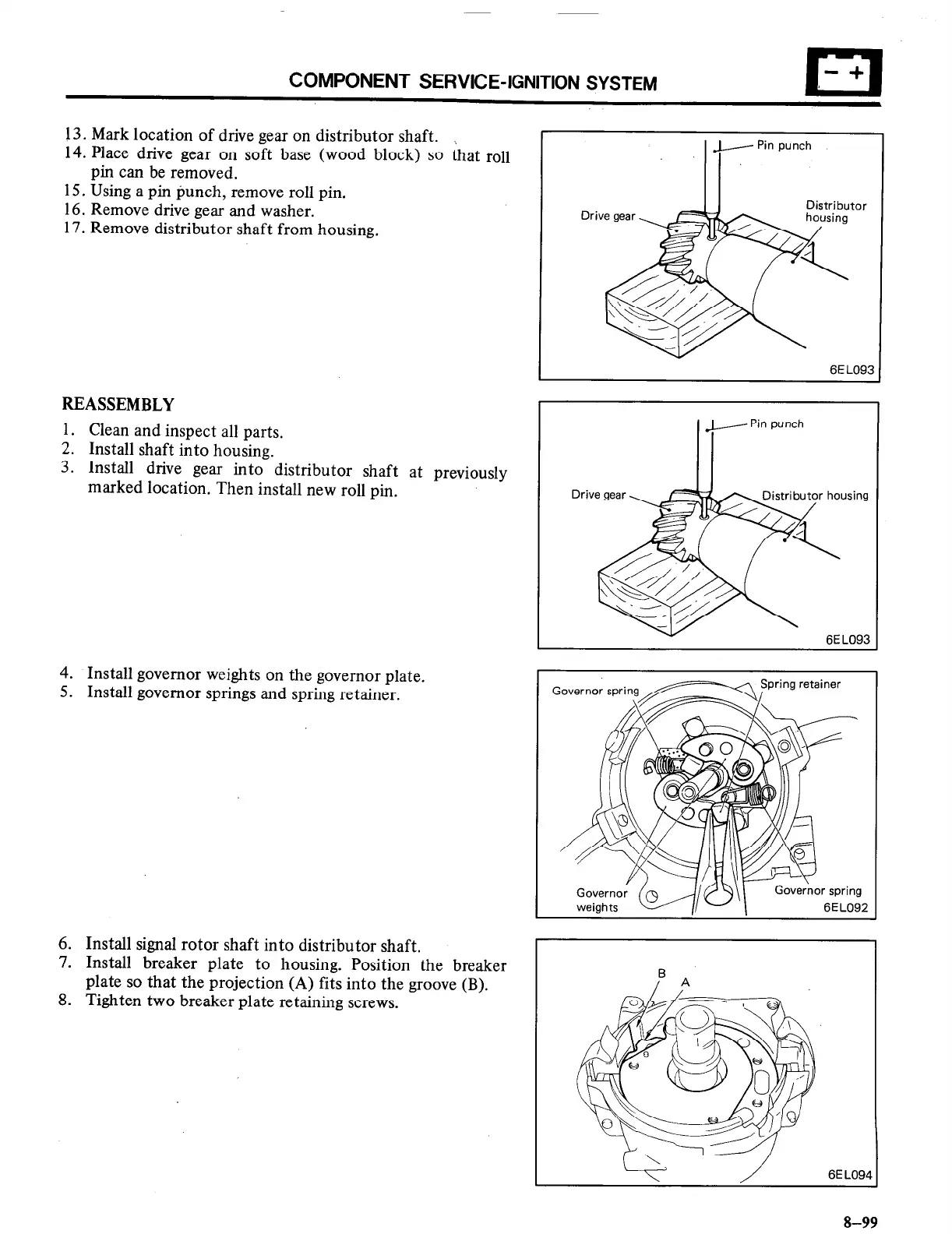

COMPONENT SERVICE-IGNITION
SYSTEM
13. Mark location of drive gear on distributor shaft.
14. Place drive gear on soft base (wood block) SO that roll
pin can be removed.
15. Using a pin punch, remove roll pin.
16. Remove drive gear and washer.
17. Remove distributor shaft from housing.
REASSEMBLY
1. Clean and inspect all parts.
2. Install shaft into housing.
3. Install drive gear into distributor shaft at previously
marked location. Then install new roll pin.
4. Install governor weights on the governor plate.
5. Install governor springs and spring retainer.
6. Install signal rotor shaft into distributor shaft.
7. Install breaker plate to housing. Position the breaker
plate so that the projection (A) fits into the groove (B).
8. Tighten two breaker plate retaining screws.
I
6EL093
J--.--Pin punch
II
Spring retainer
=3?-- -
Governor spring
6EL092
6E LO94
