following table. -
Letter Meaning Letter Meaning
ACC
Accessory
I
L
Load
AS Auto-stop LO
Low-speed terminal
B Battery LI License plate lights
BACK . Back-up lights
OIL
Oil pressure
BEAM
Headlight upper beam indicator light
RL
Rear left
BK .’ Brake
RR
Rear iight
CHG
Charging
s Soft
DEF
Defogger
ST Starter
DR Door
STOP
Stop lights
E Ground
TAC
Tachometer
FL Front left
TAIL
Tail lights
FR Front right TEMP Water temperature
H Hard TUL Turn-signal light, left
HI High speed terminal TUR Turn-signal light, right
HL Headlight low beam w Washer
HU Headlight high beam + Positive terminal
IG Ignition
-
Negative terminal
ILL Illumination 4WD 4WD indicator light
IND
Indicator light
7. Parentheses contain supplementary information; in the example, the “1” indicates the number 1 fuse of the
fuse block.
8. The boxed numbers I indicate to which terminal is connected.
9. If neither a ci!cuit .nor a number is listed, it :i:ndicates that this wire of this terminal is not connected to an-
qther terminal.

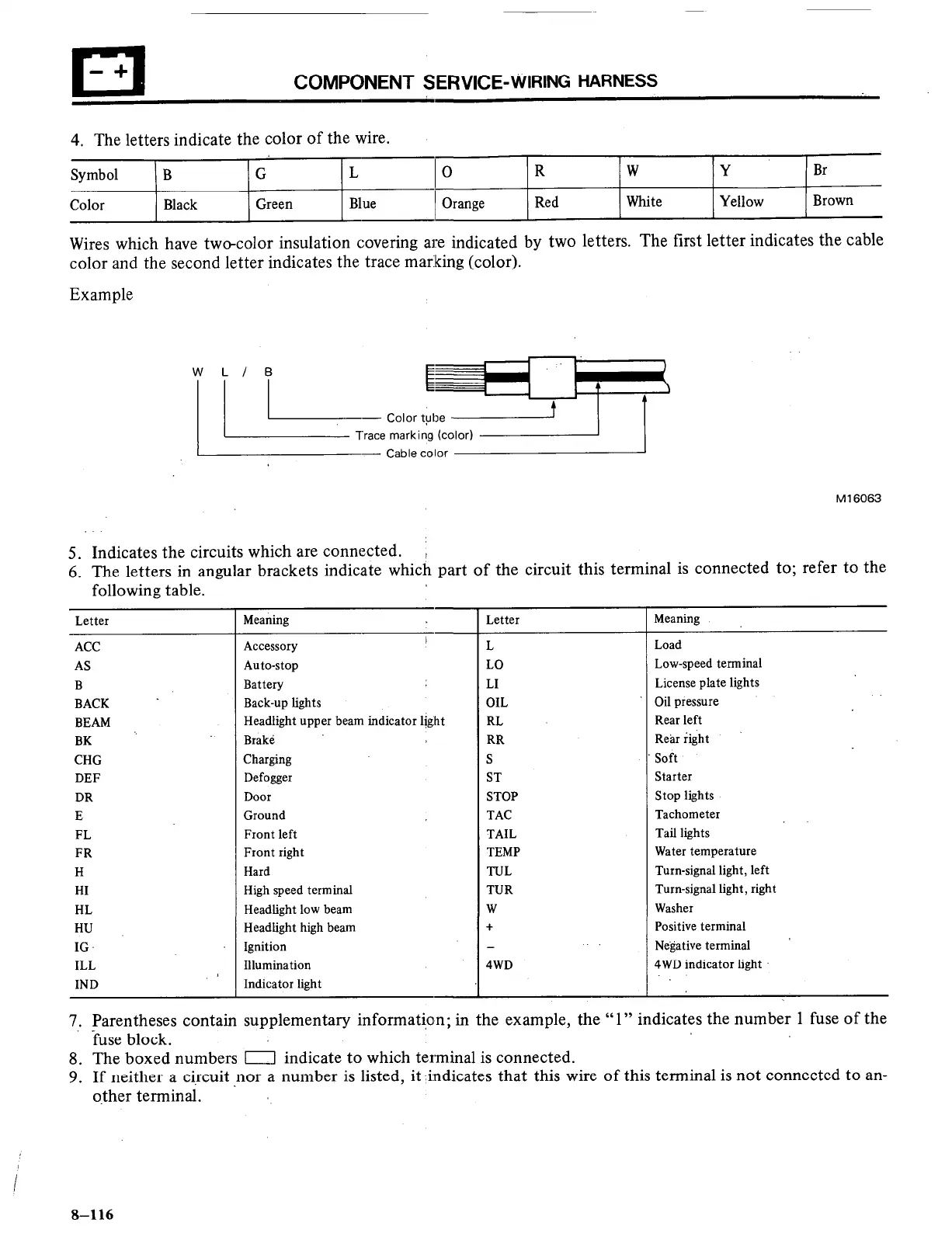

COMPONENT SERVICE-WIRING HARNESS
4. The letters indicate the color of the wire.
Symbol B G
L 0
R W Y Br
Color Black Green
Blue
Orange
Red White Yellow
Brown
Wires which have two-color insulation covering are indicated by two letters. The first letter indicates the cable
color and the second letter indicates the trace maryking (color).
Example
M 16063
5. Indicates the circuits which are connected. ;
6. The letters in angular brackets indicate which part of the circuit this terminal is connected to; refer to the
8-116
