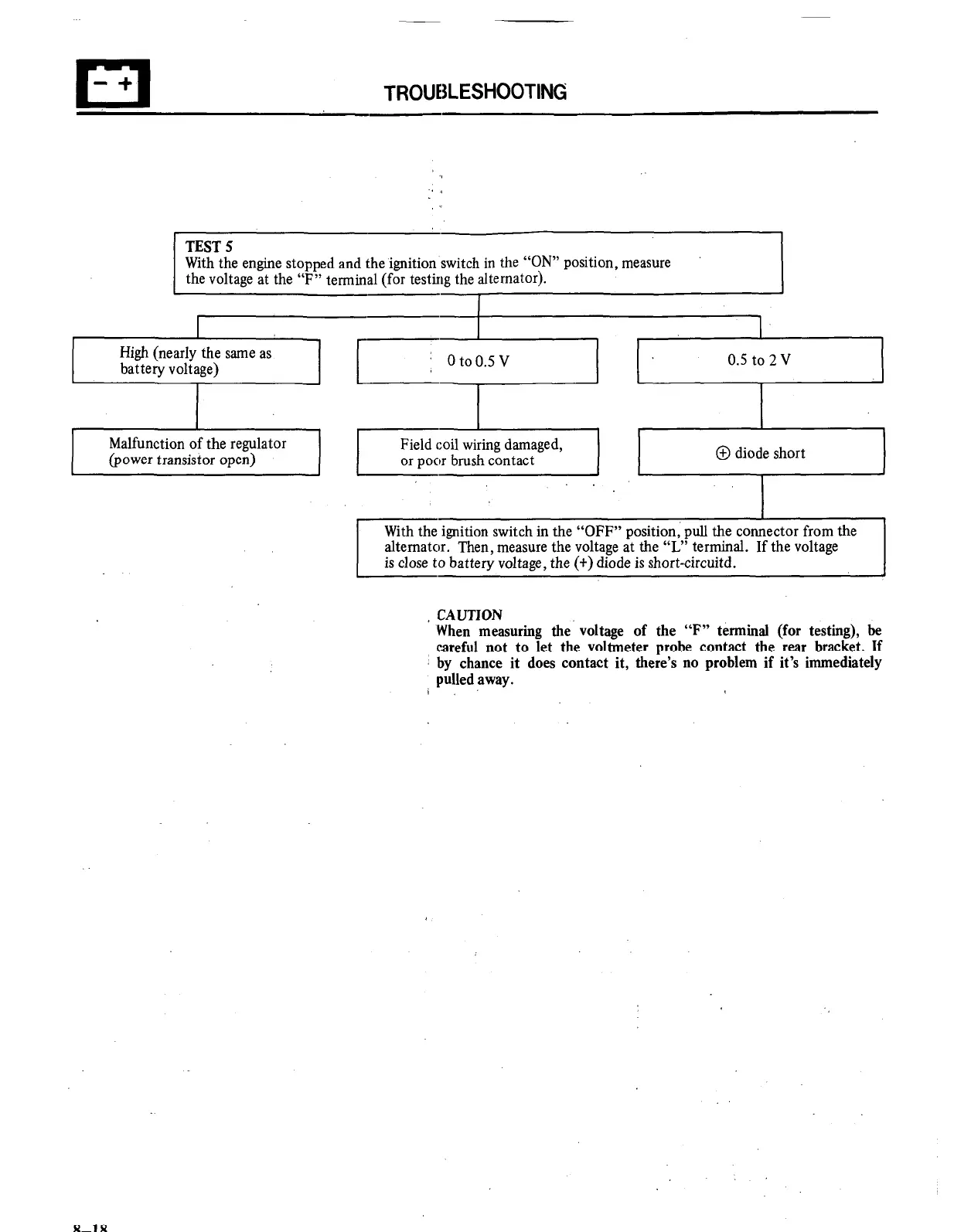

TROUBLESHOOTING
TEST 5
With the engine stopped and the ignition switch in the “ON” position, measure
the voltage at the “F” terminal (for testing the alternator).
With the ignition switch in the “OFF” position, puIl the connector from the
alternator. Then, measure the voltage at the “L” terminal. If the voltage
battery voltage, the (t) diode is short-circuitd.
, CAUTION
When measuring the’ voltage of the “F” terminal (for testing), be
careful not to let the voltmeter probe contact the rear bracket. If
by chance it does contact it, there’s no problem if it’s immediately
pulled away.
8-18
