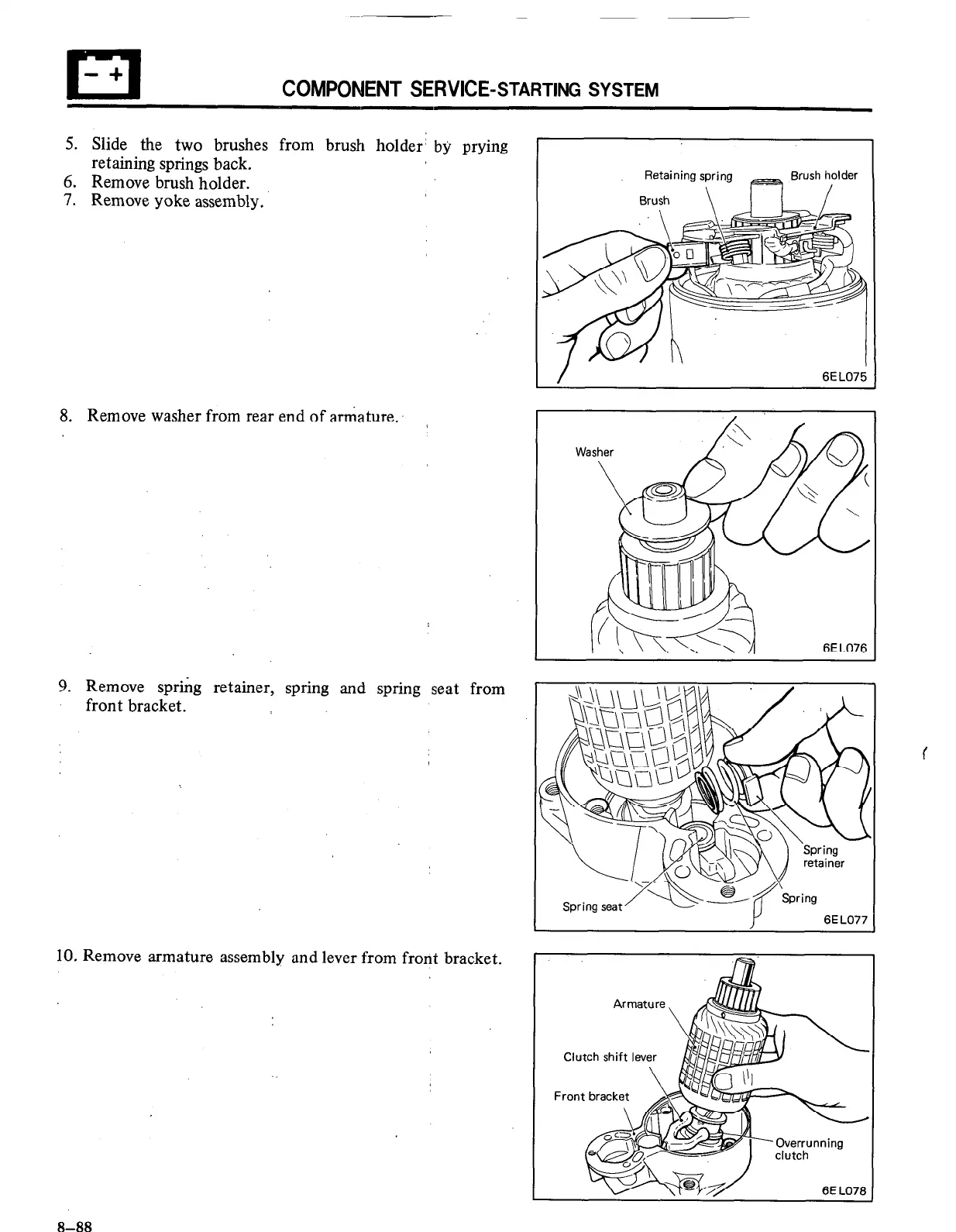

El
-+
COMPONENT
SERVICE-STARTING
SYSTEM
5.
Slide
the
two
brushes
from
brush
holder’
bjr
prying
retaining
springs
back.
6.
Remove
brush
holder.
7.
Remove
yoke
assembly.
8.
Remove
washer
from
rear
end
of
armature.
9.
Remove
spring
retainer,
spring
and
spring
seat
from
front
bracket.
10.
Remove
armature
assembly
and
lever
from
front
bracket.
Retaining
sying
Brush
I
/
6EL075
6E
LO76
Y
6EL077
1
Clutch
shift
lev
clutch
8-88
87
89
