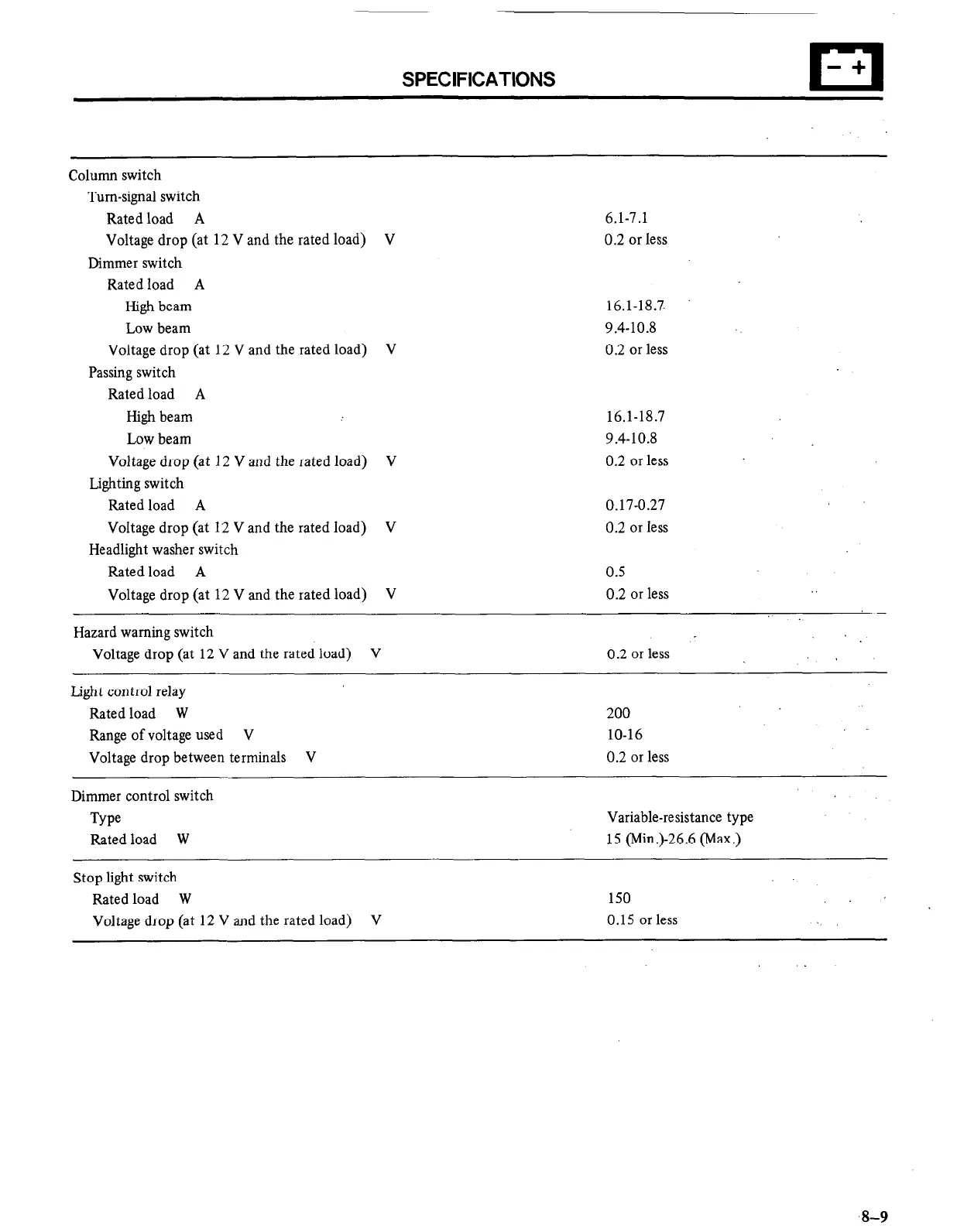

SPECIFICATIONS
III
-+
Column switch
Turn-signal switch
Rated load A
Voltage drop (at 12 V and the rated load)
Dimmer switch
Rated load A
High beam
Low beam
Voltage drop (at 12 V and the rated load)
Passing switch
Rated load A
High beam
Low beam
Voltage drop (at 12 V and the rated load)
Lighting switch
Rated load A
Voltage drop (at 12 V and the rated load)
Headlight washer switch
Rated load A
Voltage drop (at 12 V and the rated load)
V
6.1-7.1
0.2 or less
16.1-18.7.
9.4-10.8
0.2 or less V
16.1-18.7
9.4-10.8
0.2 or less
0.17-0.27
0.2 or less
0.5
0.2 or less
.
Hazard warning switch
Voltage drop (at 12 V and the rated load)
V 0.2 or less
I
Light control relay
Rated load W
200
Range of voltage used V lo-16
Voltage drop between terminals
V 0.2 or less
Dimmer control switch
Type
Variable-resistance type
Rated load W 15 (Min.)-26.6 (Max.)
Stop light switch
..
Rated load W 150
Voltage drop (at 12 V and the rated load)
V
0.15 or less
8-9
