MR TAPCON 230 basic User Manual

7 Functions and settings
106 TAPCON® 230 basic 2117246/02 EN © Maschinenfabrik Reinhausen 2012

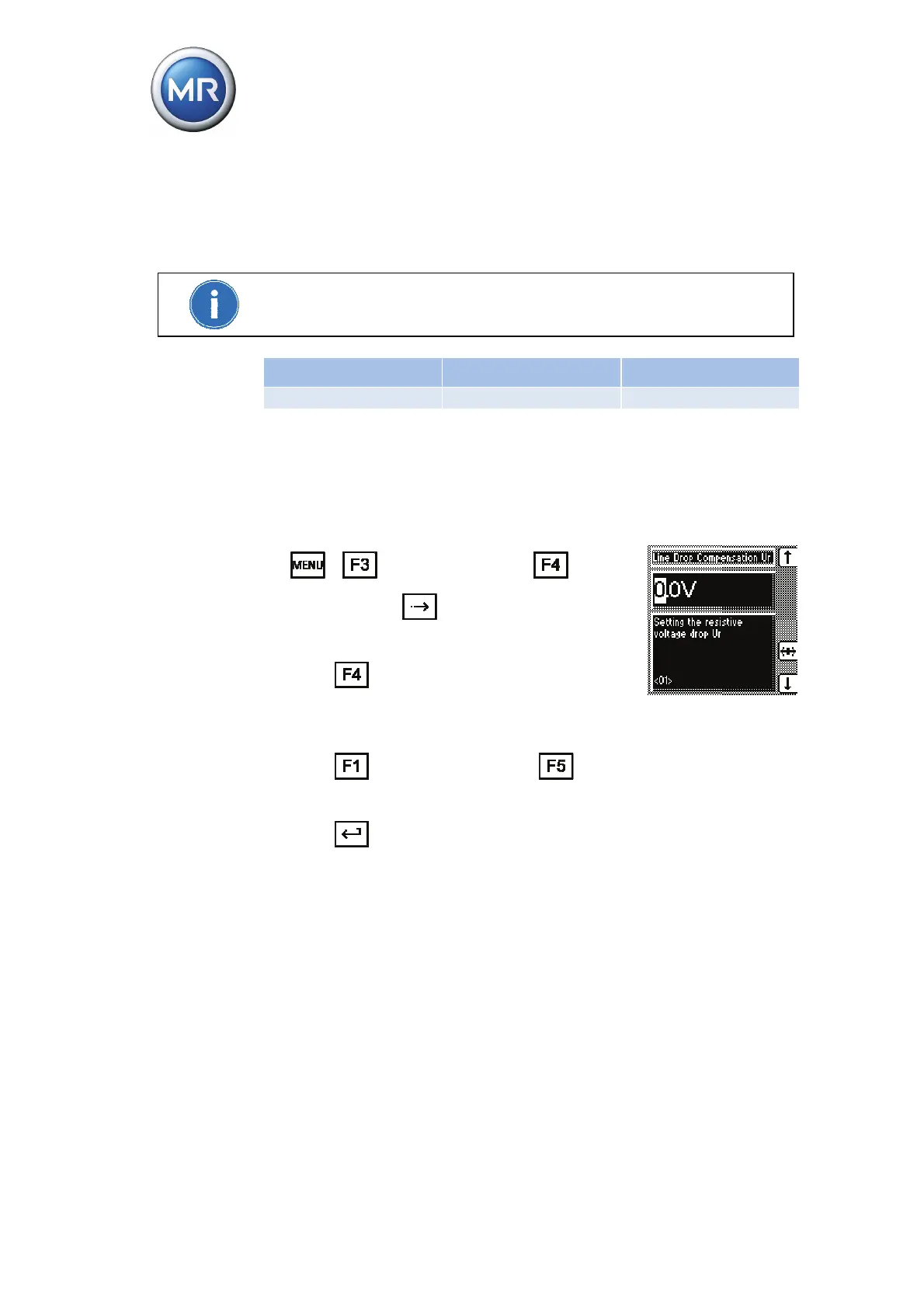

7.3.13.3 Setting the ohmic voltage drop Vr
The compensation effect can be rotated by 180° using the sign (-).
If you do not want to use a method of compensation, you must enter a "0".
Setting range Step size Factory setting
-25 V...25 V 0.1 V 0 V
Table 26 Setting range for ohmic voltage drop Vr line drop compensa-
tion
First you have to select the "LDC" compensation method (page 105).
To set the ohmic voltage drop Vr, proceed as follows:
1. > Control Parameters > Com-
pensation > 1x
.
<01> Line Drop Compensation Vr.
2. Press
to highlight a digit.
The digit position you want is highlighted
and the value can be changed.
3. Press
to increase the value or to
reduce it.
4. Press
.
The ohmic voltage drop Vr is set.
