7 Functions and settings

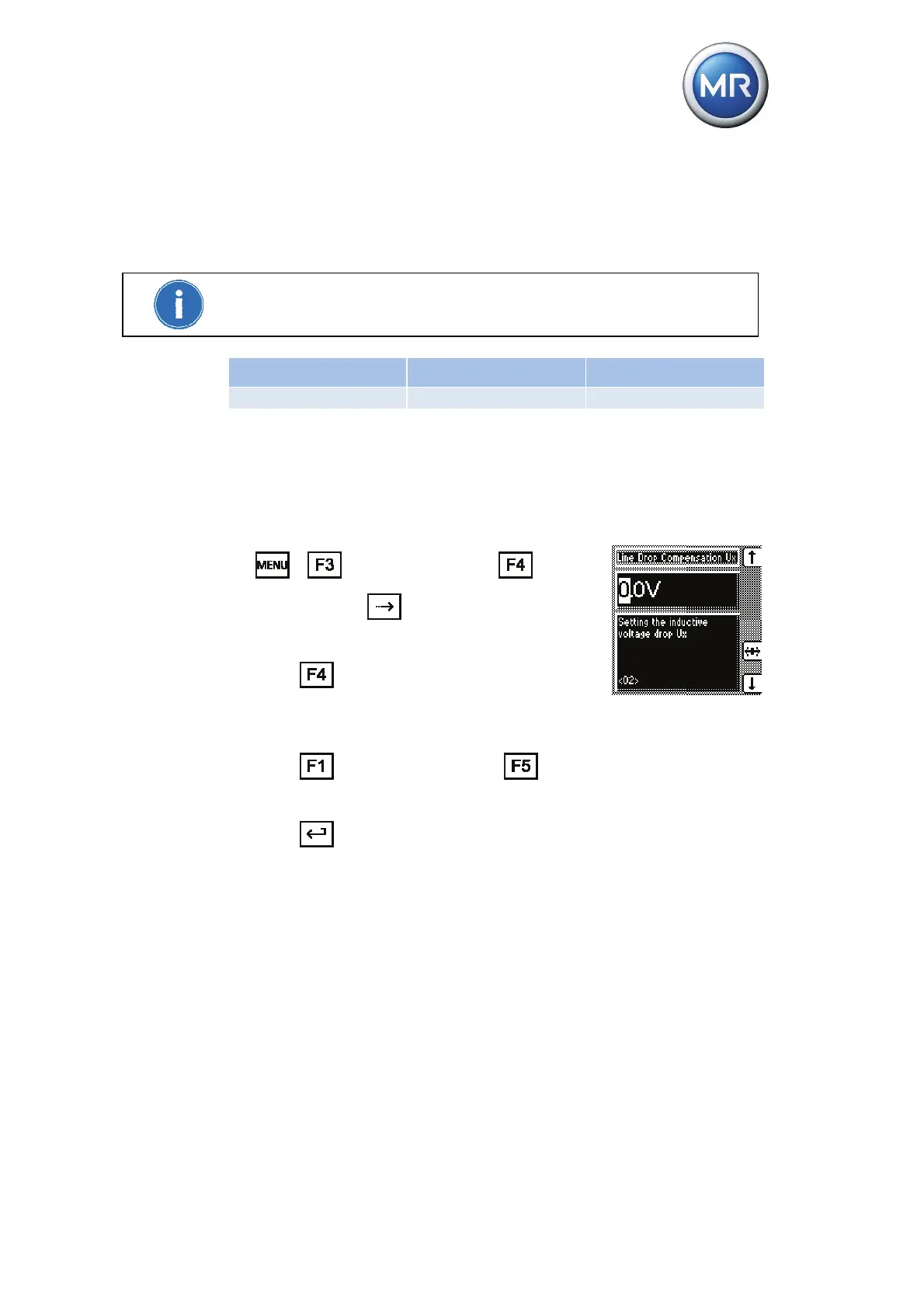

7.3.13.4 Setting the inductive voltage drop Vx

The compensation effect can be rotated by 180° using the sign (-).

If you do not want to use a method of compensation, you must enter a "0".

Setting range Step size Factory setting

-25 V...25 V 0.1 V 0 V

Table 27 Setting range for inductive voltage drop Vx line drop compen-

sation

First you have to select the "LDC" compensation method (page 105).

To set the inductive voltage drop Vx, proceed as follows:

1. > Control Parameters > Com-

pensation > 2x

<02> Line Drop Compensation Vx.

2. Press

to highlight a digit.

The digit position you want is highlighted

and the value can be changed.

3. Press

to increase the value or to

reduce it.

4. Press

The inductive voltage drop Vx is set.
