7.3.13.5 Setting Z compensation
Z compensation can be used for example for minor changes to the phase an-
gle φ. It can also be used for meshed grids. Z compensation is not however
dependent on phase angle φ.
To correctly set the parameters, you need to calculate the voltage increase
(ΔV) taking the current into account.
7.3.13.6 Setting Z compensation
Sample calculation:
ΔV Z compensation setting as %
V
Tr
Transformer voltage in V with current I
V
Load
Voltage on line end in V with current I and on-load tap-changer
in same operating position
I Load current in A
I
N
Nominal current in A of selected current transformer connection
on device: 1 A or 5 A
k
CT
Current transformer ratio

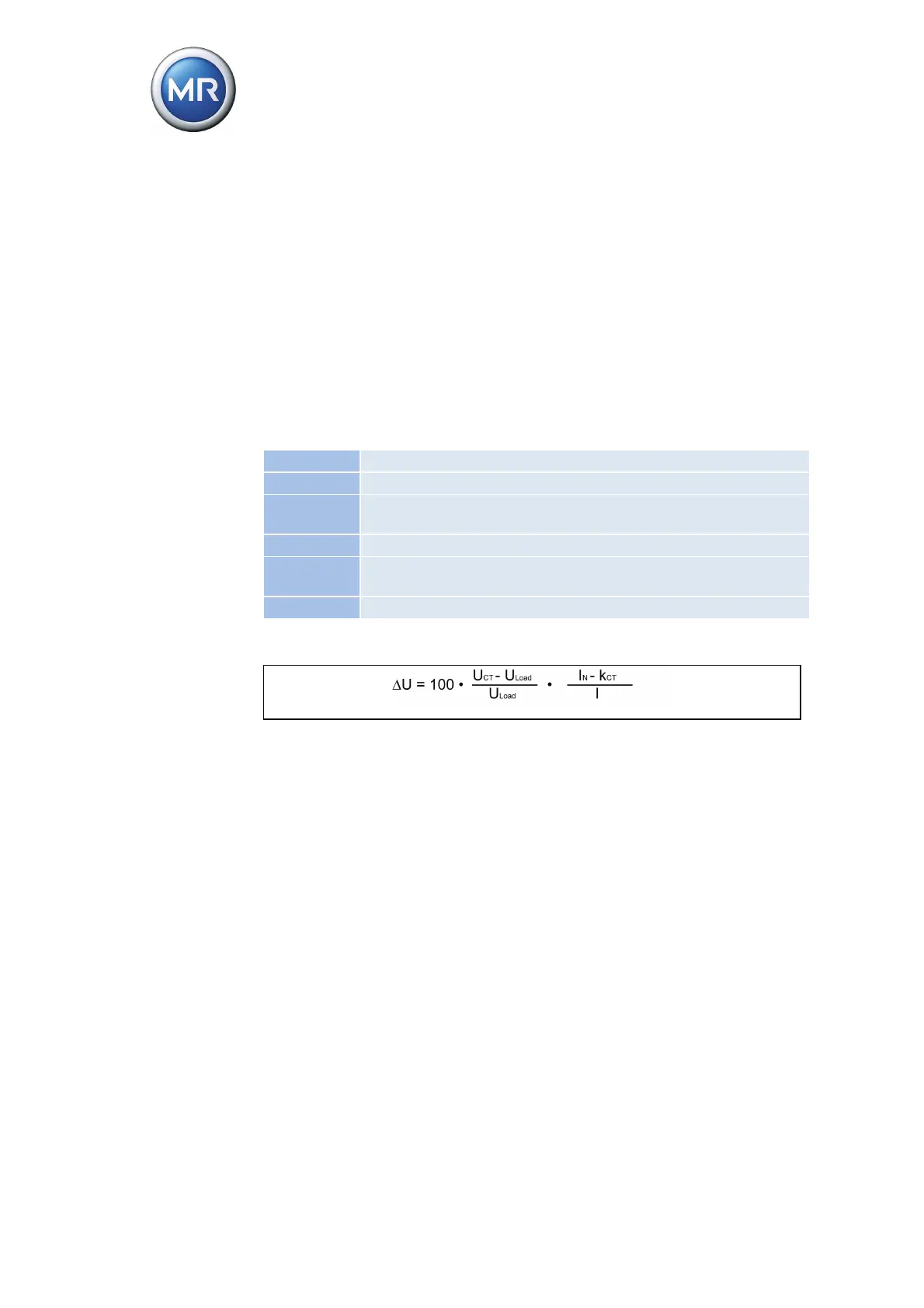

Formula for calculating the voltage increase ΔV:
