5 Mounting

 Signal lines must be routed in a shielded cable.

 The individual conductors (outgoing conductors/return conductors) in the

cable core must be twisted in pairs.

 The shield must be fully (360º) connected to the voltage regulator or a

nearby ground rail.

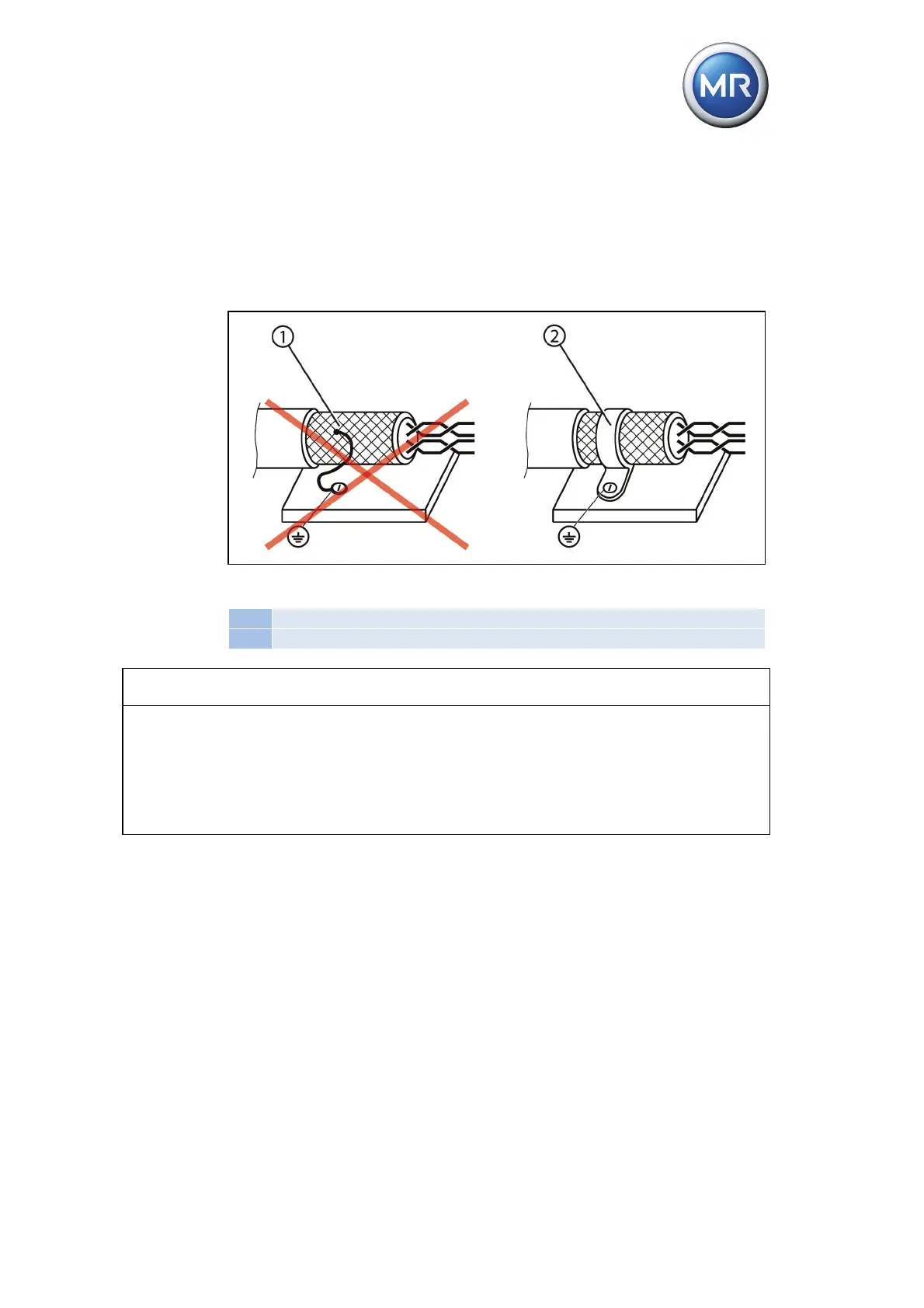

Figure 20 Recommended connection of the shielding

1 Connection of the shielding using a "pigtail"

2 Thorough connection of the shielding

NOTE

Reduced effectiveness of the shielding.

Using "pigtails" may considerably reduce the effectiveness of the

shielding.

► Connect shield to cover all areas.

5.4.2.3 Wiring requirement in control cabinet

Note the following when wiring in the control cabinet:

 The control cabinet for fitting the device must be prepared in accordance

with EMC requirements:

 functional division of control cabinet (physical separation)

 constant potential equalization (all metal parts are joined)

 line routing in accordance with EMC requirements (separation of lines

which cause interference and those susceptible to interference)

 optimum shielding (metal housing)
