MR TAPCON 230 basic User Manual

5 Mounting
52 TAPCON® 230 basic 2117246/02 EN © Maschinenfabrik Reinhausen 2012
 overvoltage protection (lightning protection)
 collective grounding (main grounding rail)
 cable bushings in accordance with EMC requirements
 any contactor coils present must be interconnected
 The connection cables must be laid in contact with the grounded metal
housing or in metallic cable ducts with a ground connection.
 Signal and power/switching lines should be laid in separate cable ducts.
 The device is grounded using the grounding screw fitted to the outside of
the housing with a line lead (cross-section min. 4 mm²) (see diagram be-
low). The device's ground connection is a functional ground and serves to
dissipate interfering currents.

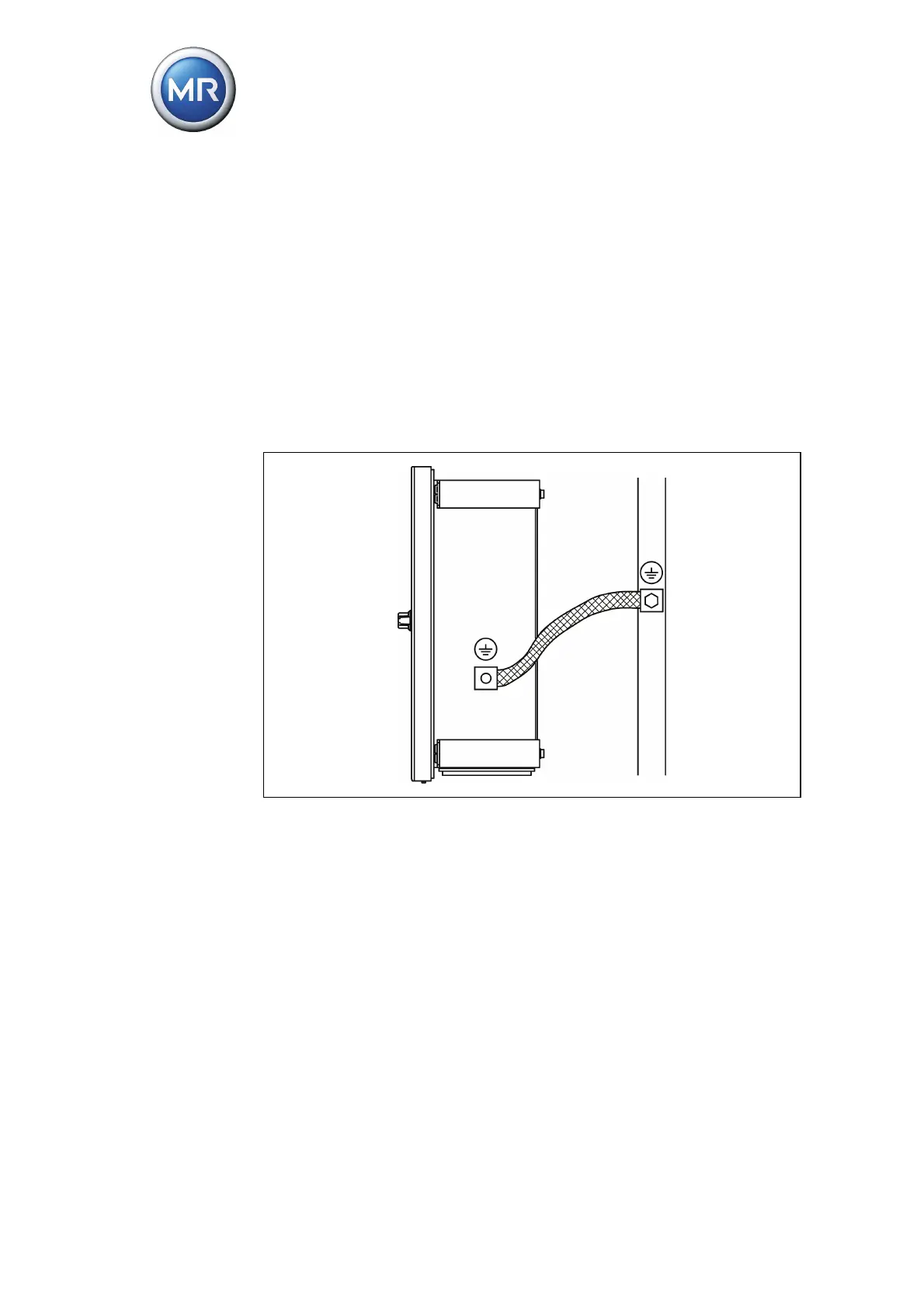

Figure 21 Ground connection on outside of device
