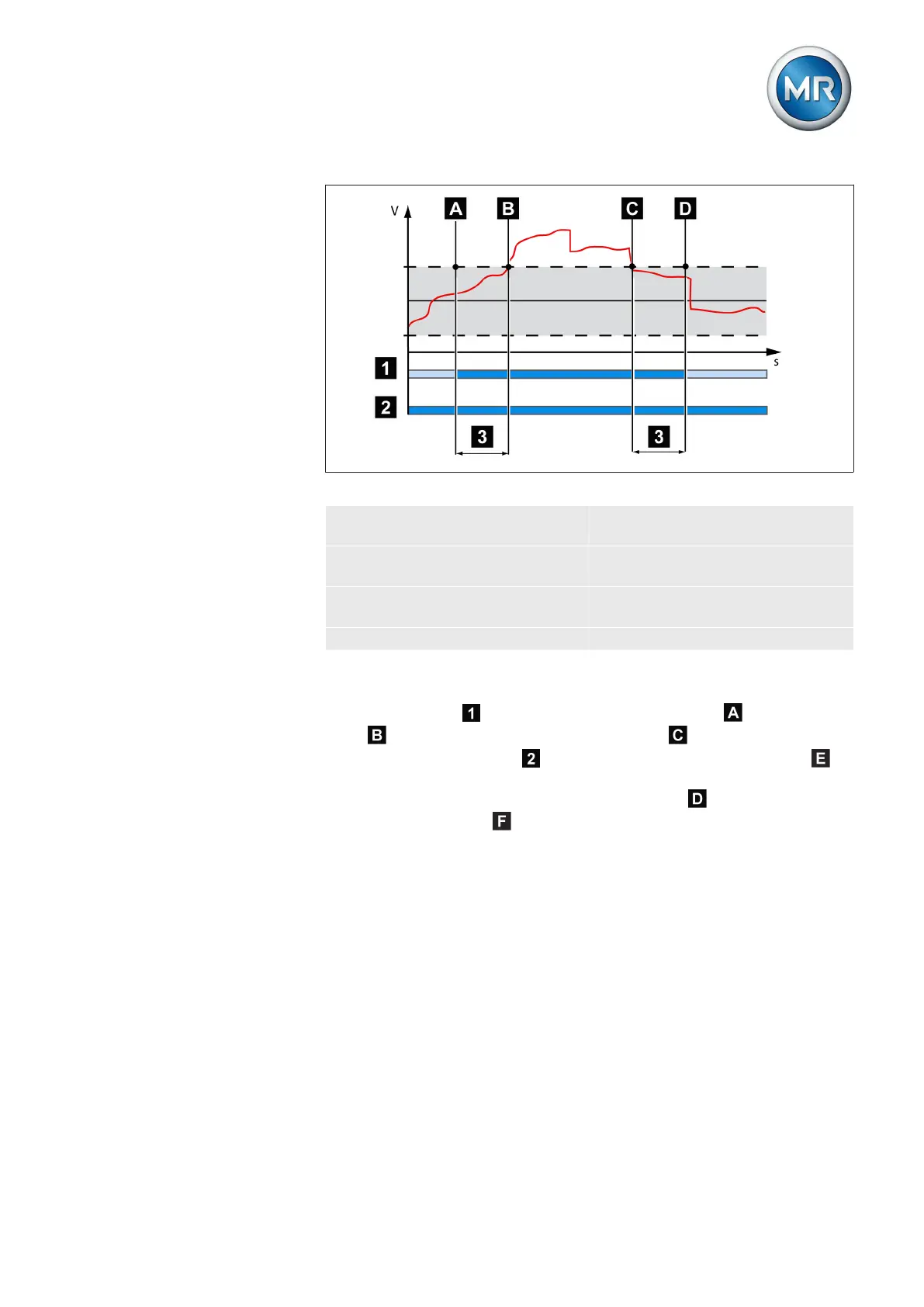

Figure 68: Event duration (more than 5 minutes)
1 Saving at high resolution B Event occurs (voltage departs
from bandwidth)
2 Saving at low resolution C Event occurs (voltage returns
to bandwidth)
3 Run-in time/overrun time; du-
ration: 10 seconds
D End of event's overrun time
A Start of event's run-in time
Event lasting more than 5 minutes
The high-resolution data are first recorded 10 seconds before the
event . If the event is still active after 5 minutes , the data continues to
be saved at a low resolution
. If the voltage returns to the bandwidth ,
this is considered a new event. The high-resolution recording of new data
commences at the start of the 10-second run-in time
and ends after the
10-second overrun time .
