6 Functions and settings
Maschinenfabrik Reinhausen 2014108 2374092/04 ENTAPCON® 260

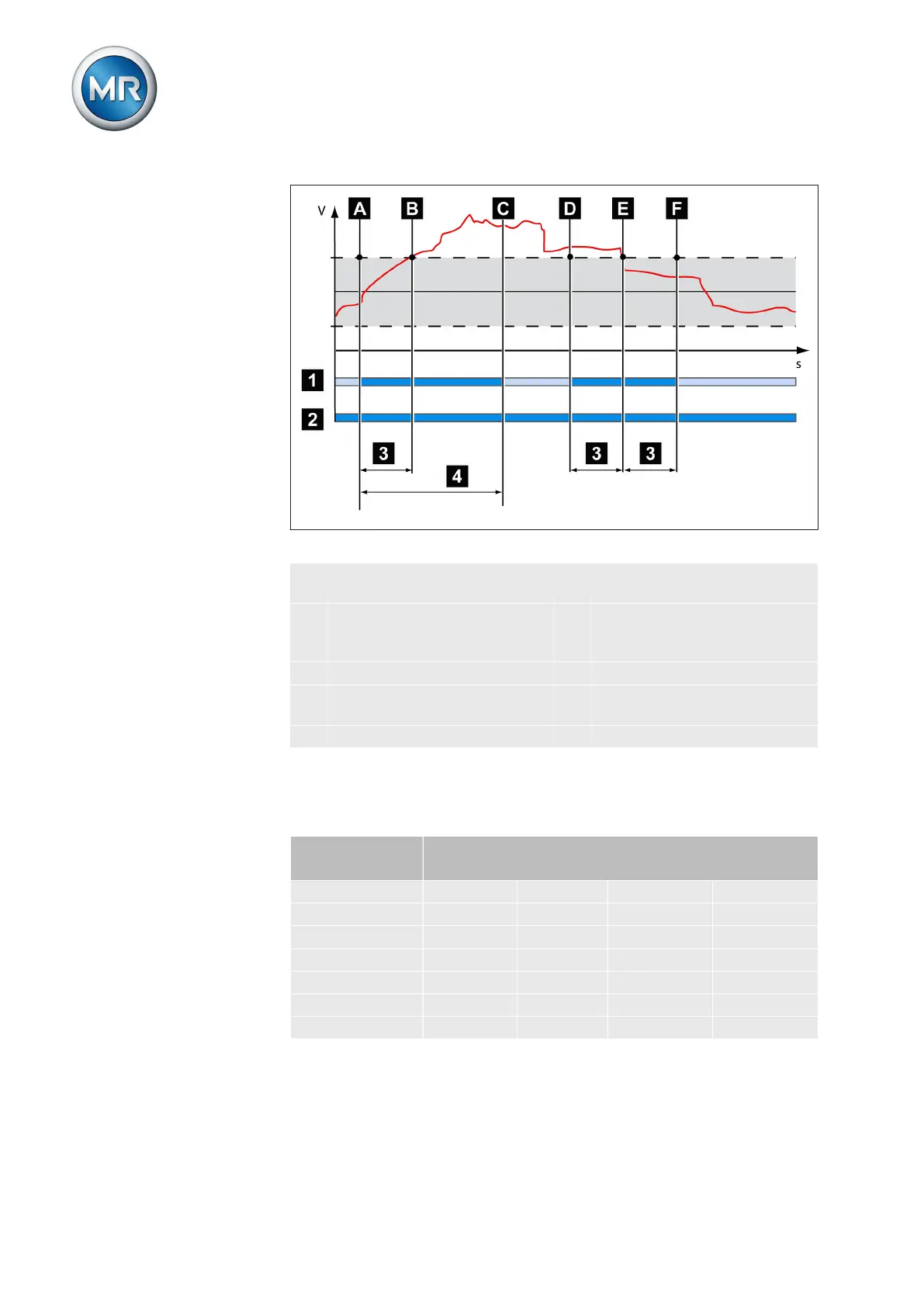

Figure 69: Event duration (more than 5 minutes)
1 High-resolution recording B Event occurs (voltage departs
from bandwidth)
2 Low-resolution recording C End of high-resolution record-
ing; start of low-resolution re-
cording
3 Duration: 10 seconds D Start of event's run-in time
4 Duration of high-resolution re-
cording: 5 minutes
E Event occurs (voltage returns
to bandwidth)
A Start of event's run-in time F End of event's overrun time
The table below shows the memory time. Depending on the average value
interval and the size of the event memory, it is a maximum of 401 days.
Average value
interval
Size of event memory
256 kB 512 kB 1024 kB 2048 kB
1 s 10 d 9 d 8 d 7 d
2 s 20 d 19 d 17 d 14 d
4 s 40 d 38 d 35 d 29 d
10 s 100 d 96 d 89 d 73 d
20 s 201 d 193 d 178 d 147 d
40 s 401 d 386 d 356 d 295 d
Table 29: Memory time of measured value memory
