3 Product description
Maschinenfabrik Reinhausen 201424 2374092/04 ENTAPCON® 260

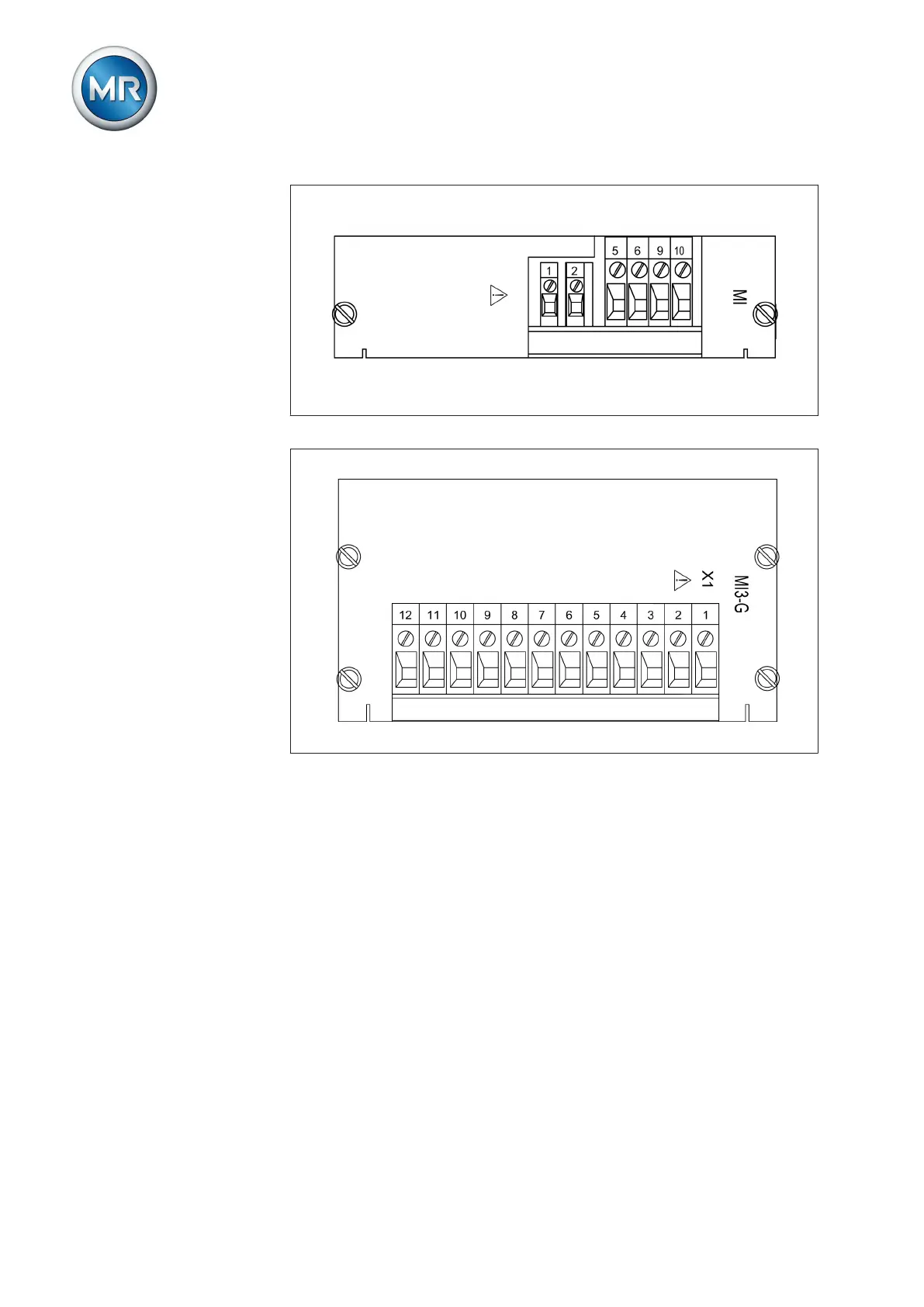

Figure 11: MI-1 card
Figure 12: MI3G card
Digital inputs and outputs
To record and output digital signals, the device may be equipped with the
following assemblies:
▪ IO card
▪ UC card
IO card
The IO card contains 9 digital inputs and 8 digital potential-free outputs. 5
outputs take the form of change-over contacts.
3.5.5.3
