3 Product description
Maschinenfabrik Reinhausen 2014 252374092/04 EN TAPCON® 260

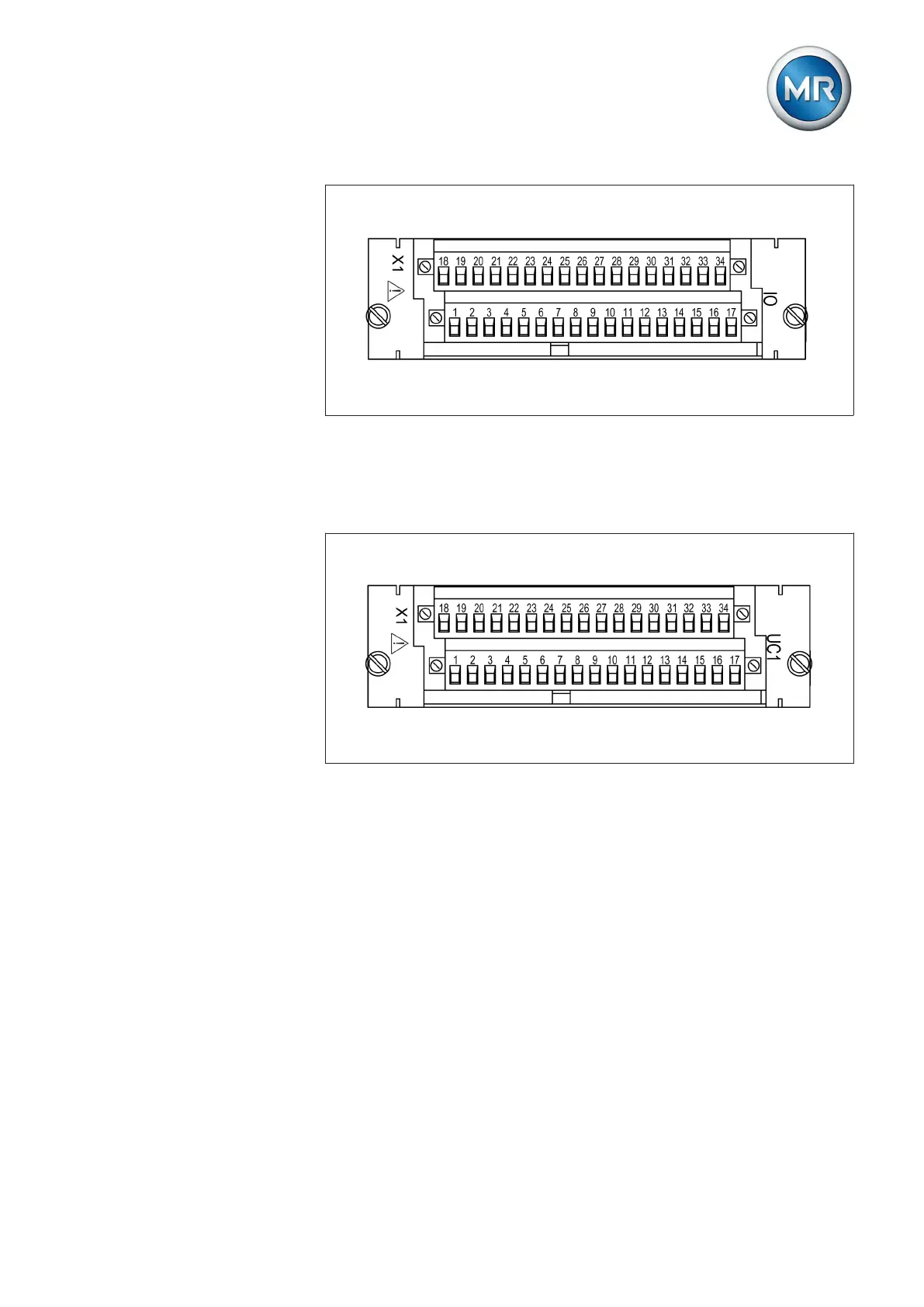

Figure 13: IO card
UC card
The UC card contains 10 digital inputs and 10 digital potential-free outputs.
The device can be equipped with several UC cards (UC1, UC2...).
Figure 14: UC1 card
Analog inputs and outputs
To record and output analog signals, the device may be equipped with the
following assemblies:
▪ AD card
▪ AD8 card
▪ AN card
AD card
The analog input card has 1 input or with an extension card 2 inputs that can
record the following analog signals:
▪ 0...±10 V
▪ 0...±10 mA
▪ 0...±20 mA
