3 Product description
Maschinenfabrik Reinhausen 201426 2374092/04 ENTAPCON® 260
▪ Resistance measurement (50...2 000 Ω)

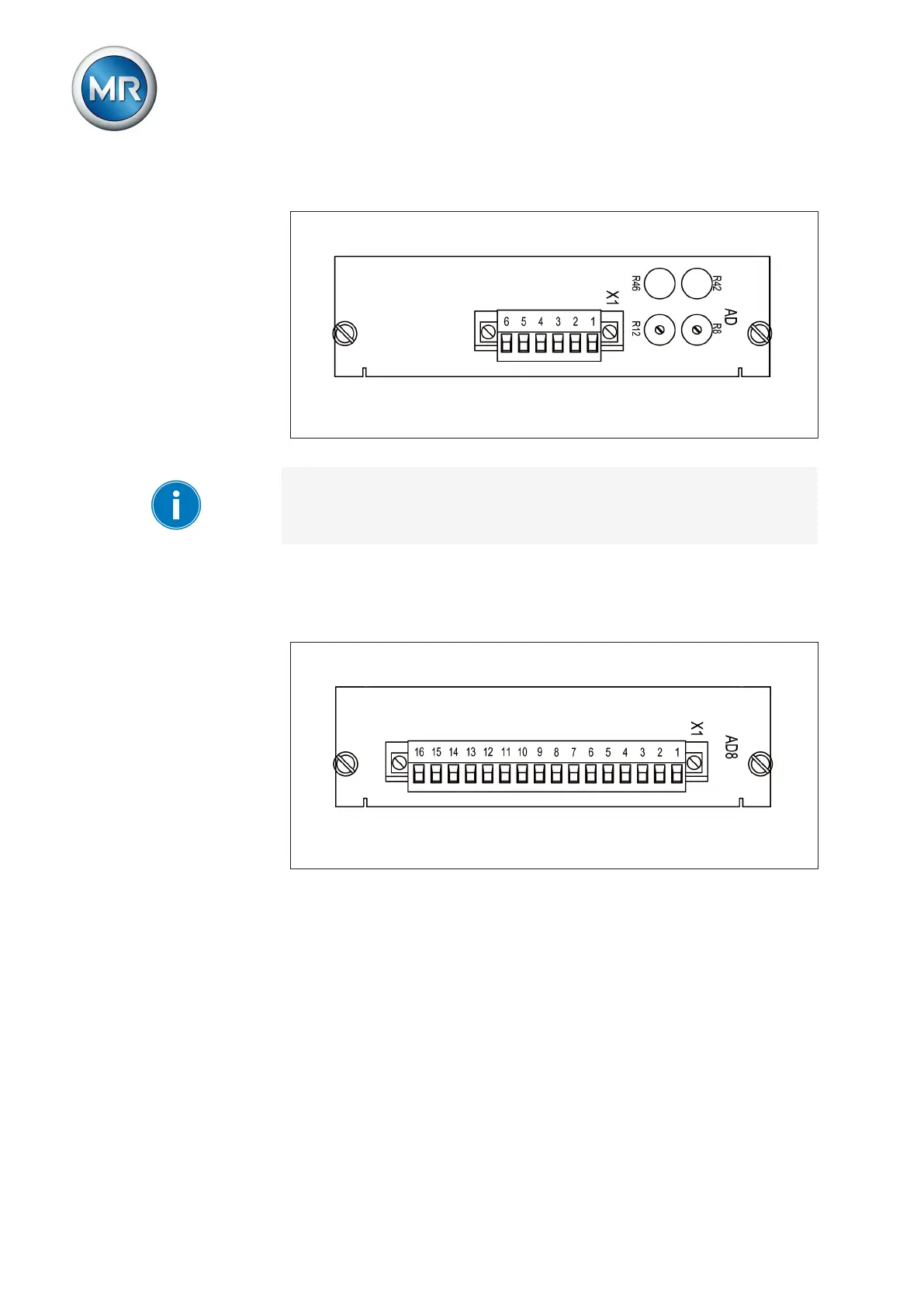

Figure 15: AD card
Only use the R8/R12 and R42/R46 rotary potentiometers to calibrate the re-
sistance measurement.
AD8 card
The analog input card has 8 inputs that can record the analog signals
(4...20mA).
Figure 16: AD8 card
AN card
Depending on configuration, the AN card provides 2 analog outputs or with
an extension module AN1 a total of 4 analog outputs. The following signal
types are supported:
▪ 0...±20mA
▪ 0...±10mA
▪ 0...±1mA
▪ 0...±10V
