7 Measurement data memory EFA-200/-300
7-8
3. Press ENTER to confirm your selection.
The MEM MATRIX menu is displayed.

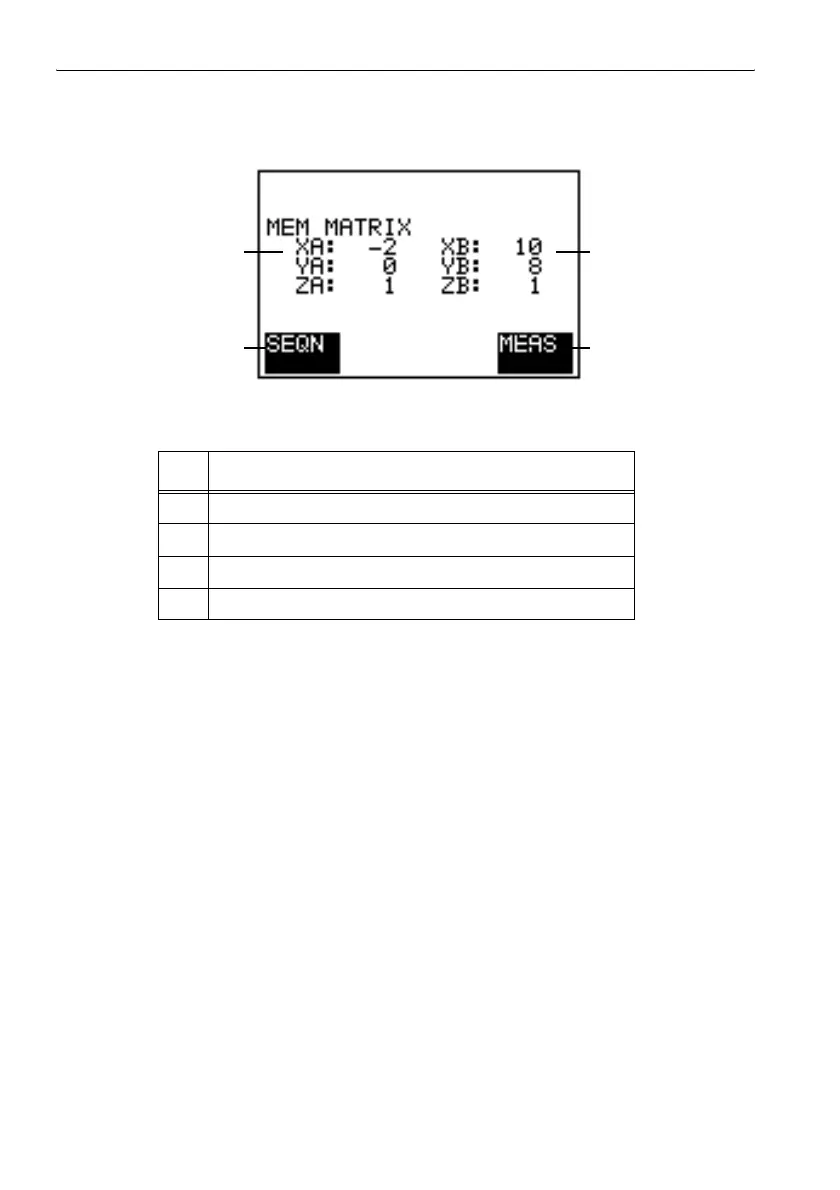

Figure 7-3 Entry screen for defining the limiting coordinates
Changing the range limits
Entering the coordinates of limits “A” and “B”
Note: Each coordinate can have a value between –99 and +999.
✓ The MEM MATRIX menu is open.
1. Use the UP/DOWN keys to select the coordinate.
The selected coordinate is highlighted in black.
2. Press ENTER to activate the coordinate entry fields.
The first entry field is highlighted in black.
3. Use the UP/DOWN keys to define a value.
4. Press the NEXT key to move to the next entry field.
5. Repeat steps 3 and 4 for the remaining entry fields.
No. Function
1 Coordinates of limit “A”
2 Coordinates of limit “B”
3 Display field F4: Switch to matrix measurement screen
4 Display field F3: Switch to entry of ranking order
Table 7-3 Elements of the input screen for determining the limitation points
