4. Attach the 2BRI Label to the specified position on the 084M-B1/080E-B1/008E-B1/000E-B1 PCB.
084M-B1/080E-B1/008E-B1
/
000E-B1 PCB
Nylon-Spacers
J3
J1
Metal-Spacer
2BRI Label
2BRIDB-C1 PCB
Screw
Screw

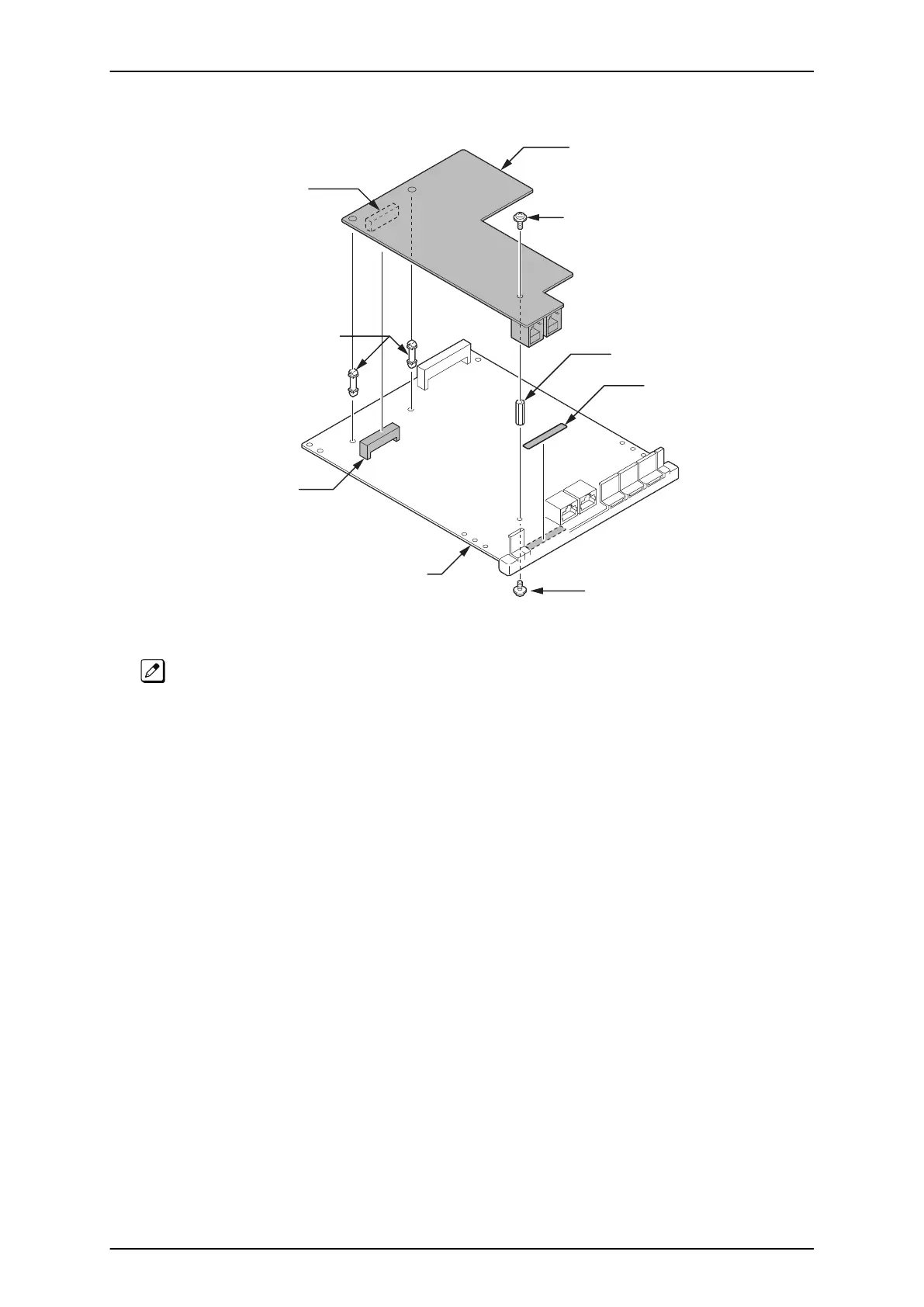

Figure 2-65 Installing the 2BRIDB-C1
The 2BRIDB-C1 cannot be mounted on the 1PRIU-C1 PCB.
ISSUE 4.1 (R5.1) SL1100
Hardware Manual 2-43
