Chapter 2 - Blade Installation and Startup
Chapter 2 2 - 33
2.4.4.1 Installing the VMDB Daughter Board:
1. Included with the VMDB are four plastic spacers. Install the plastic spacers onto the VMDB.
Make sure to attach the spacers so that they extend out on the side of the daughter board
which has the CN1 connector.
2. Position the VMDB’s CN1 connector over the CN4 connector on the CCPU blade. Press the
boards together, ensuring the plastic spacers lock in place.
3. Insert the compact flash card into the CN2 slot.
● The LED1 status light will be on steady when a card is installed.

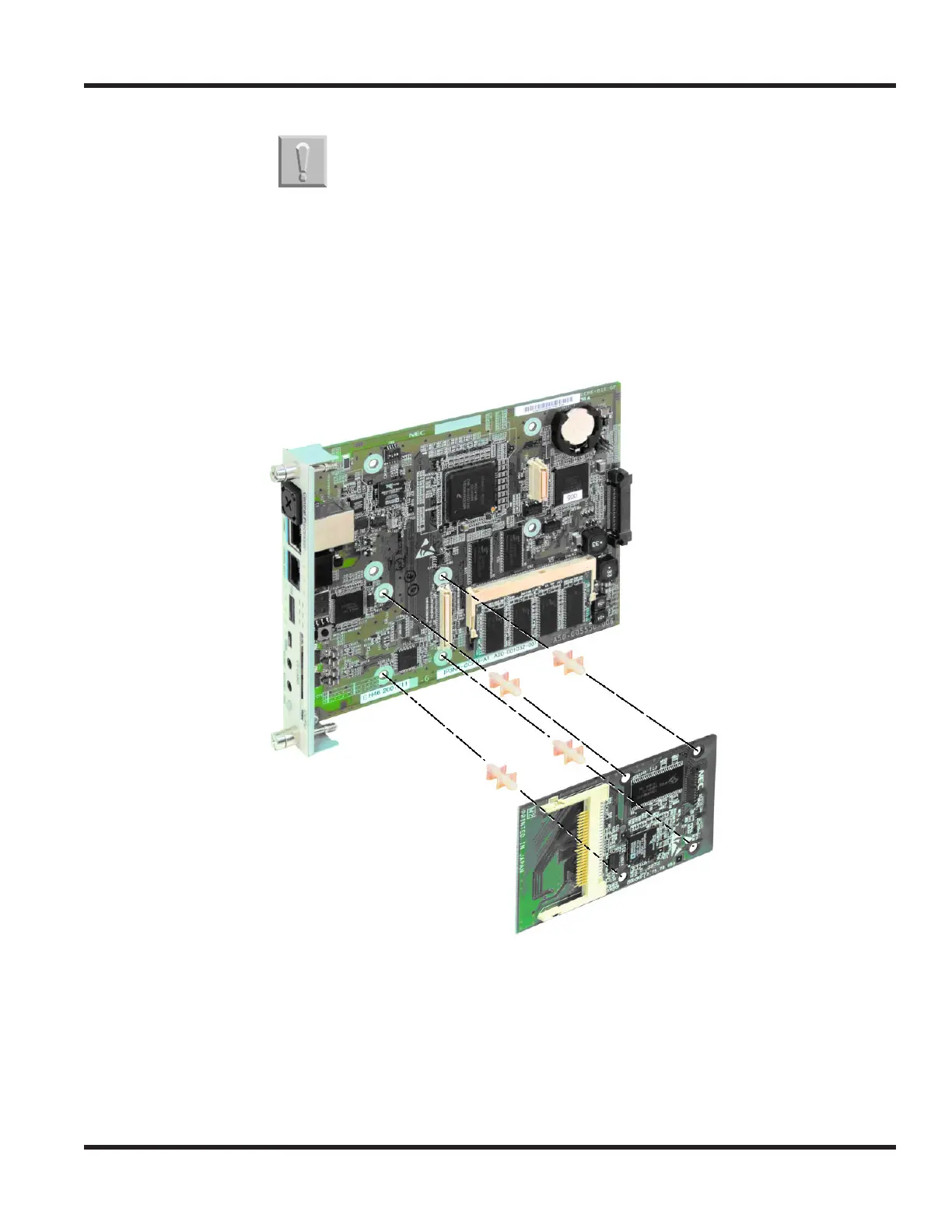

Figure 2-14: VMDB DAUGHTER BOARD INSTALLATION
• Do not remove or install this daughter board with the
power on. In addition, do not insert/remove the IntraMail
compact flash with the system powered up as it could corrupt
the system files.
