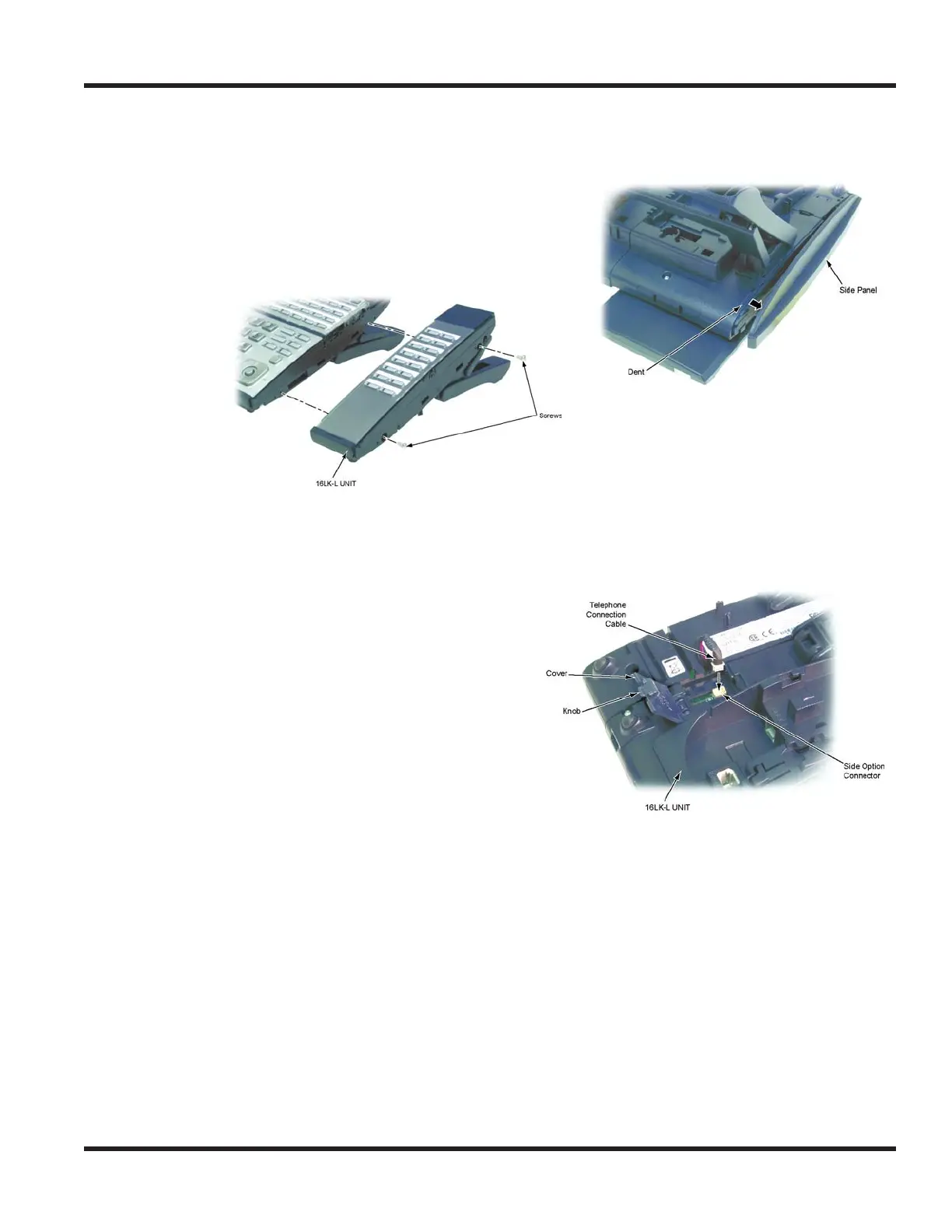

4.15.2.1 Installing the 16-Button DLS:
1. Unplug any cables from the keyset (line cord, LAN cable, power adapter).
2. Remove the side panel from the right-hand side
of the terminal. Hook a finger on the hollow
indent on the back of the terminal (near the top)
and gently pull off the panel.
3. Connect the adapter so the side of the terminal
aligning the tabs up.
4. Secure the adapter with the two screws provided.
5. Turn the terminal upside down.
6. Open the panel located on the bottom
of the terminal and connect the cable
from the 16LK adapter.
7. Attach the single leg provided to the
bottom of the DLS. The plastic notch on
the leg is placed into the rectangular
opening on the bottom of the DLS.
Then slide the leg back until it clicks
into place.
● Adjust the leg height as required.
● To remove the leg, press on the
locking tab as the base of the leg
and slide the leg forward.
8. Turn the terminal right-side up and reconnect any required cables.
