4 - 88 Chapter 4
Chapter 4 - Terminals and Optional Equipment
4.20.3 Removing/Attaching the Legs
When necessary, you may need to remove the terminal legs. The process is the same whether it’s for a full
leg stand (as with the terminals) or a single leg (as with the 16-Button DLS).
1. With the equipment face down and the LCD positioned away from you, press the locking tabs down
while sliding the leg unit back.

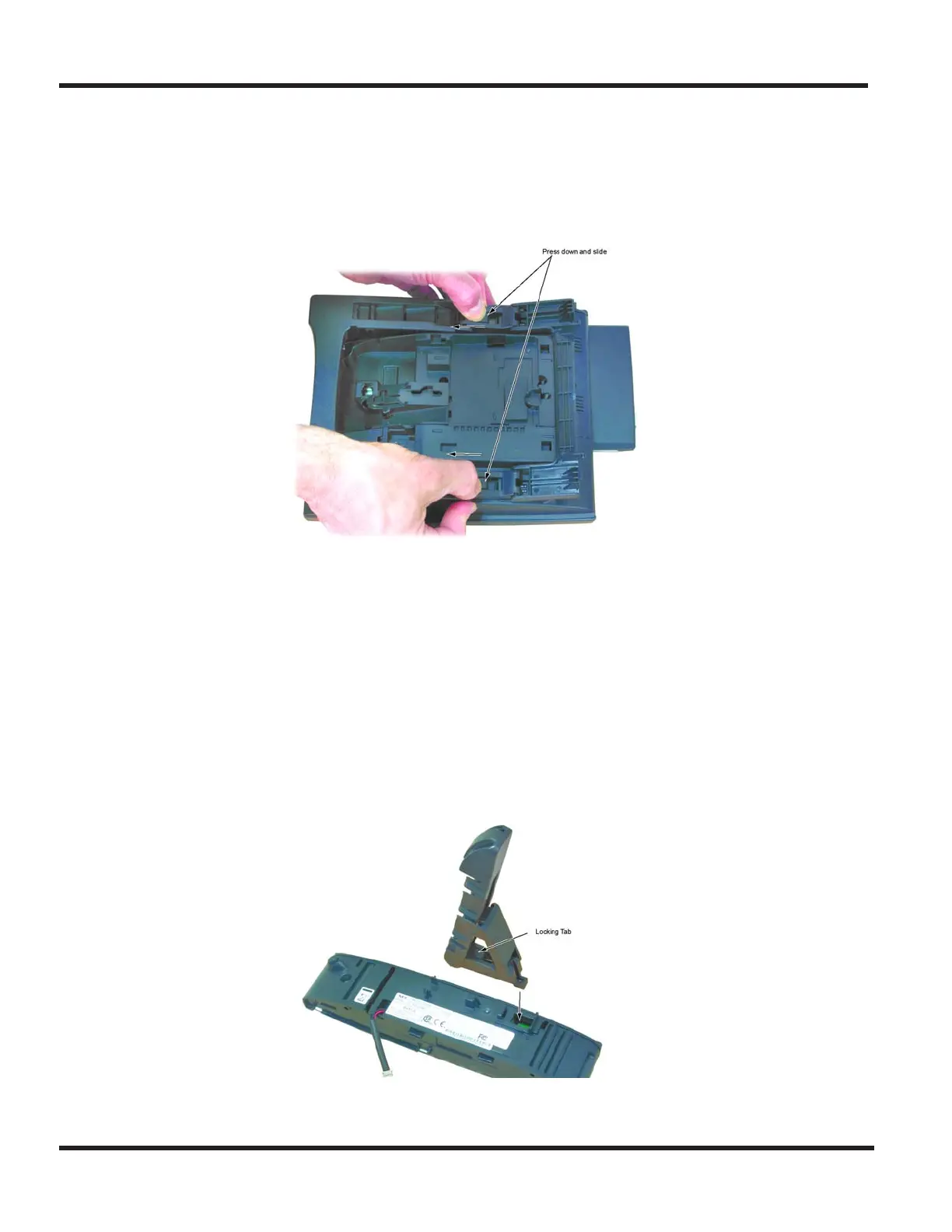

Figure 4-49: REMOVING THE TERMINAL LEG(S)
4.20.4 Attaching the Legs
When necessary, you may need to attach the terminal legs. The process is the same whether it’s for a full
leg stand (as with the terminals) or a single leg (as with the 16-Button DLS).
1. With the equipment face down and the LCD positioned away from you, hold the legs verticallying
positioning theleg connectors toward the terminal base.
2. Place the leg attachment connectors on the equipment base and slide forward over the base receptors
until the leg(s) click into place.
Figure 4-50: ATTACHING THE TERMINAL LEG(S)
