Chapter 4 - Terminals and Optional Equipment
Chapter 4 4 - 85
SECTION 4-19
TERMINAL LABELING
4.19.1 Labeling Your Terminal (Figure 4-45 - Figure 4-46)
The UX5000 terminals can be easily labeled by removing the clear plastic faceplate on the terminal. These
labels can be printed by hand, typewriter, or by using the UX5000 Labelmaker program. Labels for this are
on 8 1/2 x 11” paper, which allows for easy printing by any printer - dot matrix, laser, etc.
4.19.1.1 Removing the Faceplate:
1. At the bottom of each of the faceplates, you’ll notice a small notch in the faceplate plastic. Use
this notch to help lift the faceplate up.
● There may be 1 or 2 faceplates depending on the type of terminal used.

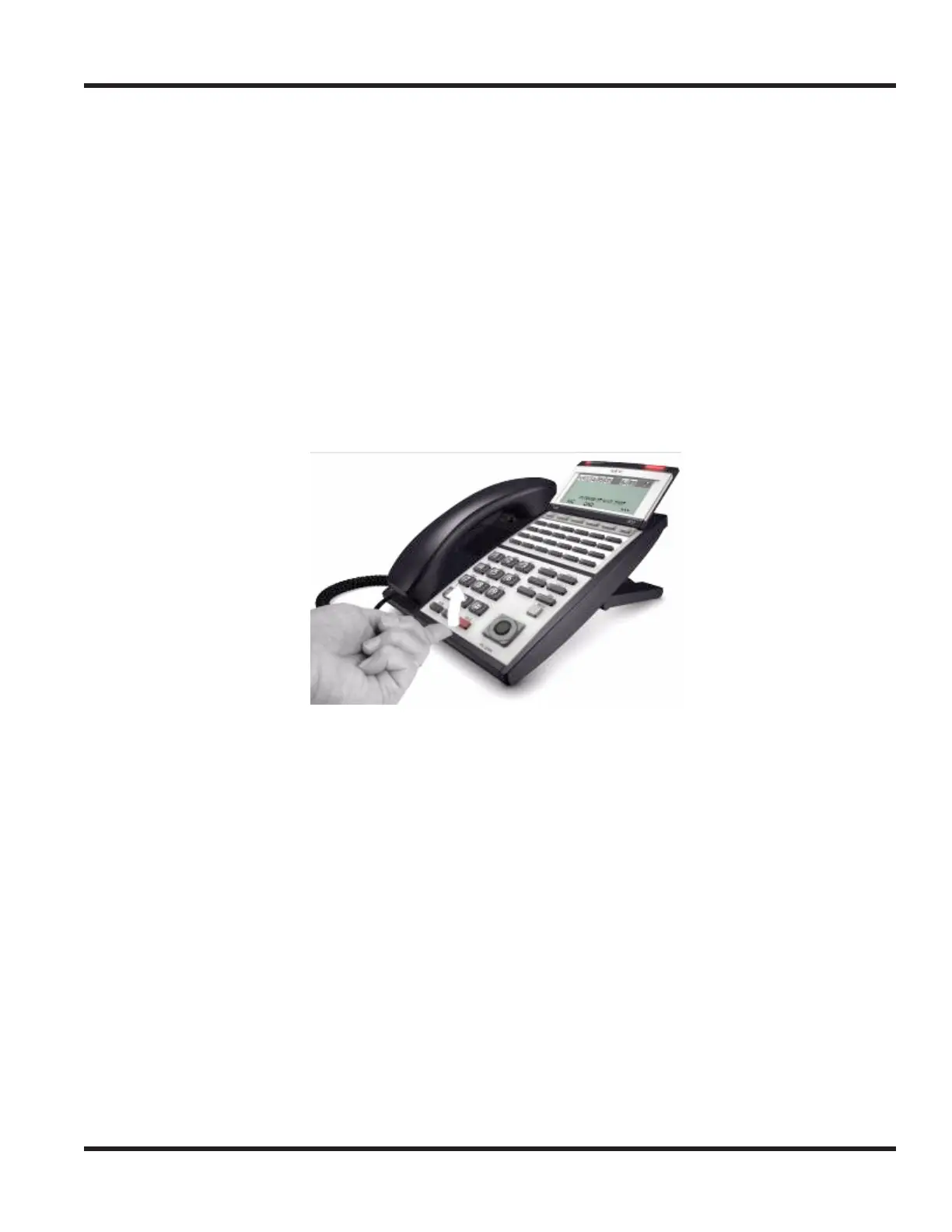

Figure 4-45: REMOVING THE FACEPLATE
